Oil Pump: Service and Repair

Oil Pump

Removal
1. Remove the timing drive components.
2. Remove the oil pump screen cover and tube.

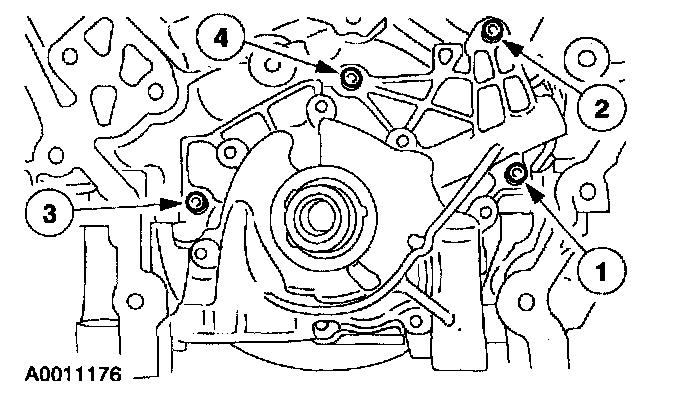

3. Remove the bolts in the indicated sequence and remove the oil pump.

Installation





1. Position the oil pump and install the bolts in the sequence shown.
2. Install the oil pump screen cover and tube.
3. Install the timing drive components.
