Oil Pick Up/Strainer: Service and Repair

Oil Pump Screen and Pickup Tube

Removal
1. Remove the oil pan.

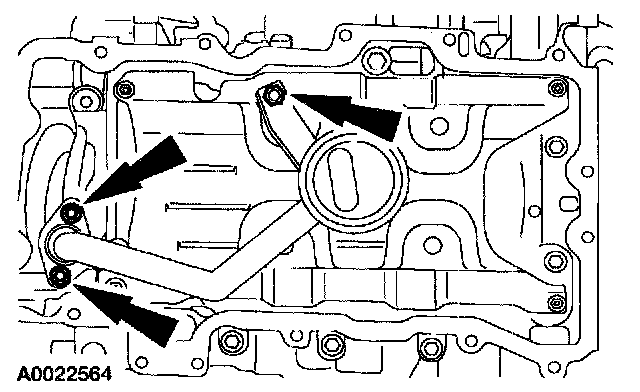

2. Remove the nut, bolts and the oil pump screen and pickup tube.

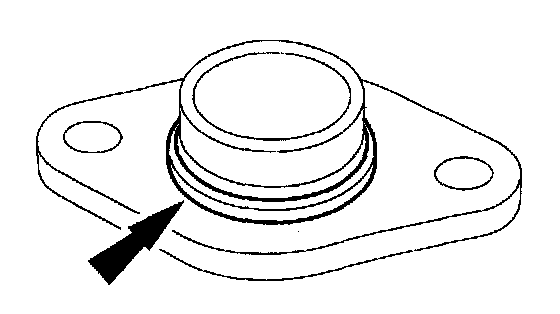

3. Remove and discard the O-ring seal.

Installation





1. install a new O-ring seal and lubricate with clean engine oil.





2. Install the oil pump screen and pickup tube.

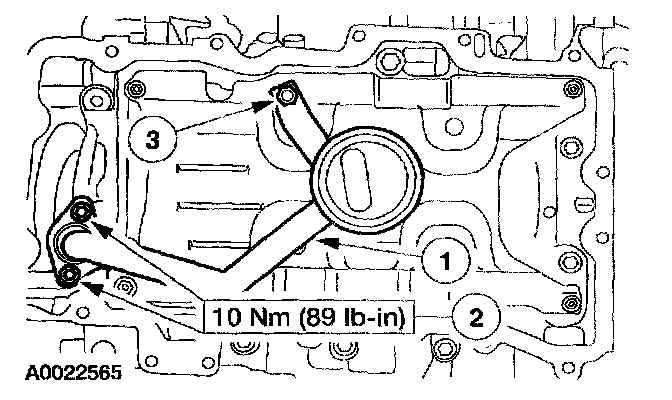

1 Position the oil pump screen and pickup tube.
2 Install the bolts.
- 3Install the nut.
- Tighten the nut in two stages.
- Stage 1: Tighten to 5 Nm (44 in. lbs.).
- Stage 2: Tighten 45 degrees.
3. Install the oil pan.
