Engine Mount: Service and Repair

Engine Support Insulators-Front, RH

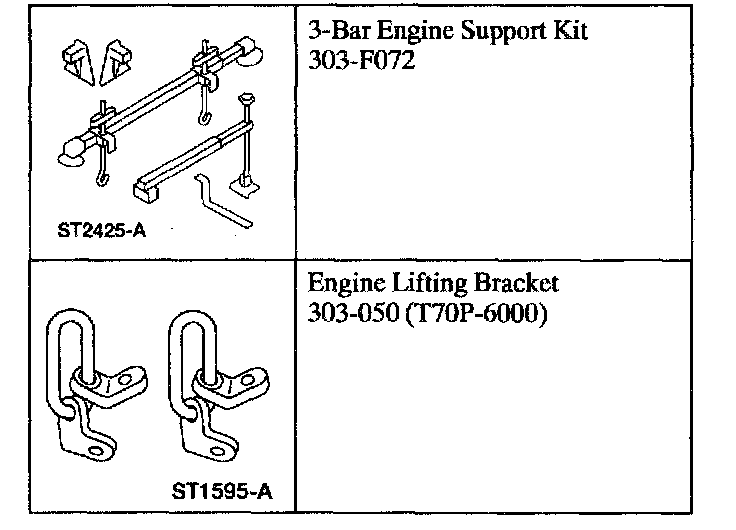

Special Tool(s)

Removal and Installation

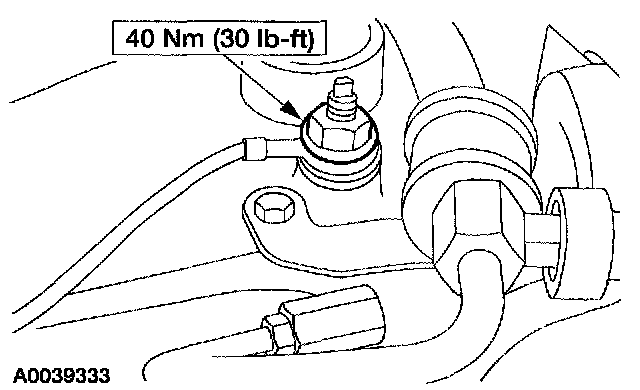

1. Remove the engine ground wire.

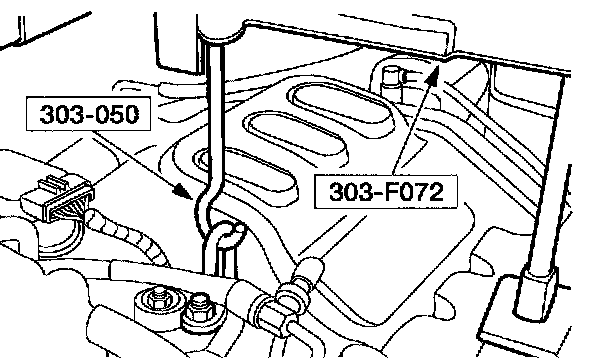

2. Using the special tools, support the engine.

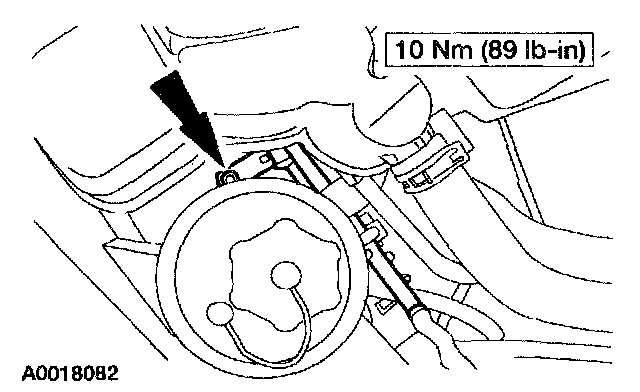

3. Remove the A/C line bracket bolt and position the A/C lines out of the way.

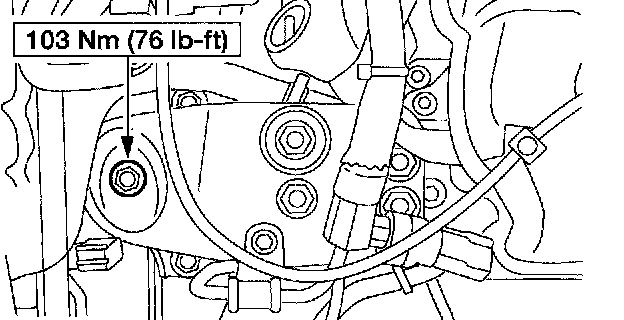

4. Remove the engine support insulator bolt.





5. Remove the engine support tool.

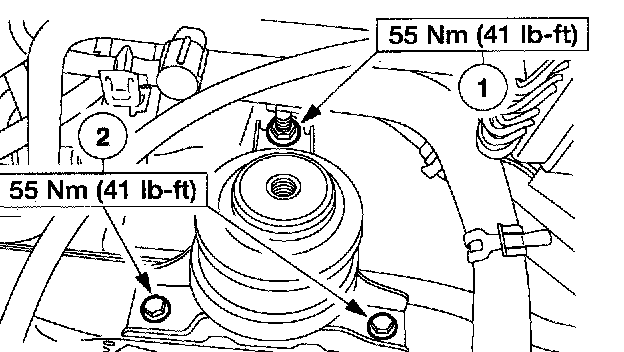

1 Remove the nut.
2 Remove the bolts and insulator.
6. To install, reverse the removal procedure.
