With Tensioner

Water Pump Belt-3.0L (4V) with Tensioner

Removal and Installation





1. Remove the nuts and the engine appearance cover.

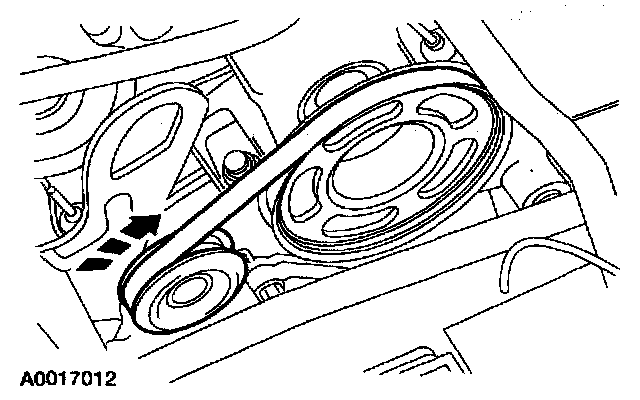

2. Rotate the drive belt tensioner clockwise and remove the water pump belt.
3. To install, reverse the removal procedure.
