Vibration Damper

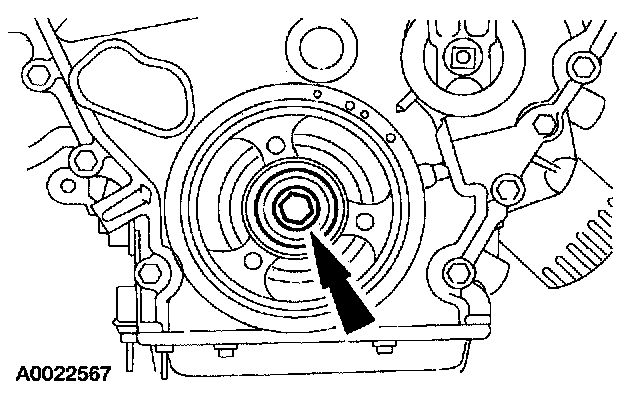

Install the crankshaft vibration damper washer and tighten the bolt in four stages.
- Stage 1: Tighten to 120 Nm (89 ft. lbs.).
- Stage 2: Loosen one full turn (360 degrees).
- Stage 3: Tighten to 50 Nm (37 ft. lbs.).
- Stage 4: Tighten to 90 Nm (66 ft. lbs.).
