Crankshaft Pulley

Crankshaft Pulley

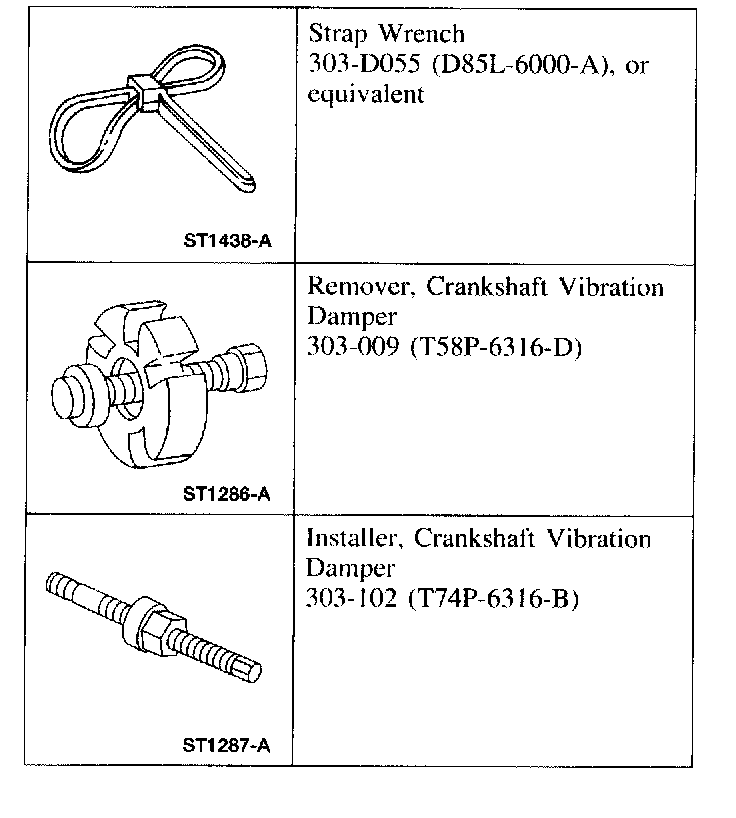

Special Tool(s)

Removal and Installation
1. Remove the accessory drive belt.

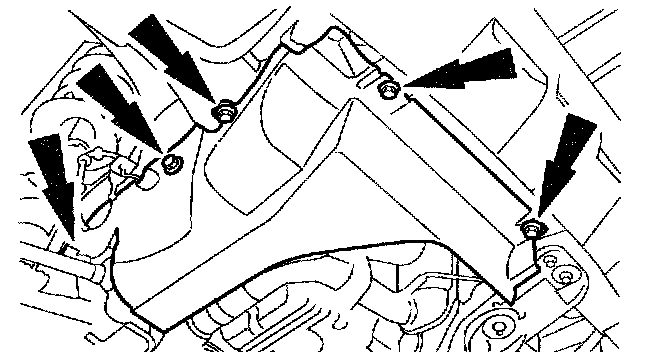

2. Remove the splash shield.





3. Install the special tool.





4. Remove the crankshaft pulley bolt and washer.

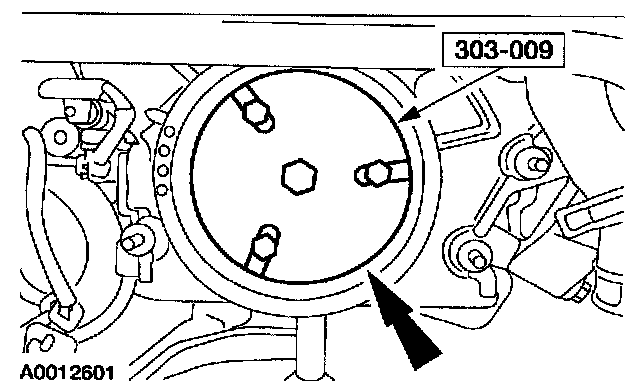

5. Using the special tool, remove the crankshaft pulley.

Installation





1. NOTE: Clean the keyway and slot using metal surface cleaner before applying silicone gasket and sealer.

NOTE: Seal surfaces must be free of dirt and oil.

NOTE: The crankshaft pulley must be installed within four minutes of applying the silicone gasket and sealer.

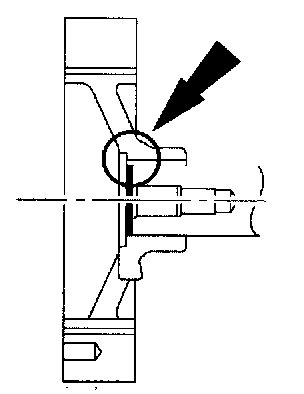

Apply silicone gasket and sealant to the end of the keyway slot.





2. NOTE: Lubricate the outside diameter sealing surface of the crankshaft pulley with clean engine oil.

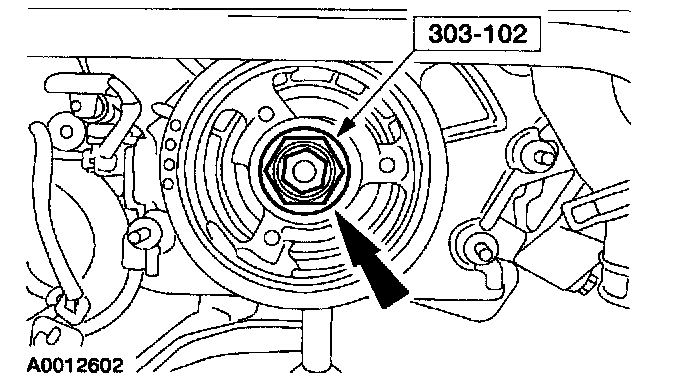

Using the special tool, install the crankshaft pulley.

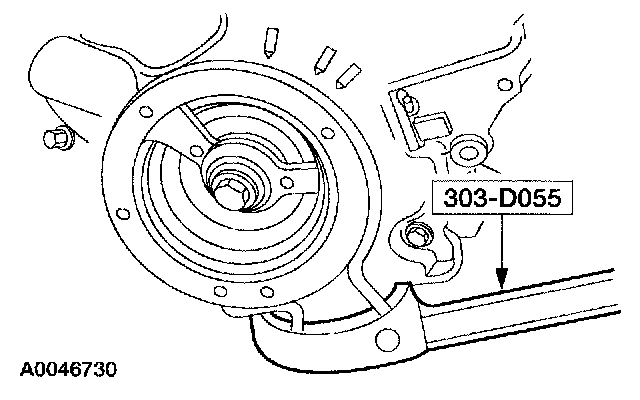

3. NOTE: Use an appropriate strap wrench to hold the crankshaft pulley. Install the bolt and the washer and tighten in four stages.
- Stage 1: Tighten to 120 Nm (89 ft. lbs.).
- Stage 2: Loosen 360 degrees.
- Stage 3: Tighten to 50 Nm (37 ft. lbs.).
- Stage 4: Tighten to 90 Nm (66 ft. lbs.).

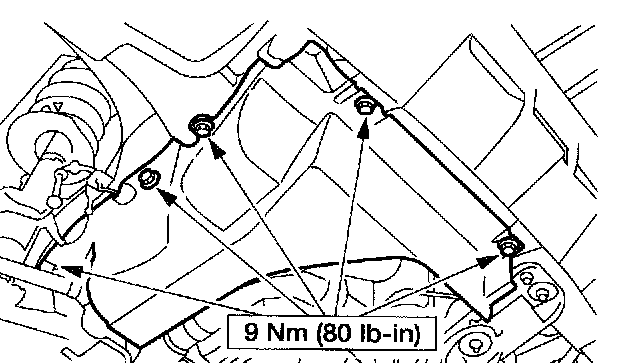

4. Install RH front inner splash shield.
5. Install the accessory drive belt.
