Camshafts RH

Camshafts RH

Removal
1. Remove the timing drive components.





2. CAUTION: Cylinder head camshaft journal caps and cylinder heads are numbered to verify that they are assembled in their original positions.

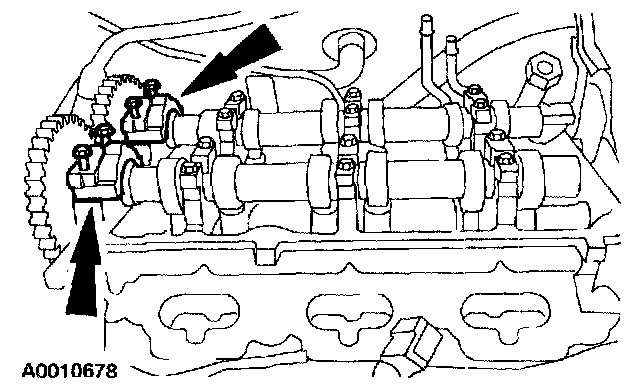

Loosen the RH camshaft cap bolts evenly in the sequence shown to allow the camshafts to rise from the cylinder head and remove the caps.

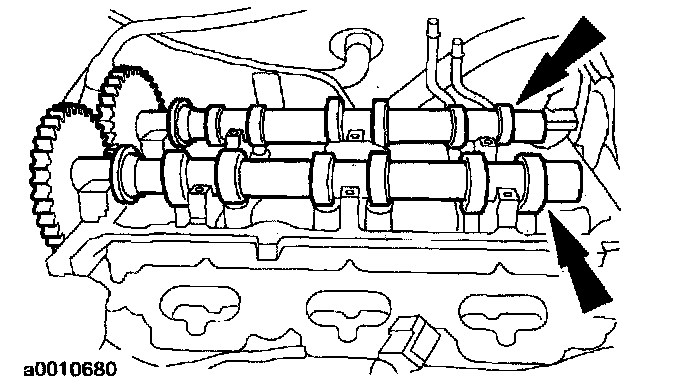

3. Remove the camshafts.

Installation





1. NOTE: Be sure camshaft bearing caps are installed in the original positions.

Lubricate camshafts with clean engine oil and carefully position the camshafts into the cylinder head.

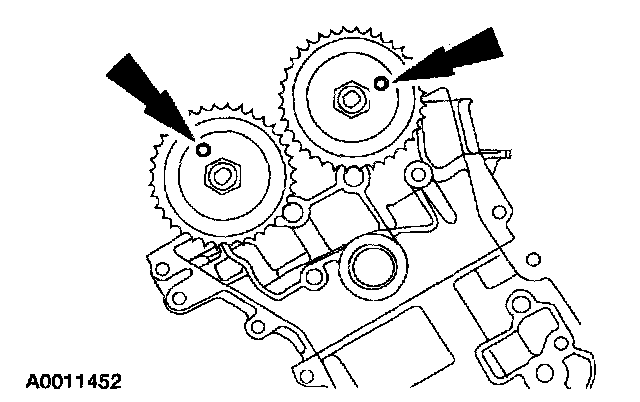

- Align the camshafts as shown.





2. CAUTION: Do not install the camshaft journal thrust caps until all of the camshaft bearing caps have been installed, or damage to the thrust caps may occur.

Lubricate the bearing surfaces of the camshaft bearing caps with clean engine oil and install the bearing caps and loosely install the bolts.

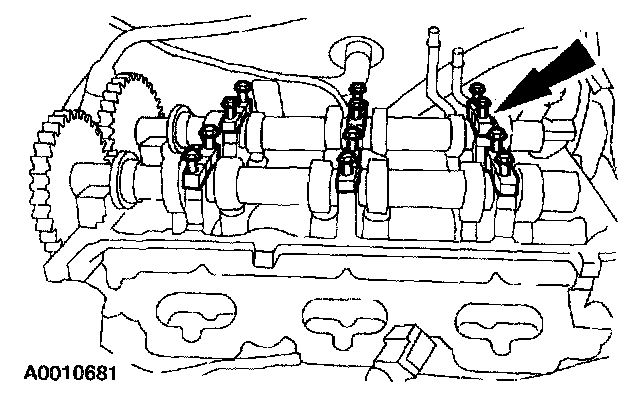

3. Lubricate the bearing surfaces of the camshaft bearing thrust caps with clean engine oil. Install the bearing thrust caps and loosely install the bolts.

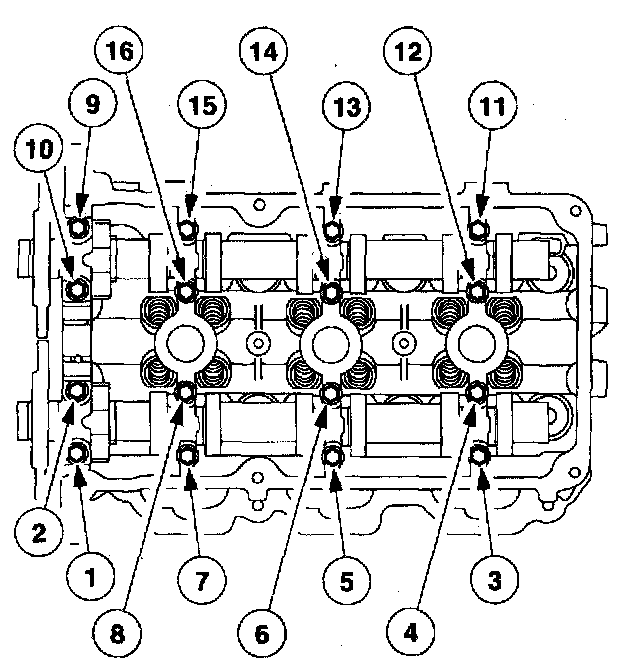

4. Tighten the bolts in the sequence shown.
5. Install the timing drive components.
