Thermostat: Service and Repair

Thermostat-3.0L (4V)

Removal and Installation
1. Drain the engine cooling system.

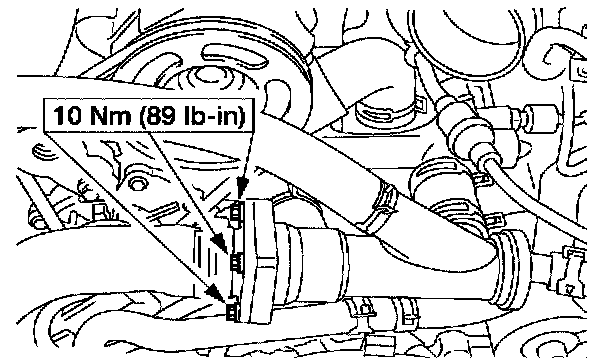

2. NOTE: The appearance cover is shown removed for clarity. Separate the thermostat housing.

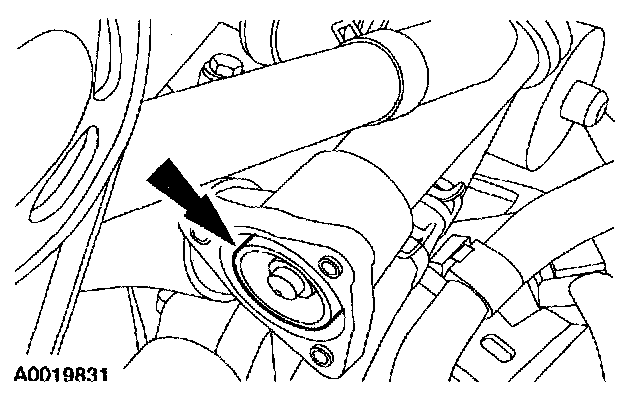

3. Remove the thermostat and the O-ring seal from the thermostat housing.

4. NOTE: Clean and inspect the sealing surfaces.

To install reverse the removal procedure.
