Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

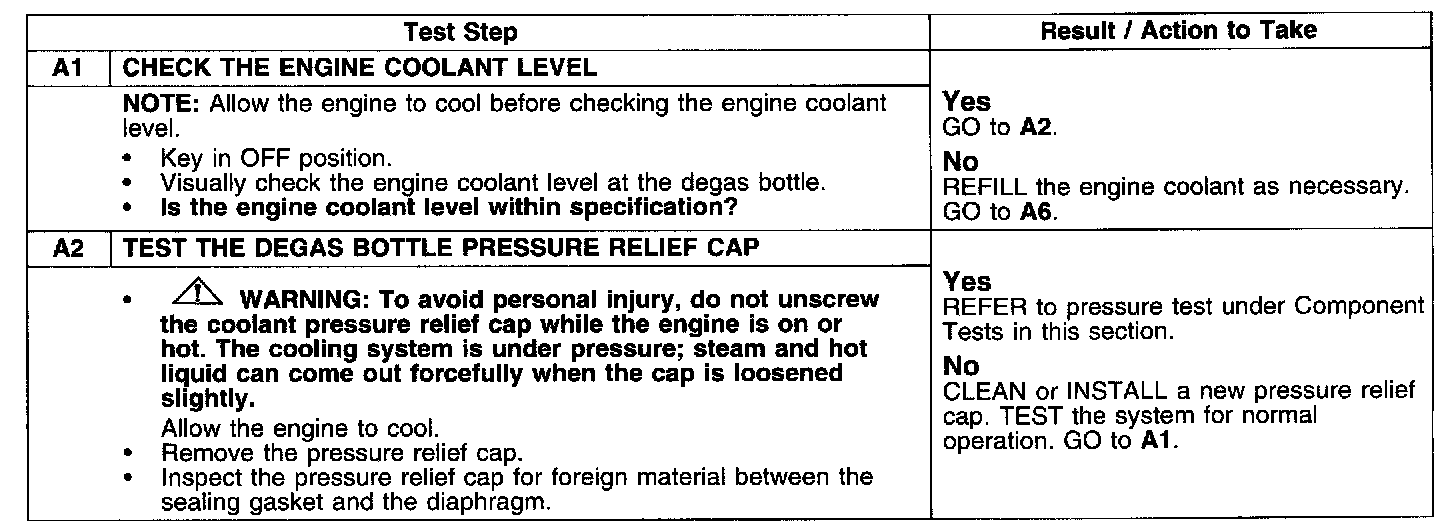

PINPOINT TEST A: LOSS OF COOLANT

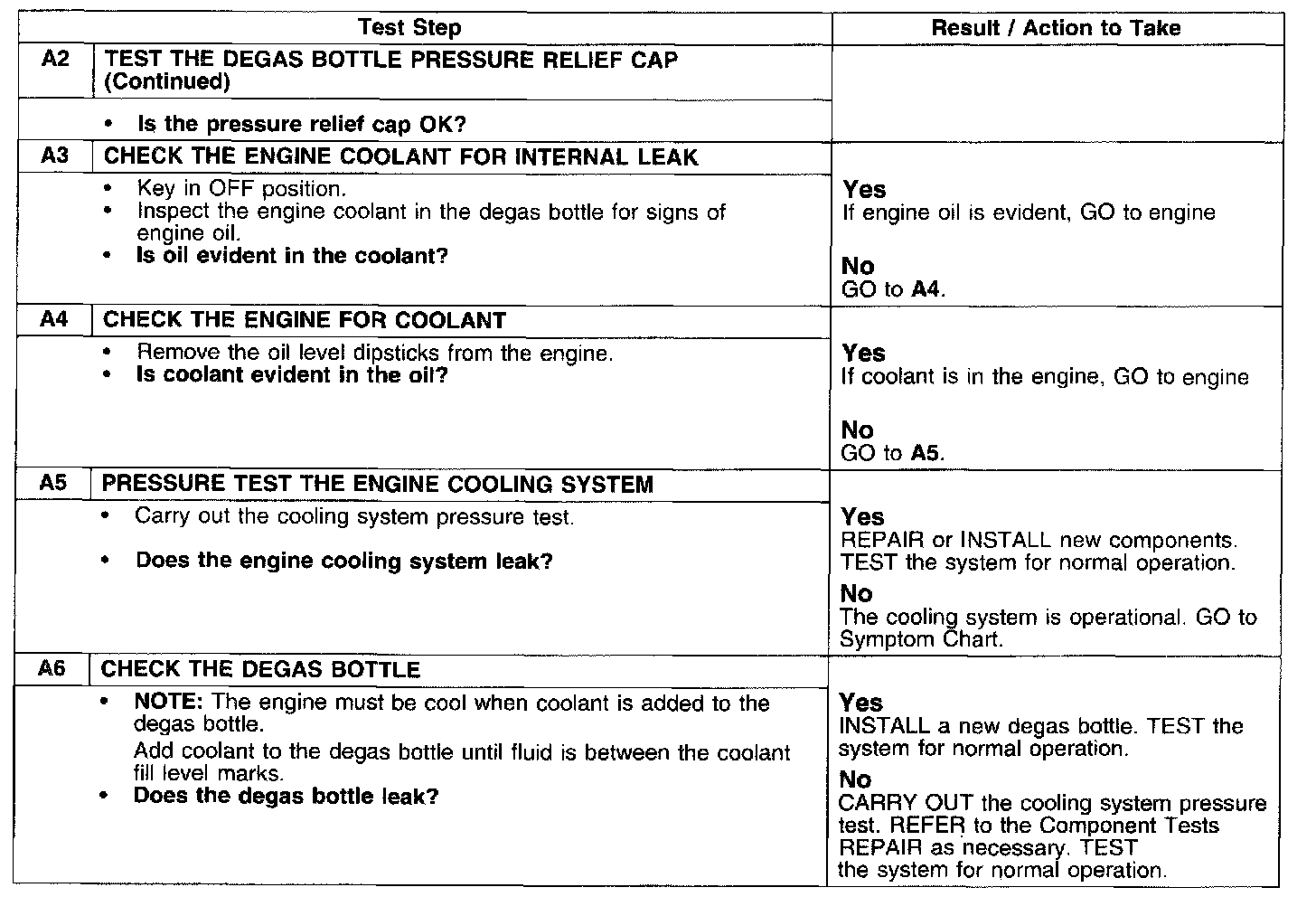

Test A1-A2 Continued:




Test A2-A6:
