Radiator: Service and Repair

Radiator

Removal and Installation

1. Drain the engine cooling system.
2. Raise and support the vehicle.

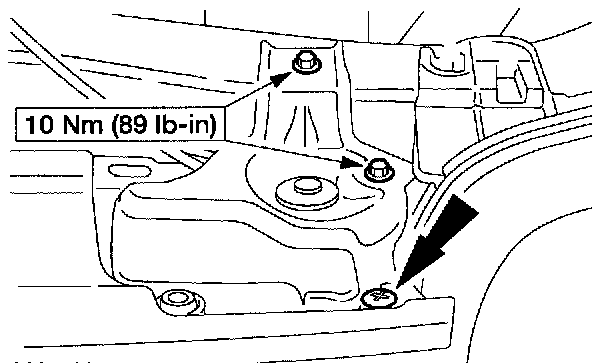

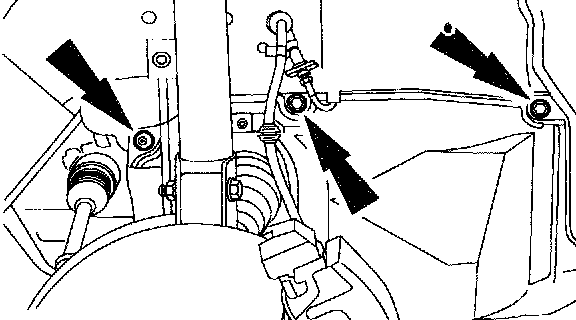

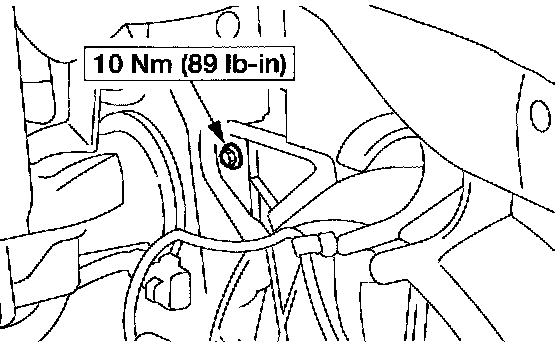

3. Remove the lower splash shields.

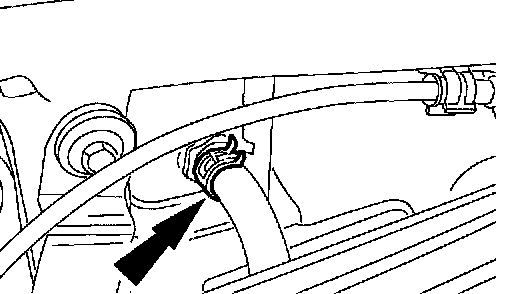

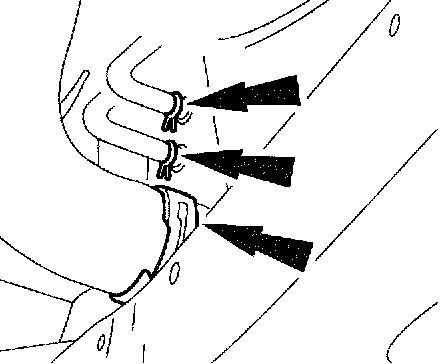

4. Disconnect the lower radiator hose, the high pressure transmission line and the degas return hose.

5. Lower the vehicle.





6. Disconnect the transmission return line.





7. Disconnect the upper radiator hose and degas supply hose.





8. Position the hood latch assemble out of the way.

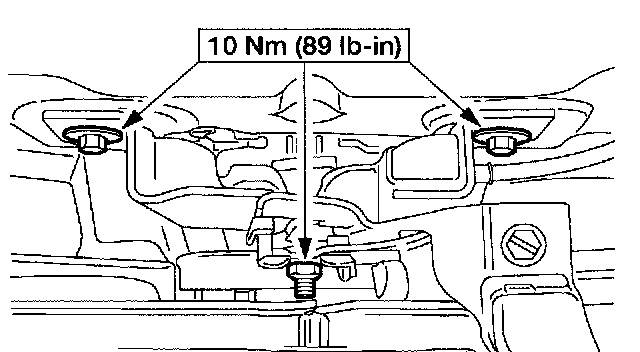

9. Remove the two bolts and the center support.





10. Remove the two top bolts retaining the cooling fan to the radiator.





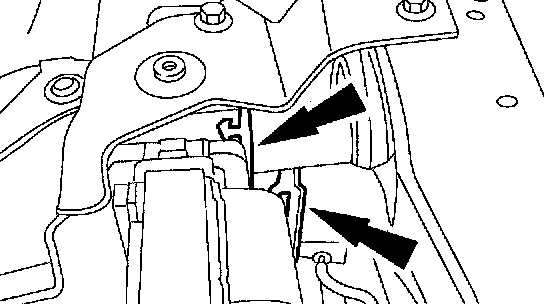

11. Remove the upper radiator support brackets, and remove the radiator from the vehicle.
12. To install, reverse the removal procedure.
