Heater Hose: Service and Repair

REMOVAL

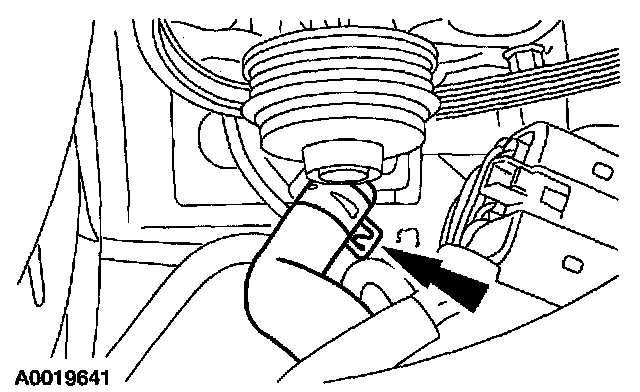

1. Drain the engine coolant.

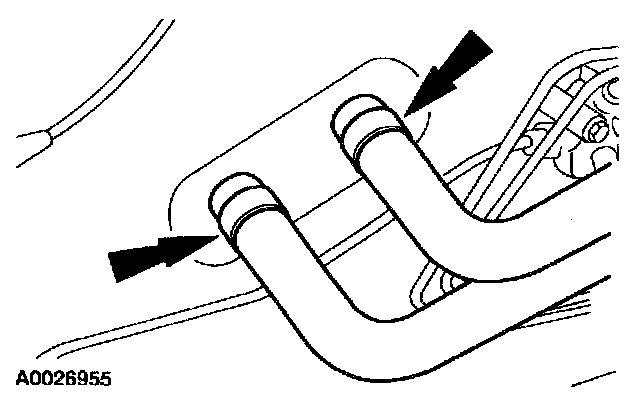

2. Disconnect the heater hoses from the heater core.

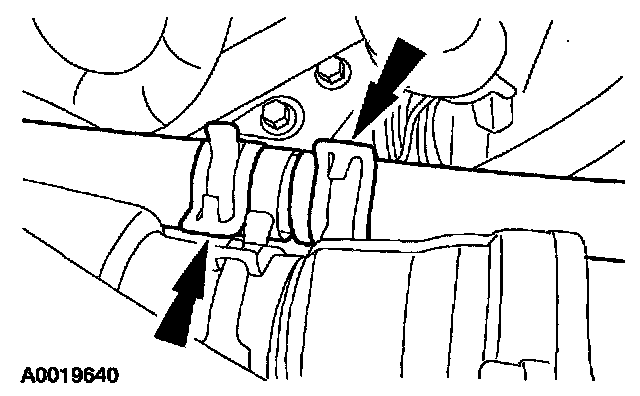

3. Disconnect the heater outlet hose from the water hose connection.

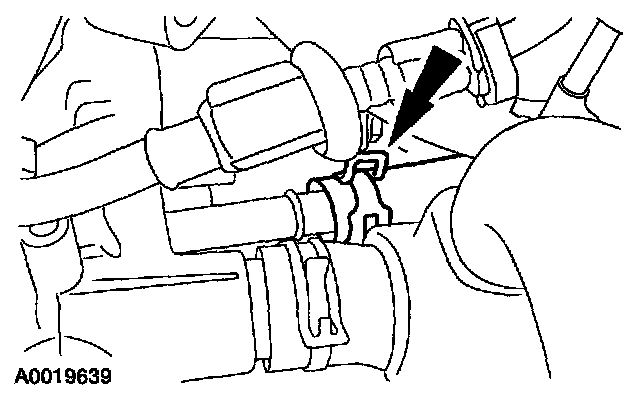

4. Disconnect the heater hose connection from the engine.
5. Remove the heater hose from the engine compartment.







6. Disconnect the heater hoses from the heater hose junction.

INSTALLATION
1. To install, reverse the removal procedure.
