Drive Belt

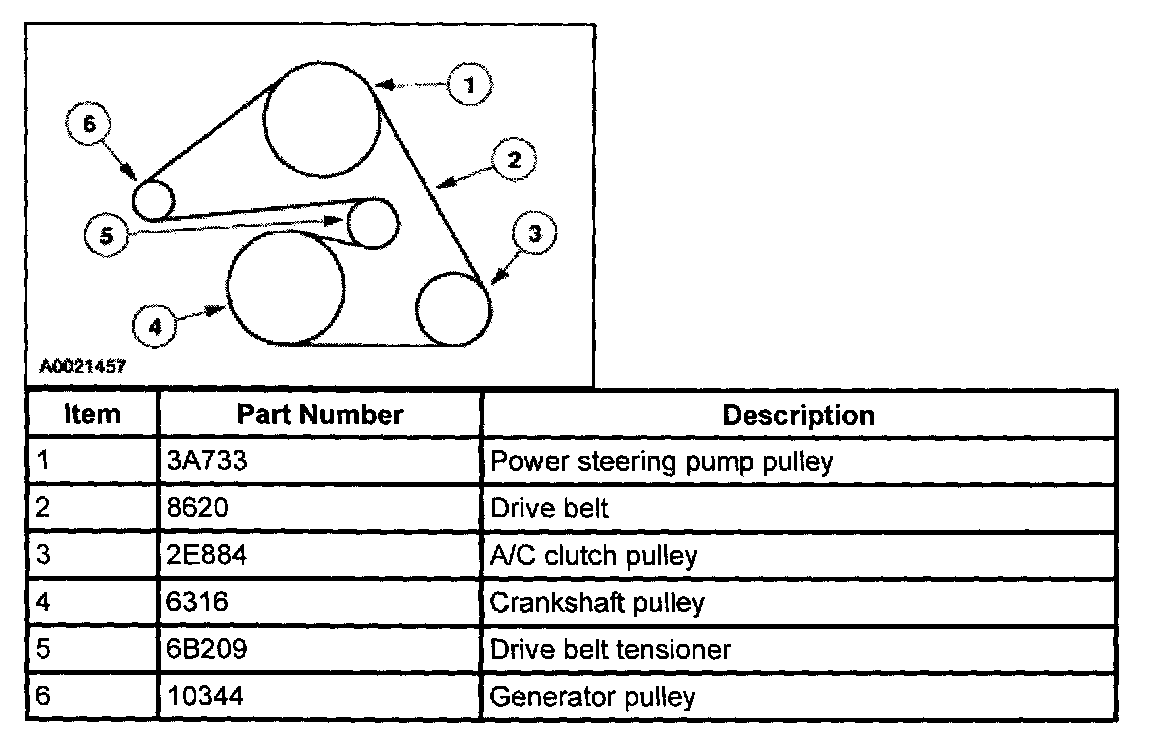

3.0L (4V) With A/C:



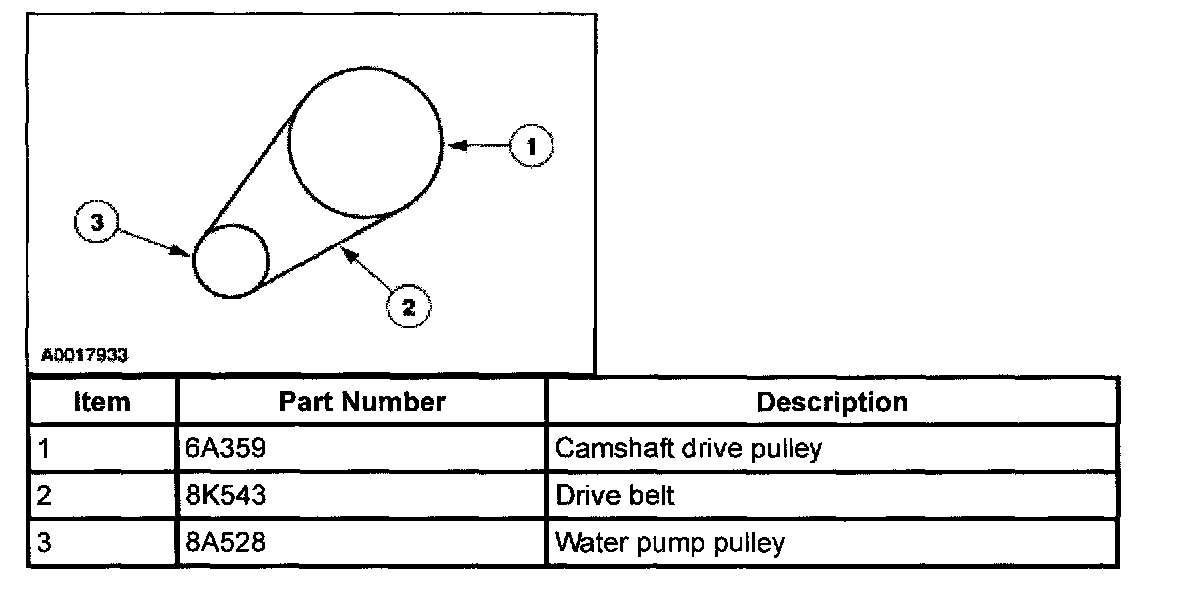

Water Pump Drive Belt-3.0L (4V) With Tensioner:

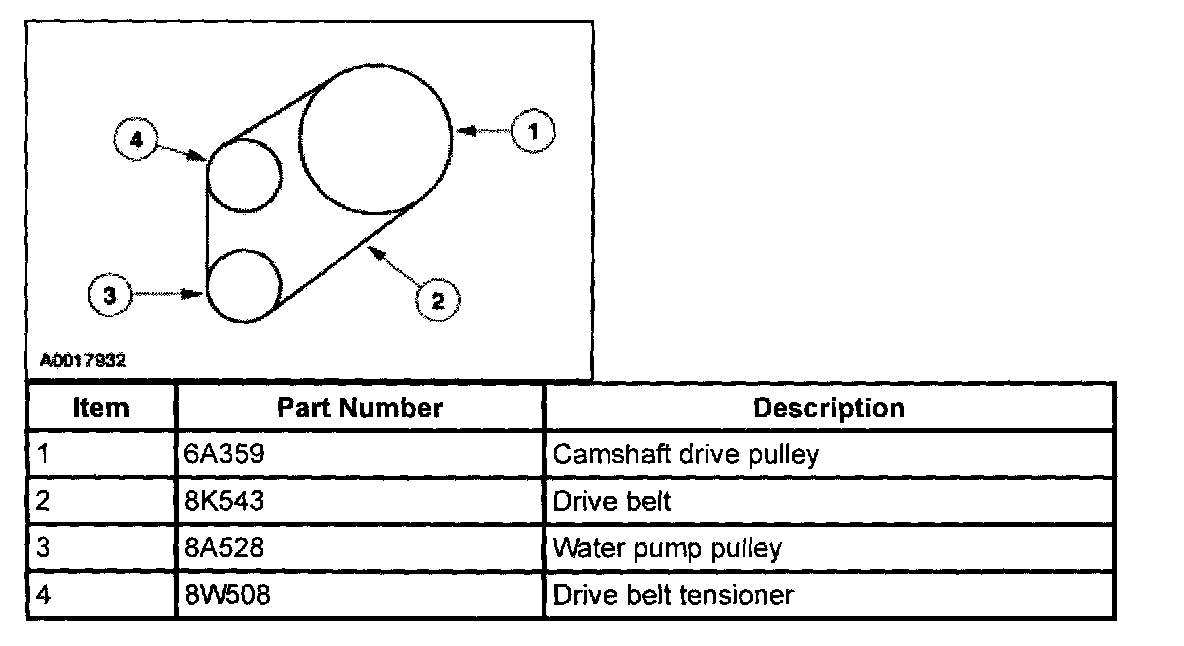

Water Pump Drive Belt-3.0L (4V) Without Tensioner:
