Bearings, Bushings and Thrust Washers

Bushings, Bearing and Thrust Washer Locator

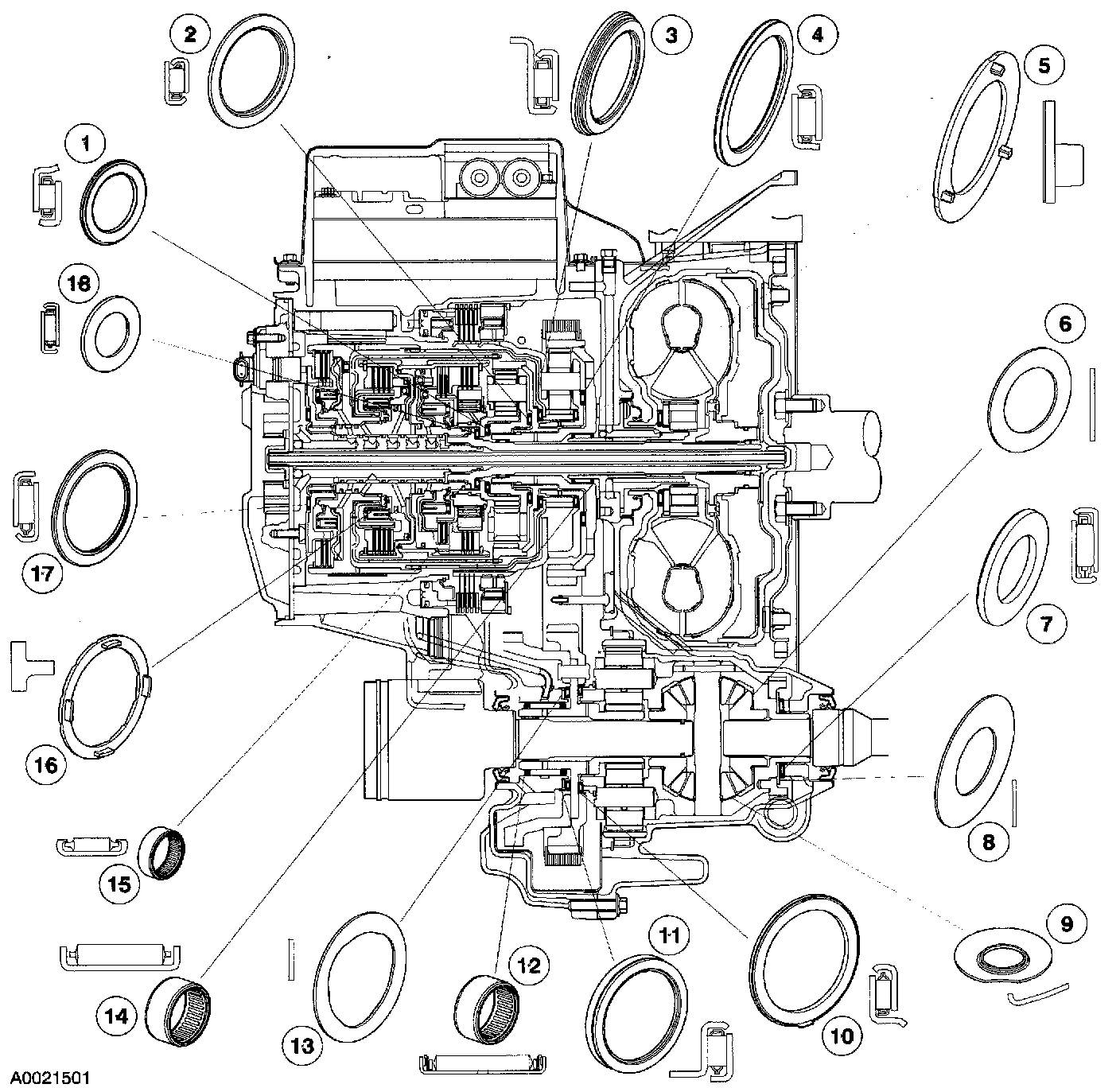

Part 1 Of 2:

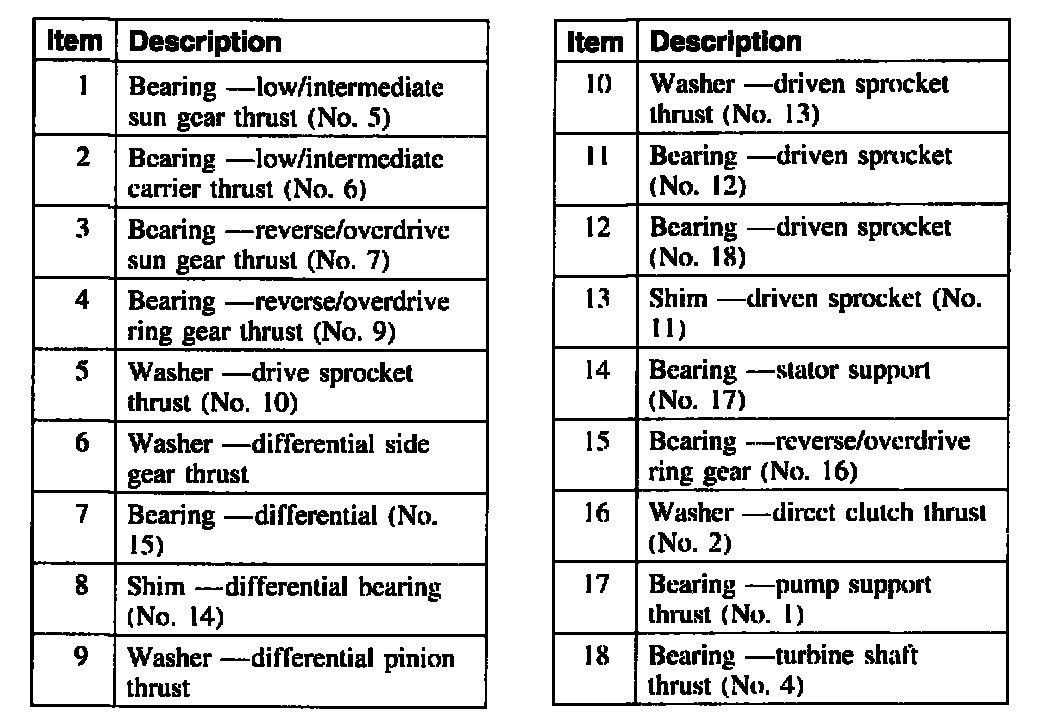

Part 2 Of 2:
