Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

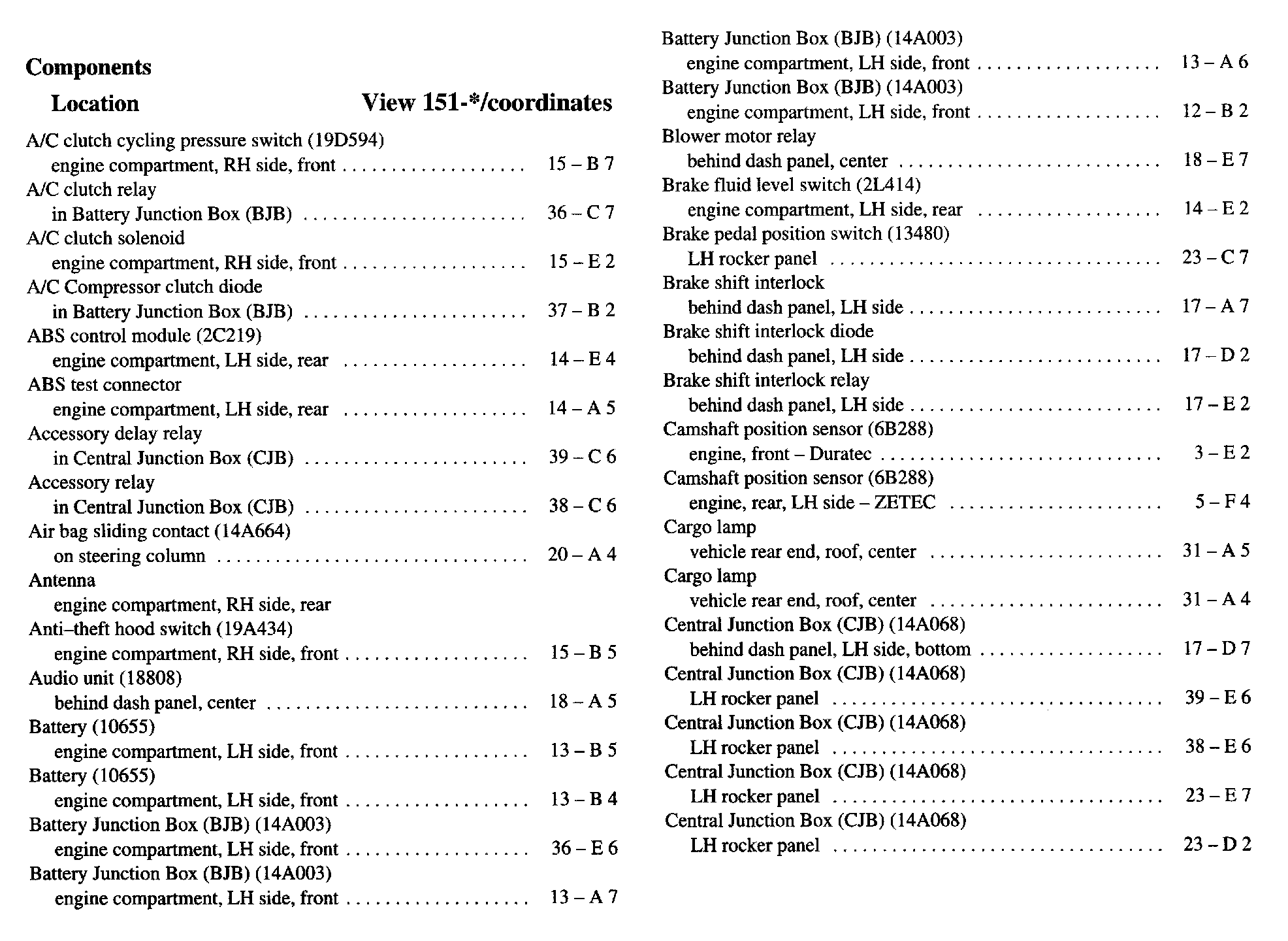

A/C - Ce:

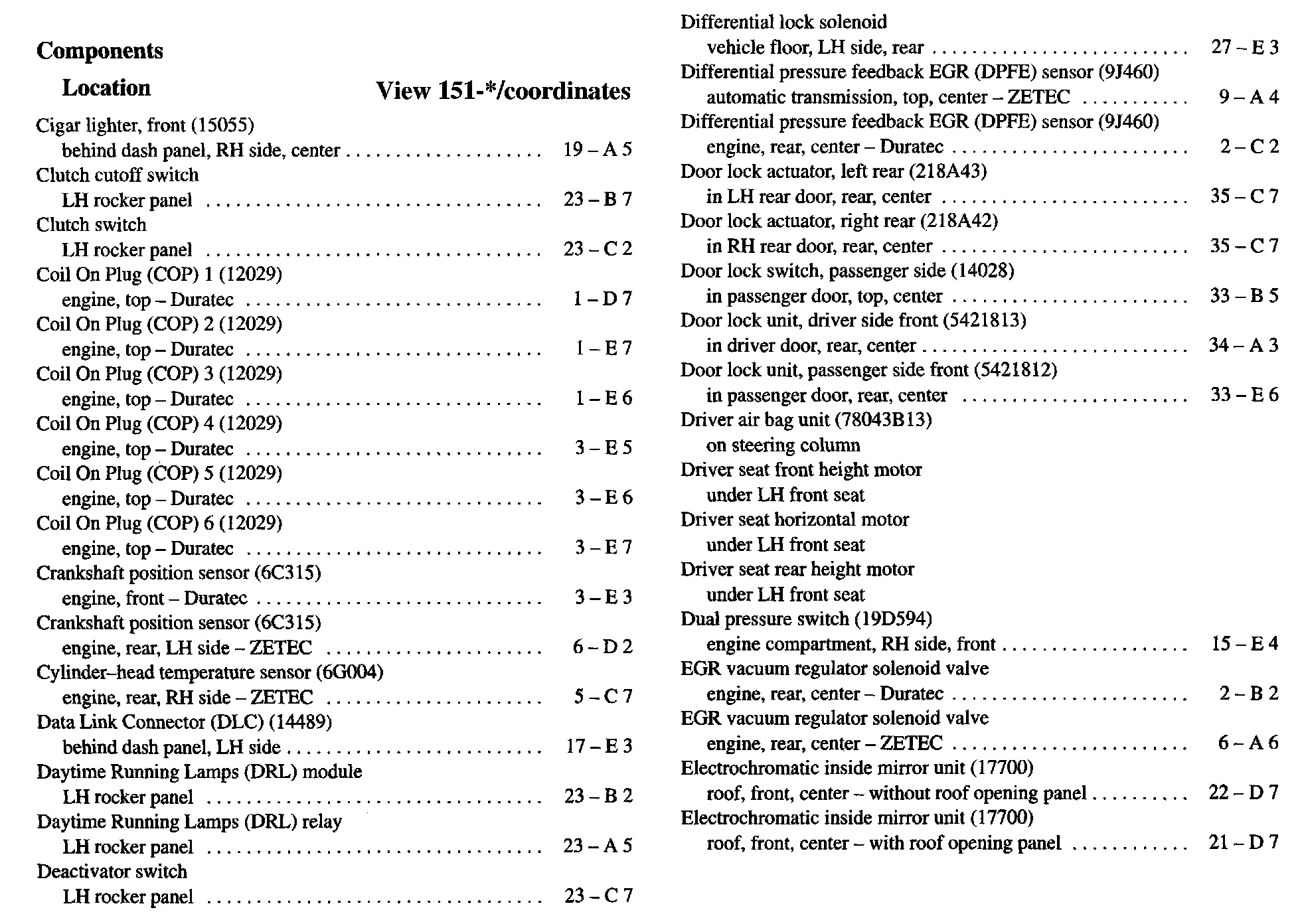

Ci - El:

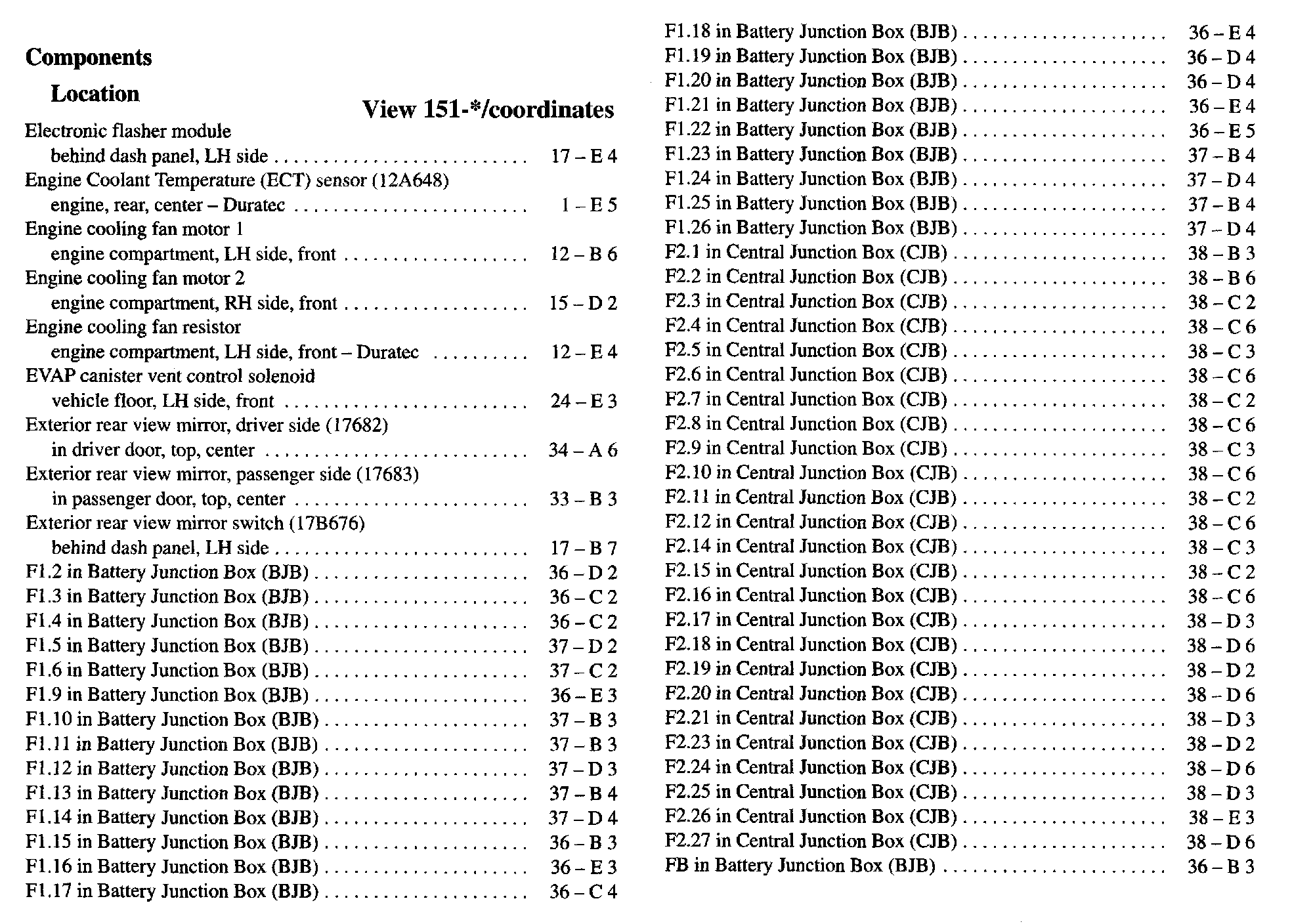

El - FB:

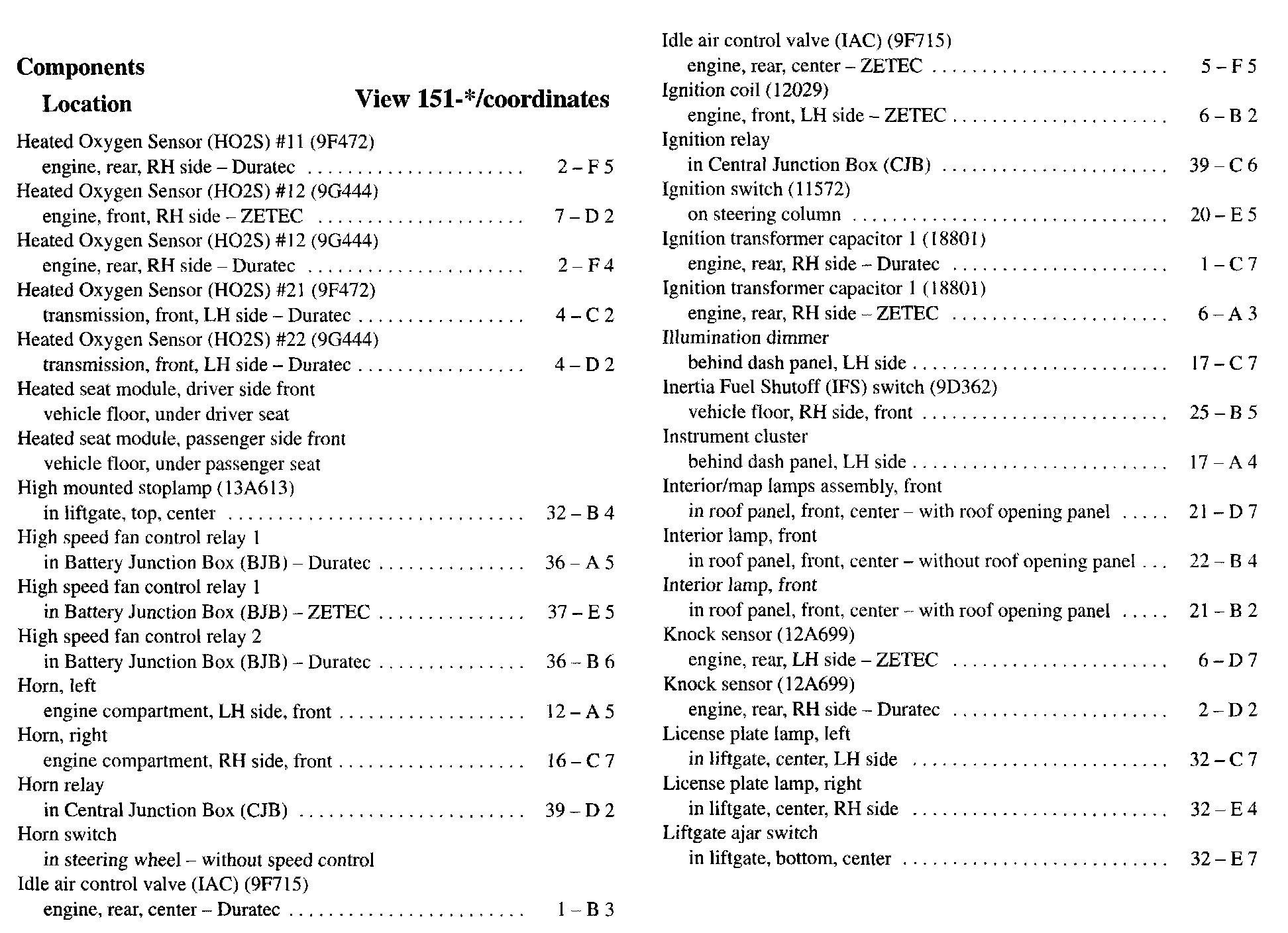

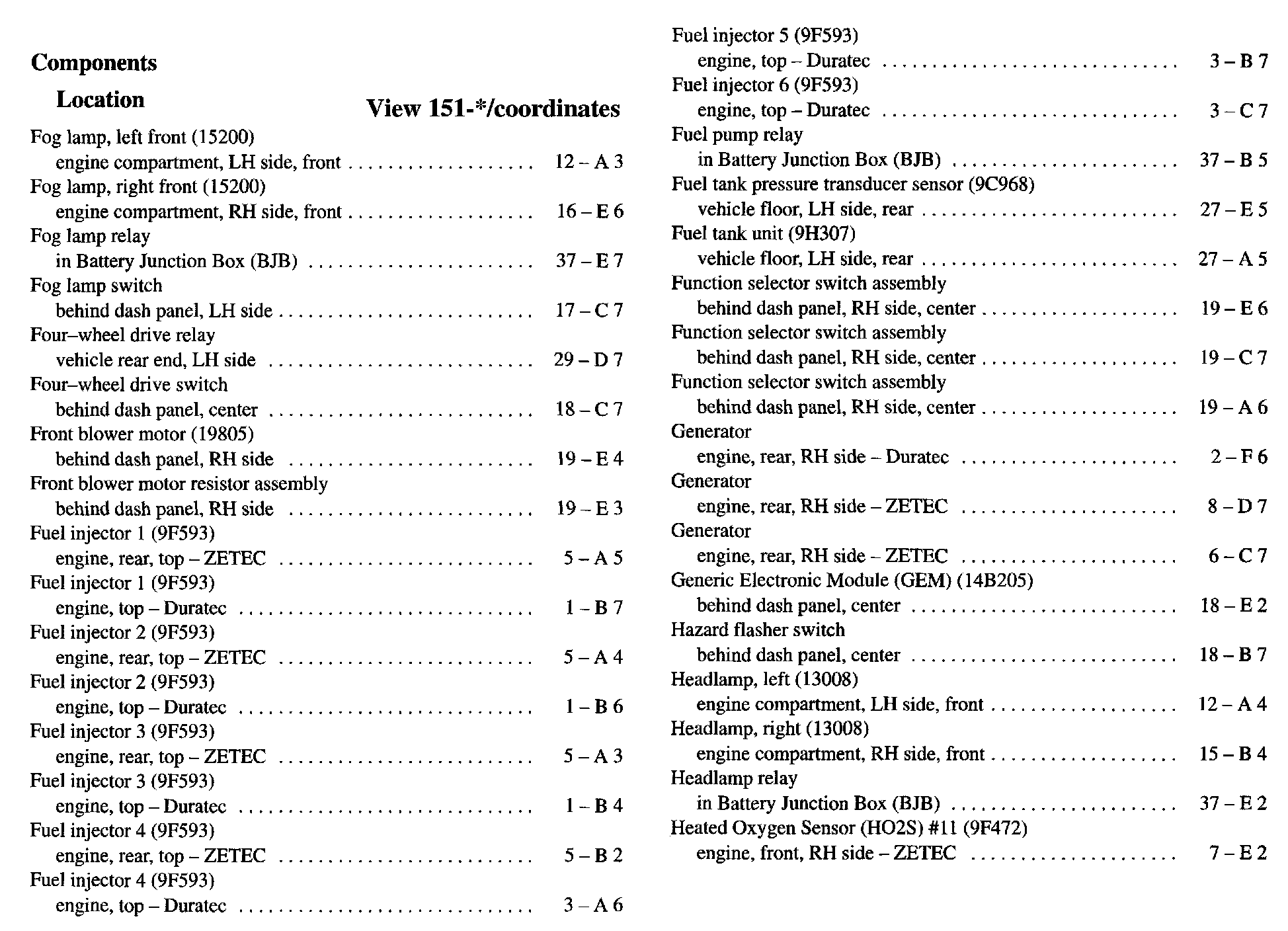

Fo - He:

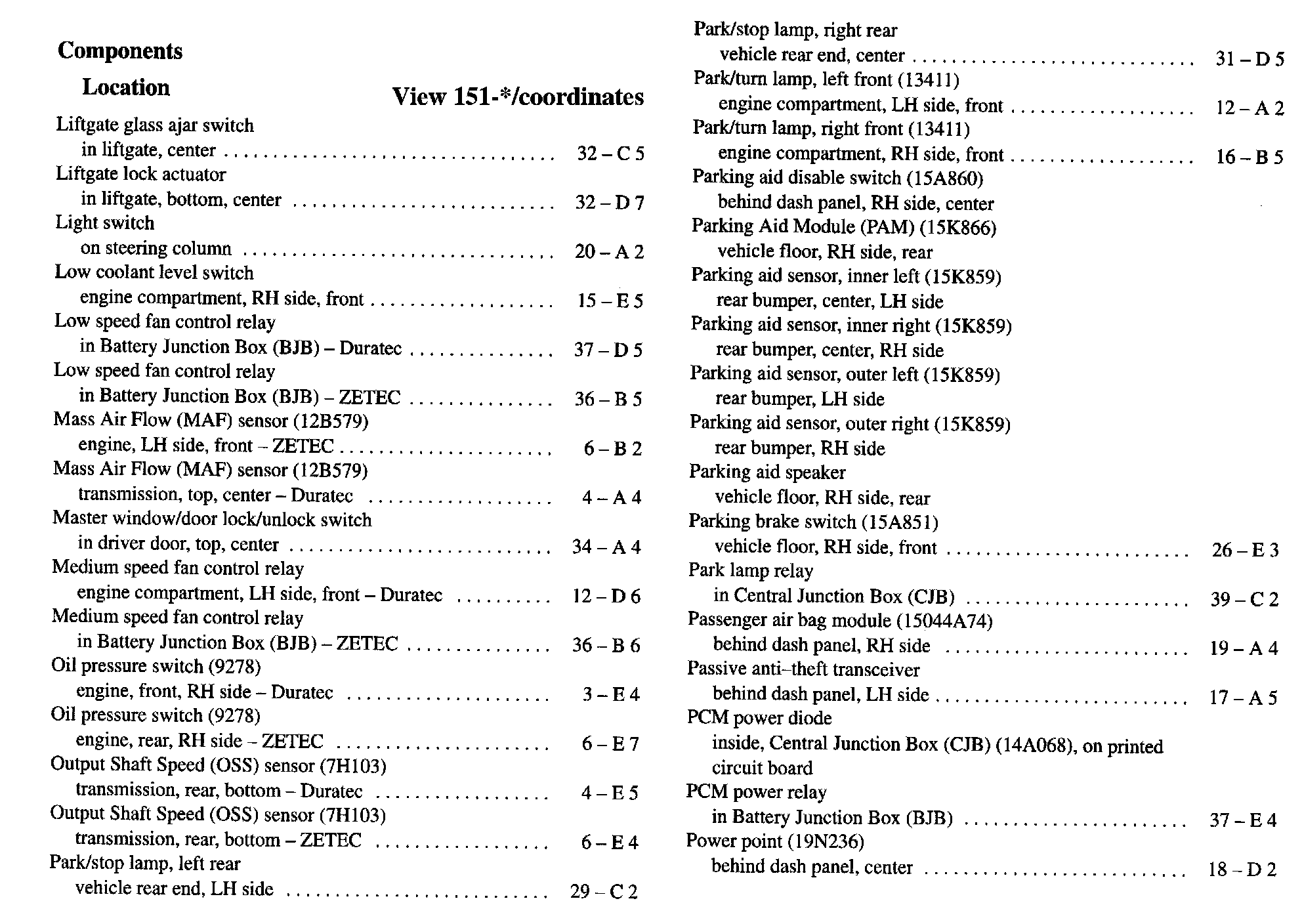

He - Li:
Li - Po:

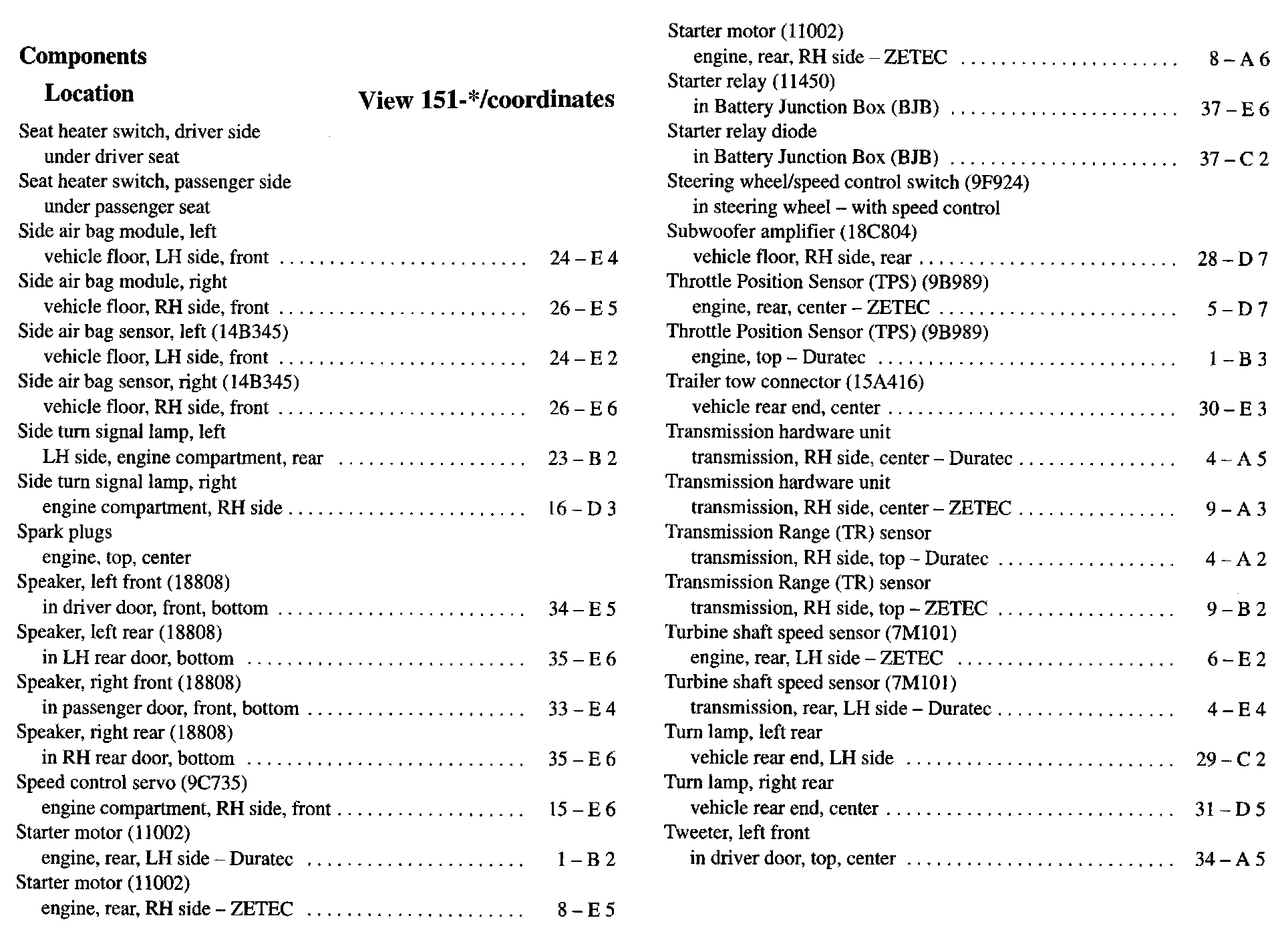

Po - Se:

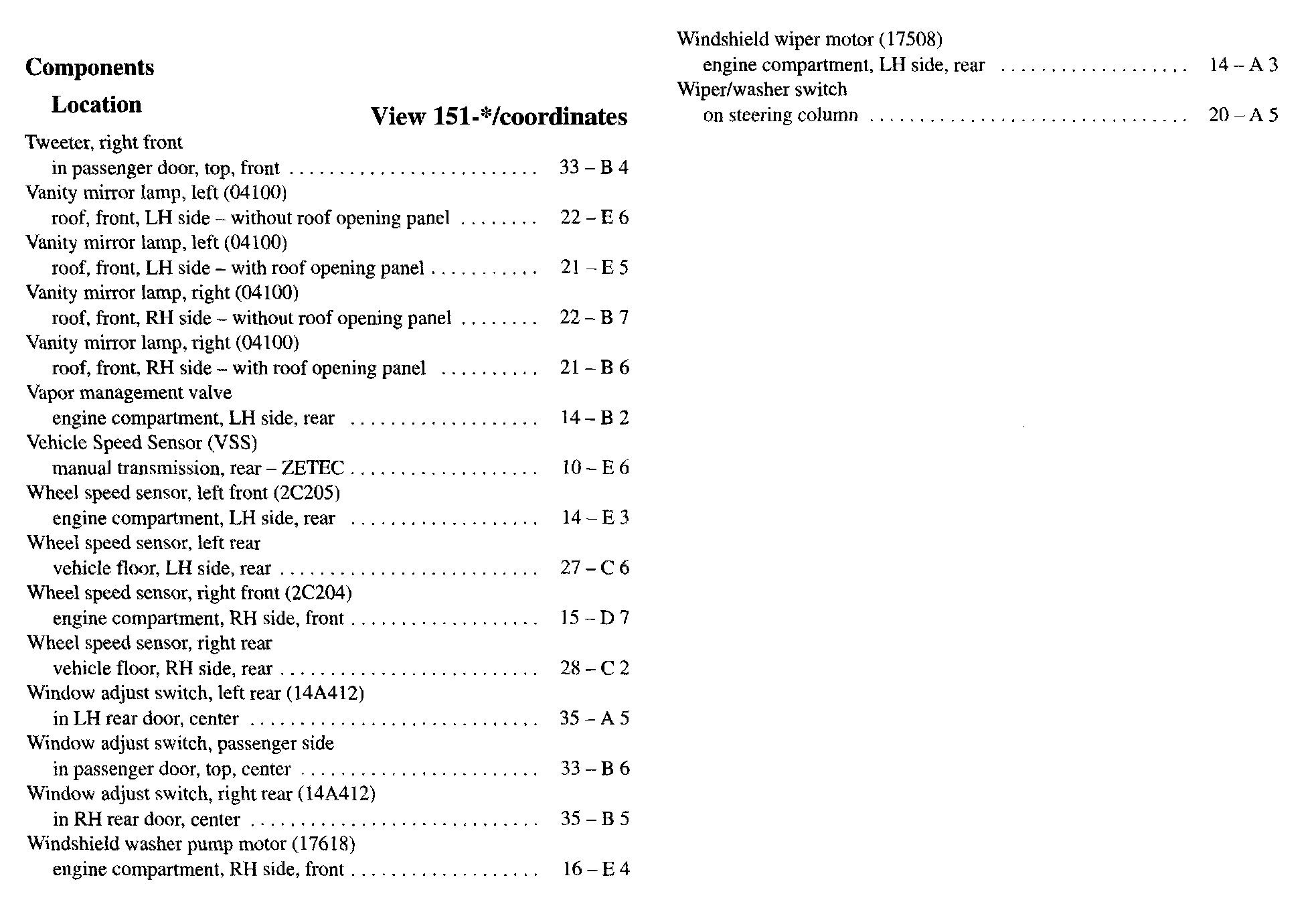

Se - Tw:
Tw - Wi:
