Test H: Flash Code 3 - Deactivator Switch Circuit Failure
Test H: Flash Code 3 - Deactivator Switch Circuit Failure

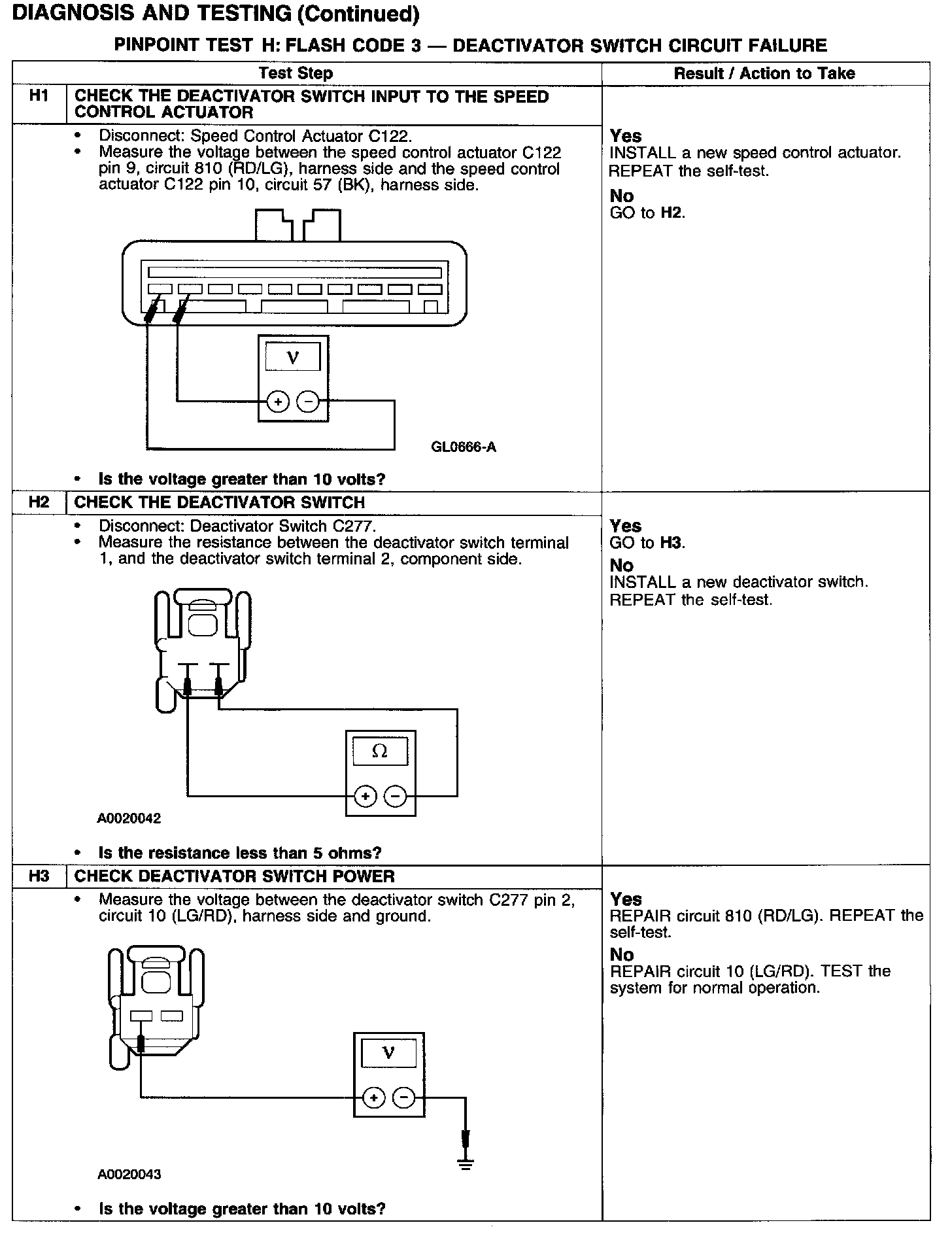

PINPOINT TEST H: FLASH CODE 3 - DEACTIVATOR SWITCH CIRCUIT FAILURE
Test H1-H3:
