Test G: Flash Code 2 - BPP Switch Circuit Failure
Test G: Flash Code 2 - BPP Switch Circuit Failure
PINPOINT TEST G: FLASH CODE 2 - BPP SWITCH CIRCUIT FAILURE

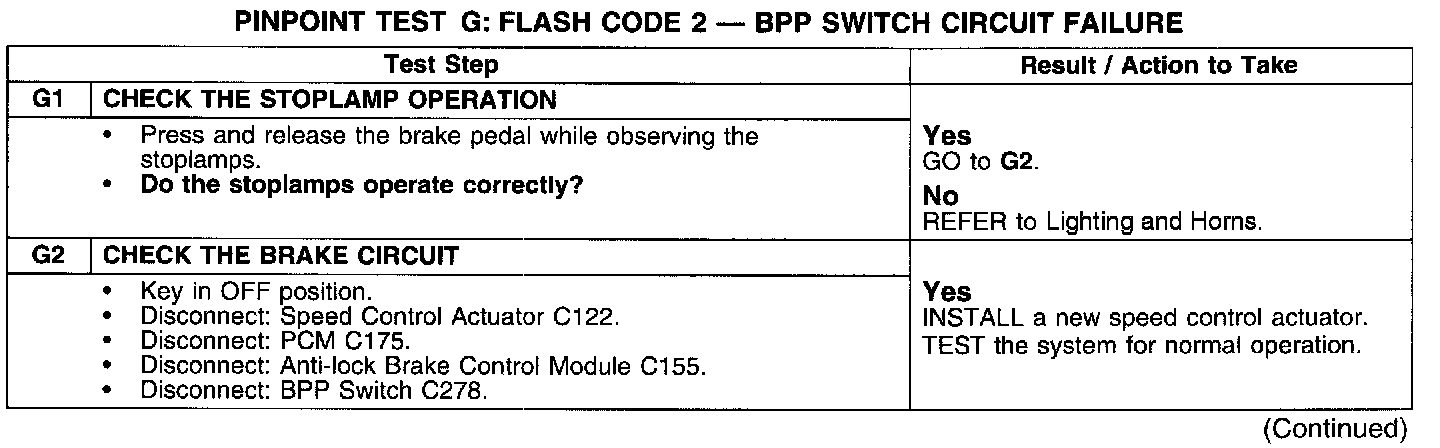

Test G1-G2:

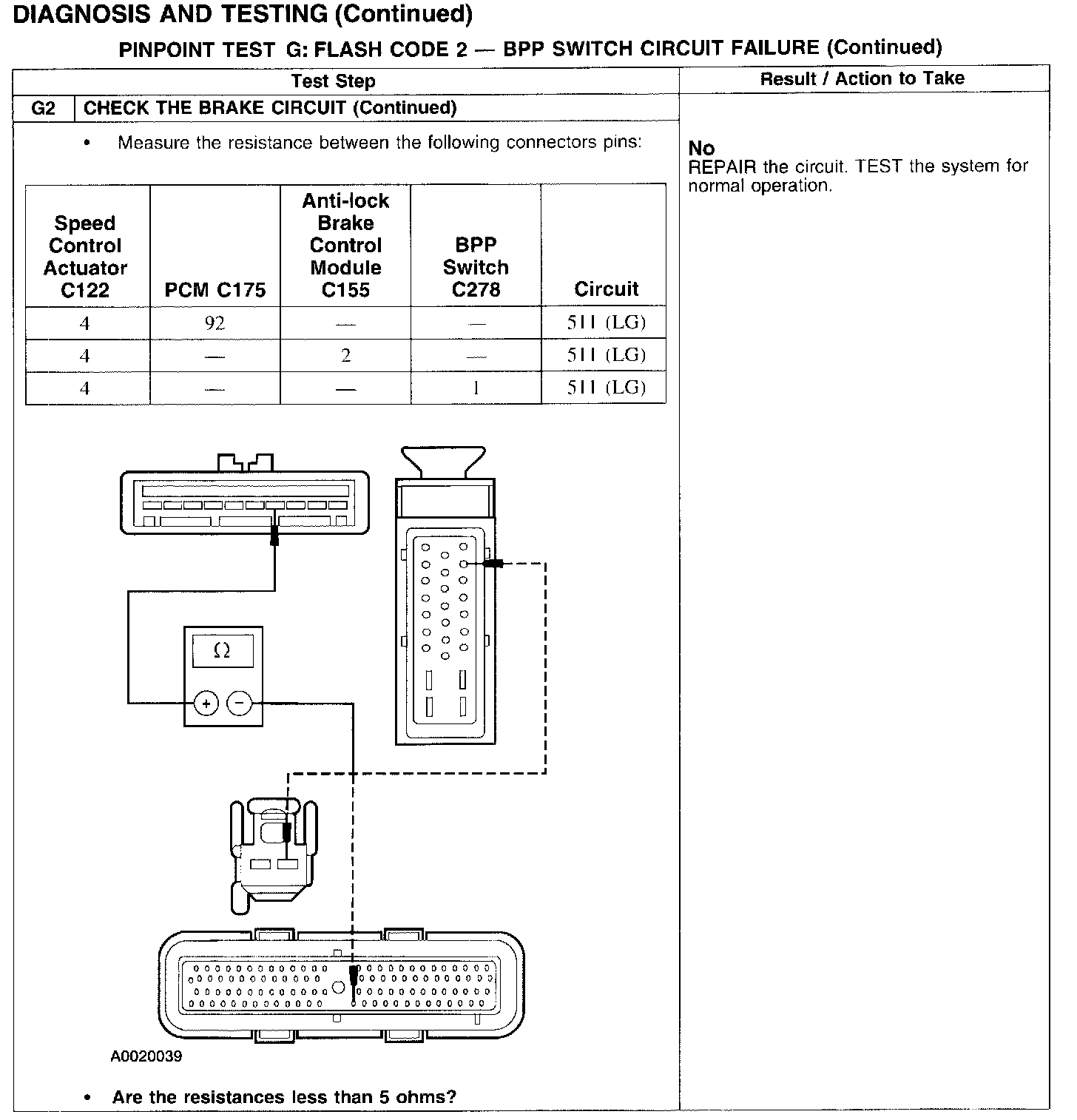

Test G2:
