Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test F: Flash W/Switch Pressed, No Throttle Pull, Speed Control Inop

Test F: Flash W/Switch Pressed, No Throttle Pull, Speed Control Inop

PINPOINT TEST F: FLASH WITH LAST SWITCH PRESSED BUT NO DYNAMIC PULL OCCURS AT THE THROTTLE AND THE SPEED CONTROL IS INOPERATIVE

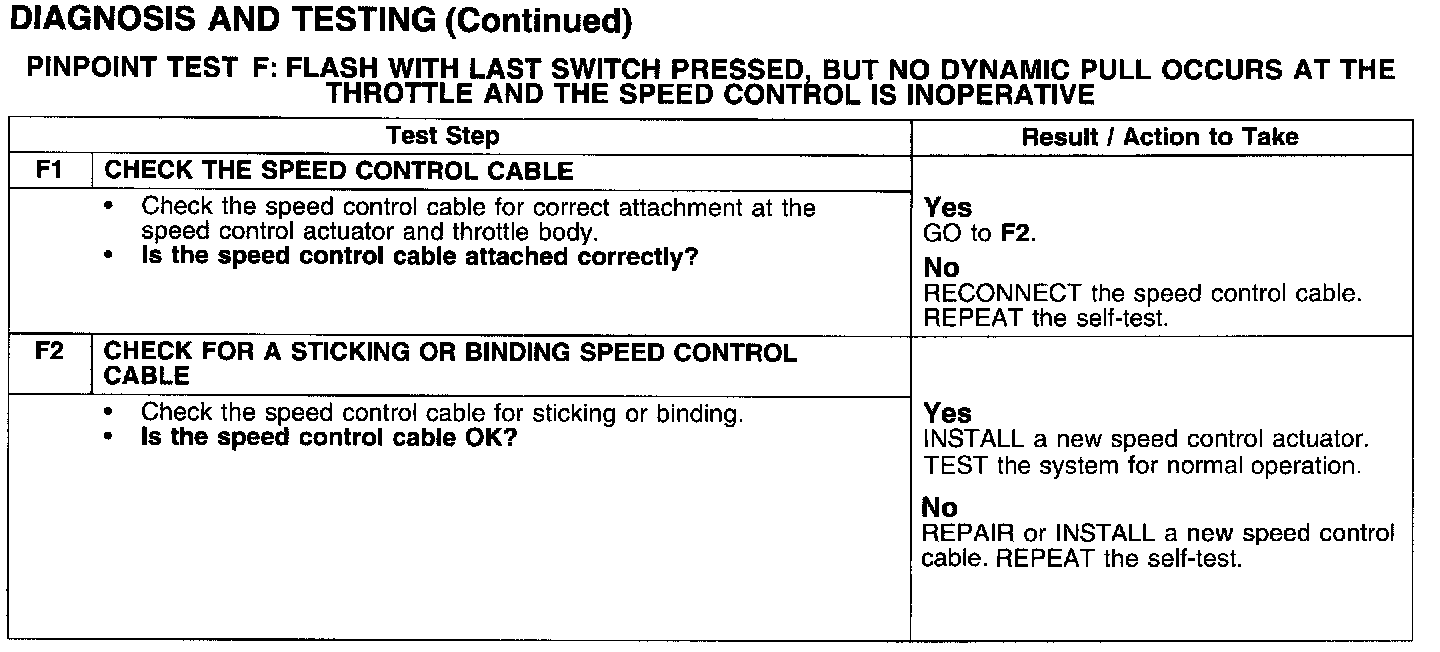

Test F1-F2:
