Cruise Control Servo Cable: Service and Repair

REMOVAL

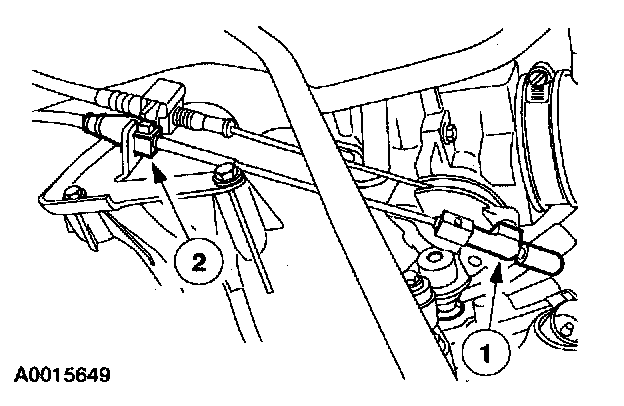

1. Disconnect the speed Control cable from the throttle control linkage and bracket.
1 Disconnect the cable from the throttle control linkage.
2 Squeeze the tabs and disconnect the speed control cable from the bracket







2. Release the speed control cable cap.
1 Depress the speed control cable cap retaining tab.
2 Rotate the speed control cable cap.







3. Remove the speed control cable.
1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control cable.

INSTALLATION
1. To install, reverse the removal procedure.
