Parking Brake Control: Service and Repair

Parking Brake Control

Removal and Installation
1. Remove the floor console.
2. Release the parking brake control.

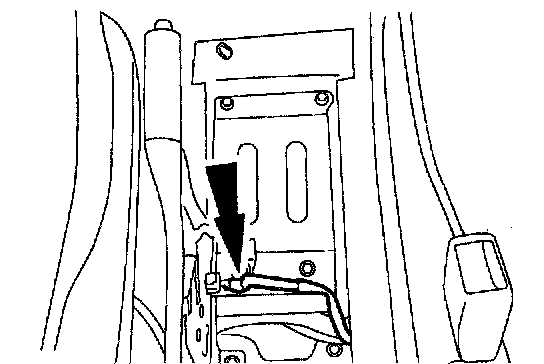

3. Disconnect the parking brake warning indicator switch electrical connector.

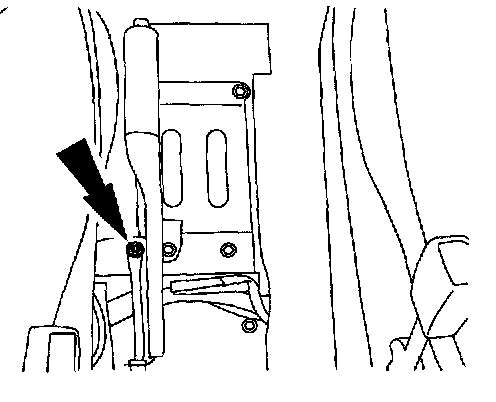

4. Remove the parking brake adjusting nut.

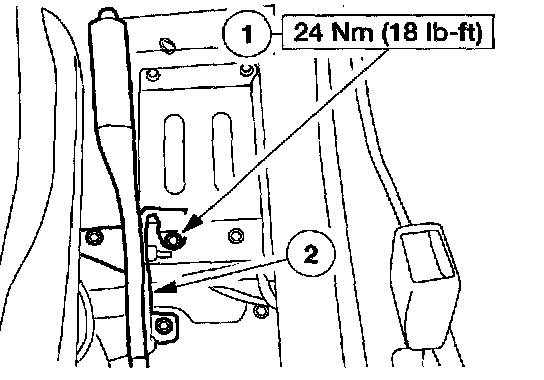

5. Remove the parking brake control.
1 Remove the bolts.
2 Remove the parking brake cable.

6. To install, reverse the removal procedure.
^ Adjust the parking brake cable.
