Parking Brake Cable: Adjustments

Parking Brake Cable Adjustment

Vehicle with low series floor console





1. Remove the floor console front finish panel.

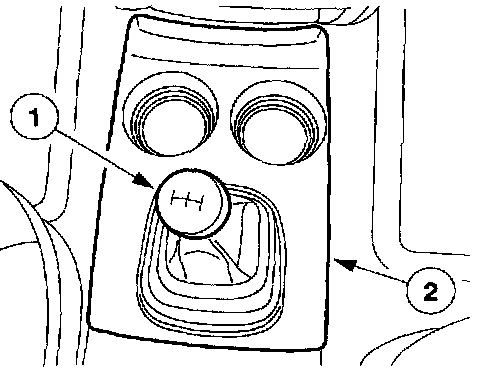

1 If equipped, remove the manual transmission shift knob by turning counterclockwise.

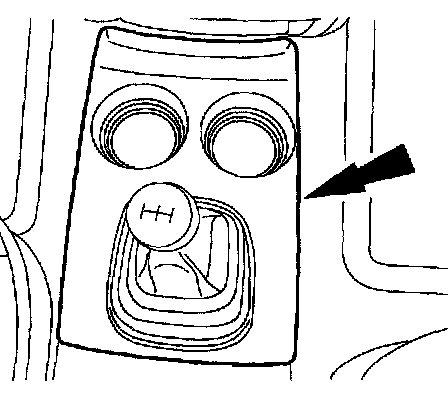

2 Remove the floor console front finish panel.





2. Remove the floor console rear finish panel.

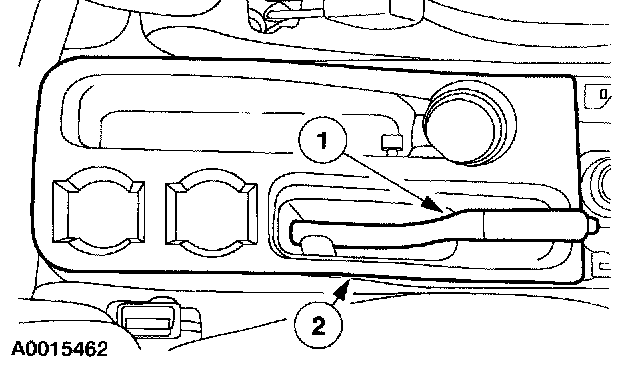

1 Apply the parking brake.
2 Remove the floor console rear finish panel.





Vehicle with high series floor console
3. Remove the floor console finish panel.

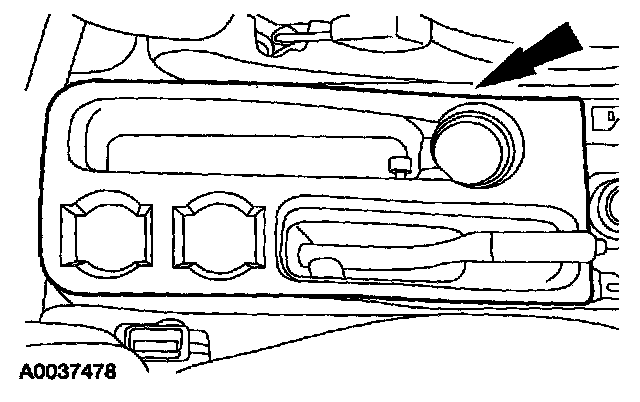

1 Apply the parking brake.
2 Remove the floor console finish panel.

All vehicles

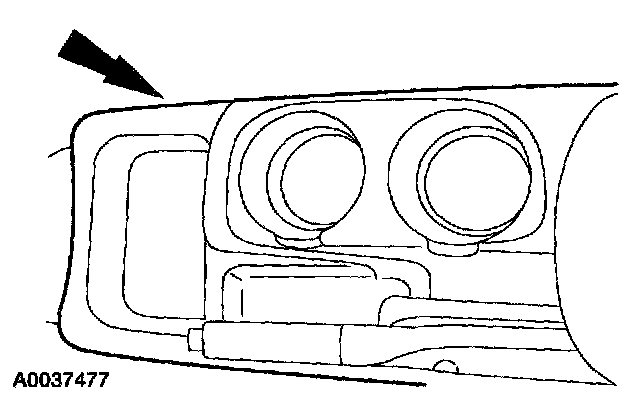

4. Remove the adjustment nut clip.

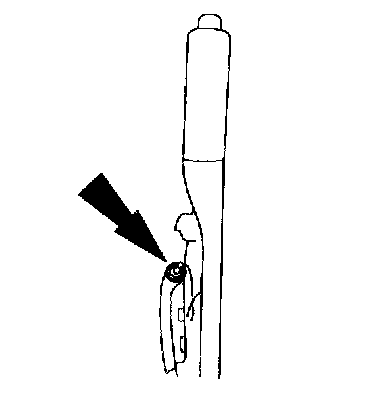

5. Turn the parking brake control adjustment nut so that the parking brake control stroke is three to five notches when pulled.
6. Confirm the parking brake is applied.
7. Install the adjustment nut clip.





Vehicle with high series floor console
8. Install the floor console rear finish panel.





Vehicle with low series floor console
9. Install the floor console rear finish panel.





10. Install the floor console front finish panel.
^ If equipped, install the manual transmission shifter knob by turning clockwise.
