Removal and Installation

Wheel Cylinder

Removal and Installation
1. Remove the rear brake drum.
2. Using the Brake/Clutch/Service Vacuum, remove brake dust and dirt from the brake assemblies.





3. Remove the parking brake cable from the parking brake cable lever.

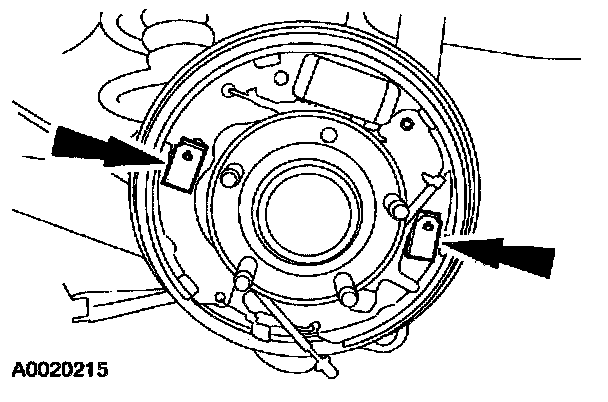

4. Remove the hold-down clips and pins.

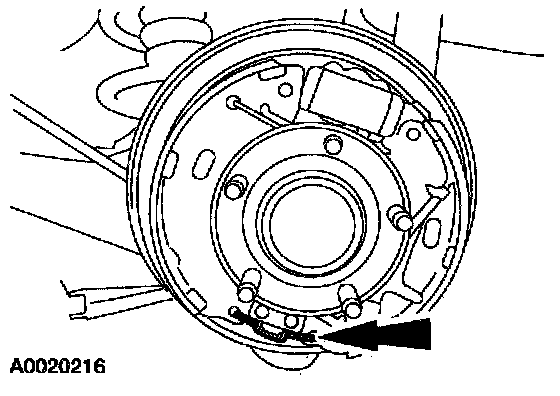

5. Remove the lower spring.

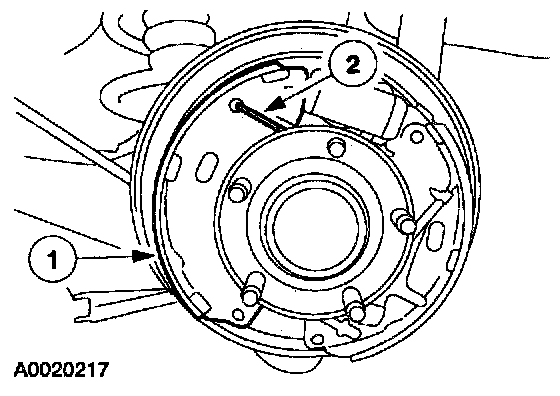

6. Remove the rear brake shoes.
1 Pull the bottom of the brake shoe forward.
2 Release the upper return spring.
3 Remove both brake shoes together.





7. WARNING: Use of any other than approved DOT 4 or DOT 3 brake fluid will cause permanent damage to brake components and will render brakes inoperative. Failure to follow these instructions may result in personal injury.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

NOTE: When any part of the hydraulic system has been disconnected for repair or replacement, air may get into the system and cause spongy brake pedal action. This requires the bleeding of the hydraulic system after it has been correctly connected.

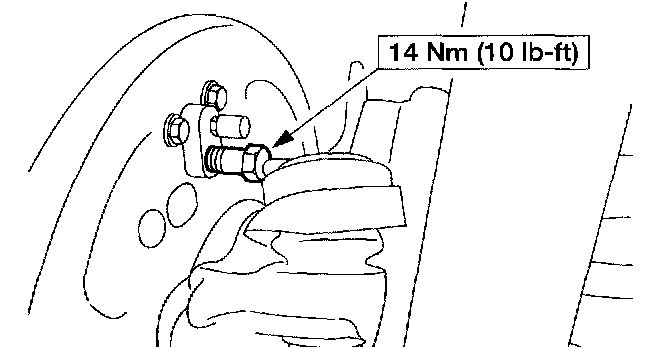

Disconnect the brake line fitting from the wheel cylinder.

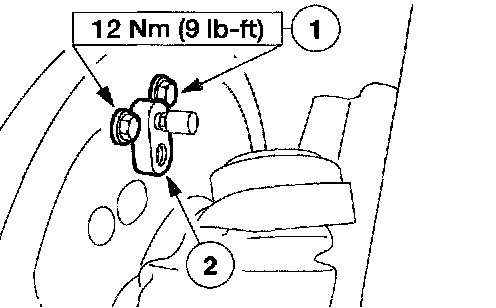

8. Remove the wheel cylinder.
1 Remove the bolts.
2 Remove the wheel cylinder.

9. To install, reverse the removal procedure.
^ Bleed the brake hydraulic system.
