Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

Removal and Installation
1. Remove the wheel and tire assembly.

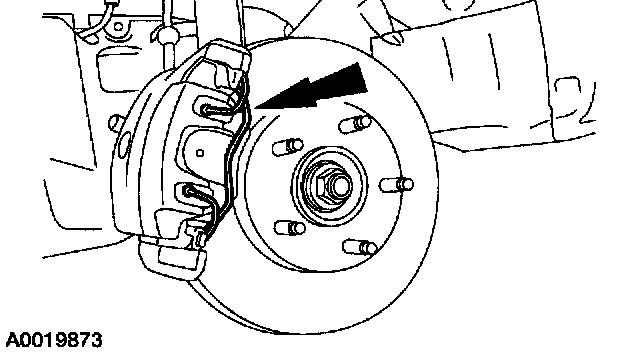

2. Remove the brake caliper clip.





3. Position the caliper aside.

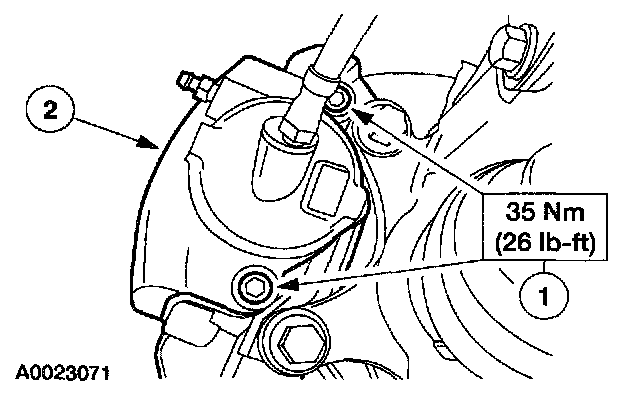

1 Remove the brake caliper bolt caps and the bolts.
2 Position the caliper aside and support.

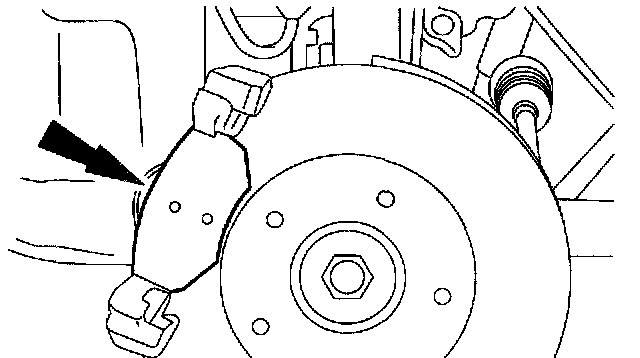

4. Remove the outboard brake pad.

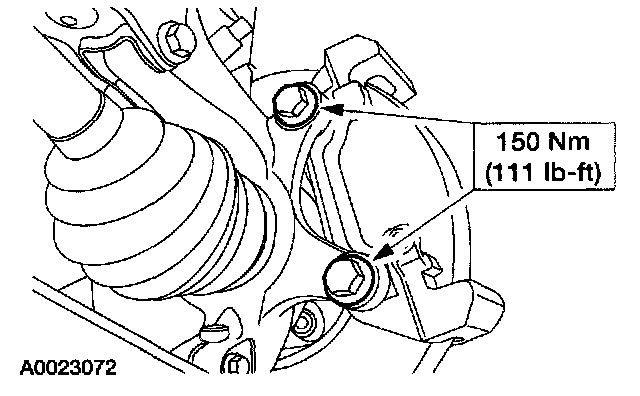

5. Remove the bolts and brake caliper anchor plate.
6. To install, reverse the removal procedure.
