Backing Plate: Service and Repair

Brake Backing Plate

Removal and Installation
1. Remove the rear wheel cylinder.
2. Remove the rear wheel hub.

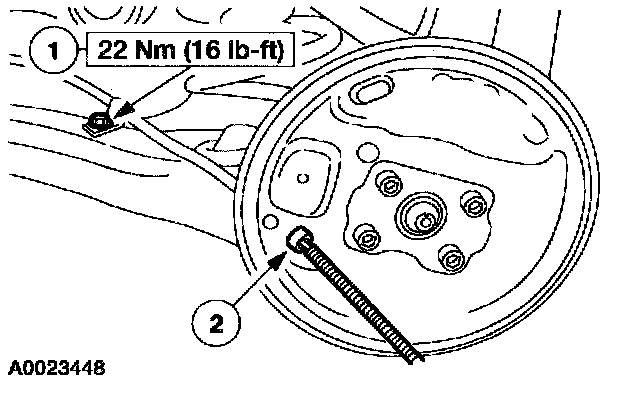

3. Remove the parking brake cable from the brake backing plate.
1 Remove the bolt.
2 Remove the parking brake cable.

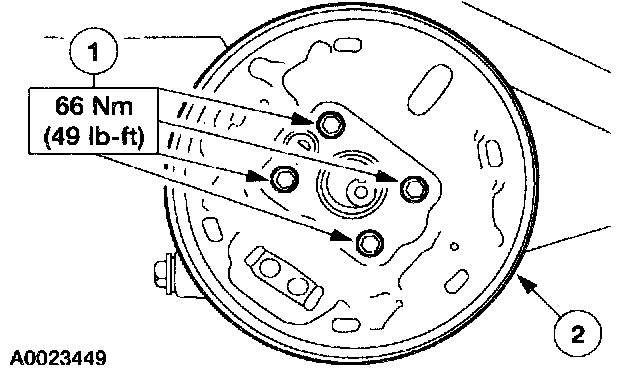

4. Remove the brake backing plate.
1 Remove the bolts.
2 Remove the brake backing plate.

5. To install, reverse the removal procedure.
