Caliper Removal and Installation

Brake Caliper

Removal

WARNING: Asbestos fiber dust may be present on brake and clutch assemblies and is hazardous to health if inhaled.

Brake and clutch assemblies should be cleaned using a vacuum cleaner recommended for use with asbestos fibers such as a brake/clutch/service vacuum. The bag must be labeled per OSHA instructions, sealed, and the trash hauler notified as to the bag's contents.

If a vacuum suitable for asbestos is not available, cleaning should be done wet. If dust generation is still possible, technicians should wear government-approved toxic dust purifying respirators. Failure to follow these instructions may result in personal injury.

1. Remove the wheel and tire assembly.

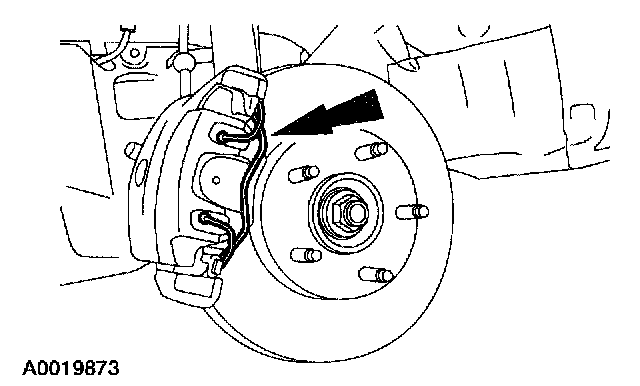

2. Remove the brake caliper clip





3. Position the caliper aside
1 Remove the brake caliper bolt caps and bolts
2 Position the caliper aside





4. WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

NOTE: When any part of the hydraulic system has been disconnected for repair or a new component has been installed, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be bled manually or with a Brake Bleeder.

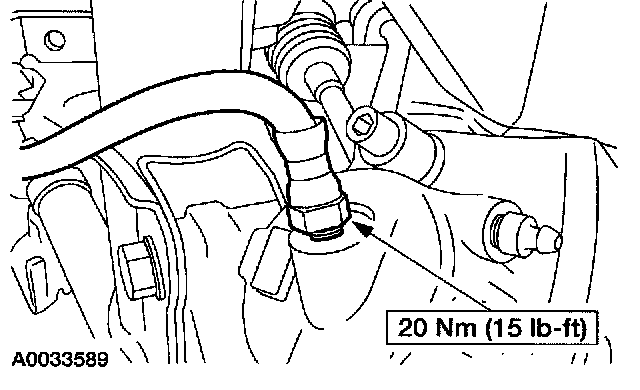

Disconnect and cap the brake line from the caliper and remove the caliper.

5. CAUTION: Do no use denatured alcohol for flushing the brake system or cleaning assemblies where alcohol could be trapped. If denatured alcohol is trapped, it can cause eventual failure of rubber components in the system.

CAUTION: Never allow any petroleum product or mineral oil to contact the inside of a brake hydraulic system. Mineral oil and petroleum products deteriorate the natural rubber seals used in brake hydraulic systems. If a brake system becomes contaminated, it must be flushed with clean brake fluid and all rubber seals and flex hoses replaced. Use High Performance DOT 3 Motor Vehicle Brake Fluid C6AZ-19542-AB or equivalent meeting Ford specification ESA-M6C25-A, DOT 3.

To install, reverse the removal procedure.
^ Bleed the brake system.
