Symptom Related Diagnostic Procedures

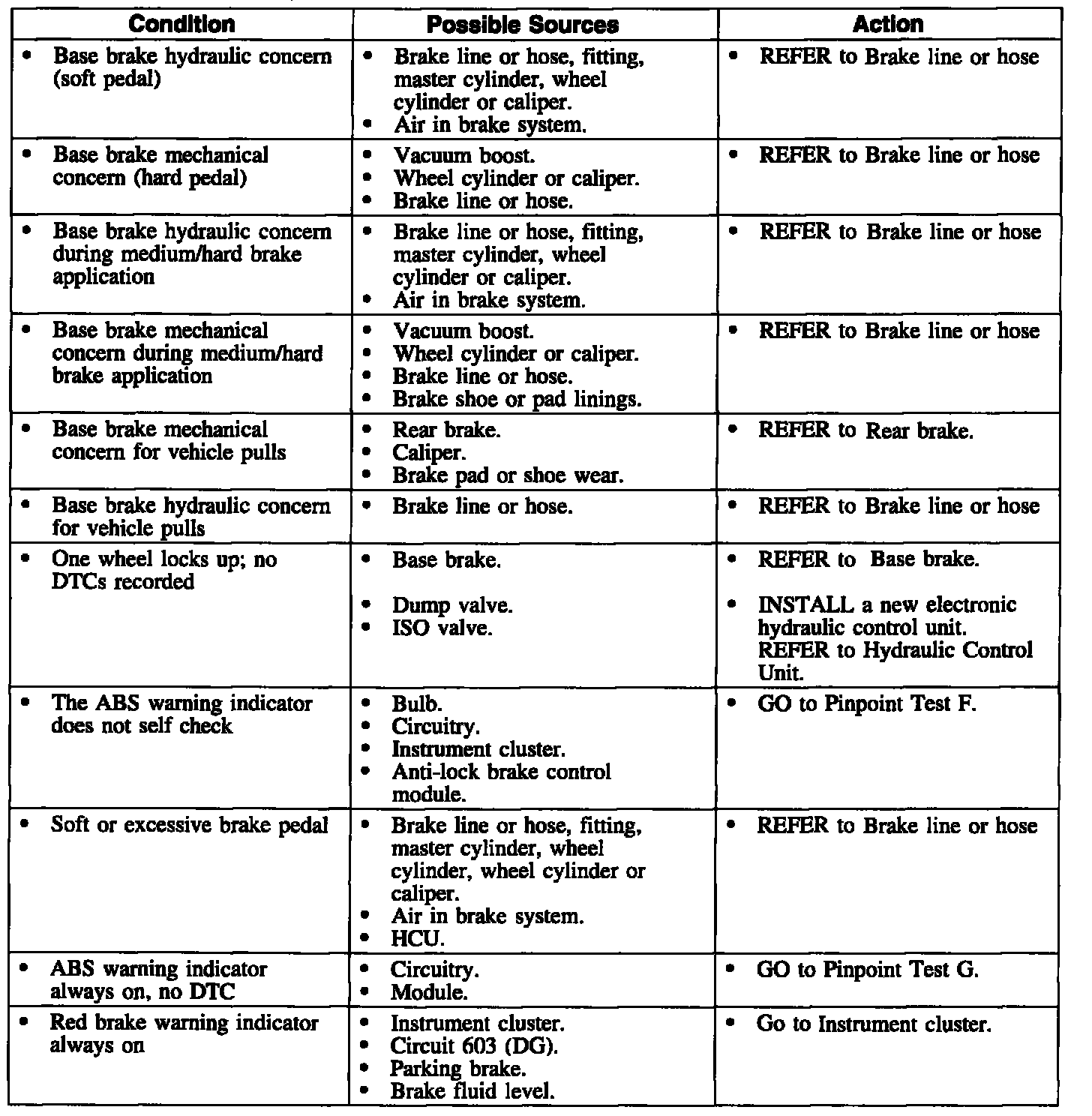

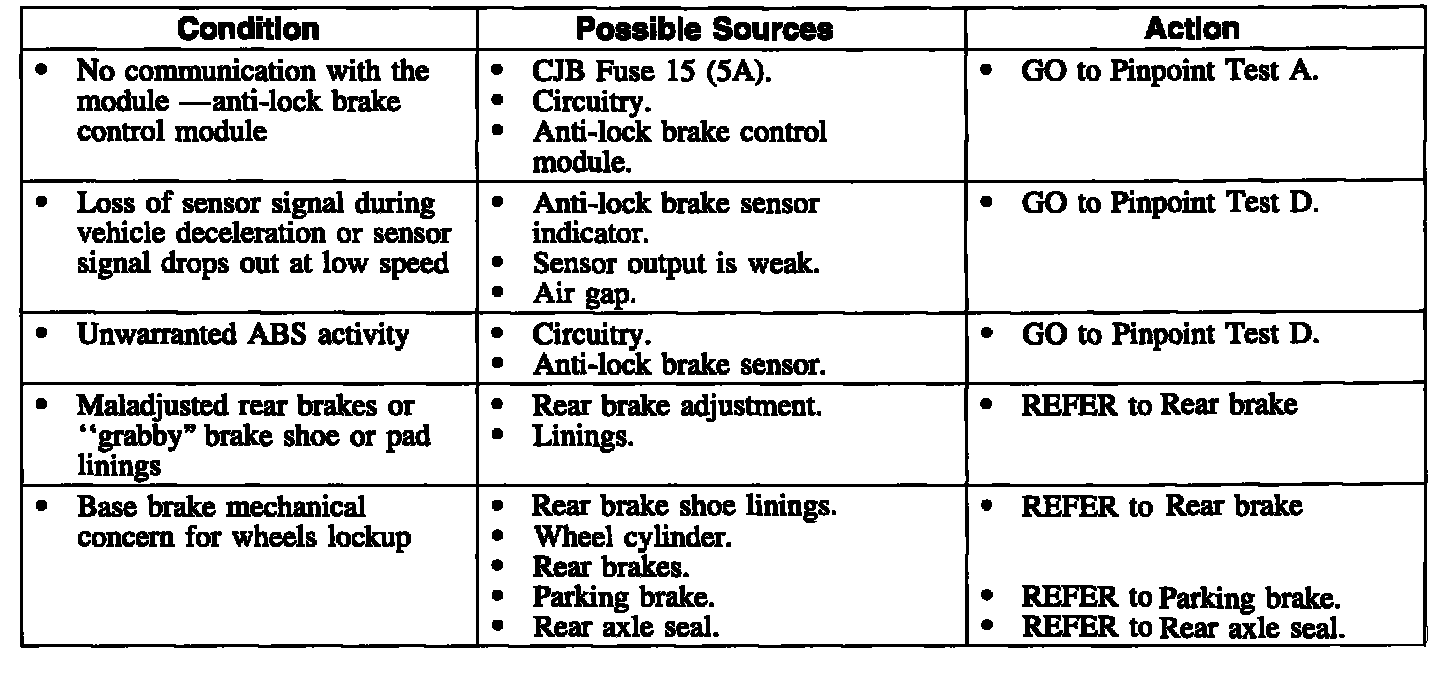

Symptom Chart









NOTE: Refer to Wiring Diagrams for connector numbers stated in the Pinpoint Tests.
