PINPOINT TEST C: DTC C1145 (RF) DTC C1155 (LF) DTC C1165 (RR) AND DTC C1175 (LR)- ANTI-LOCK BRAKE SENSOR INPUT CIRCUIT FAILURE

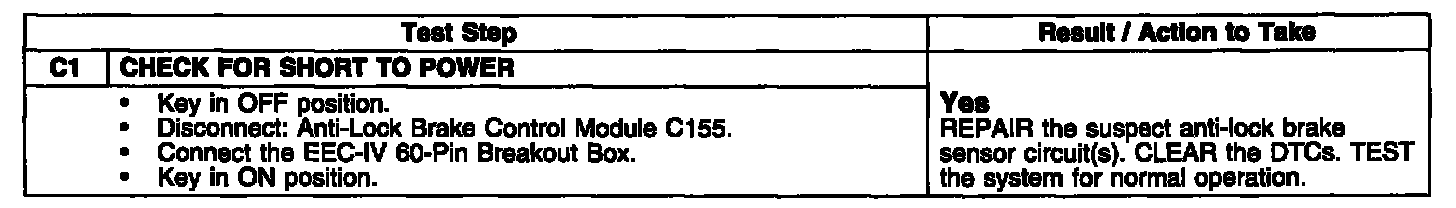

Test C1:

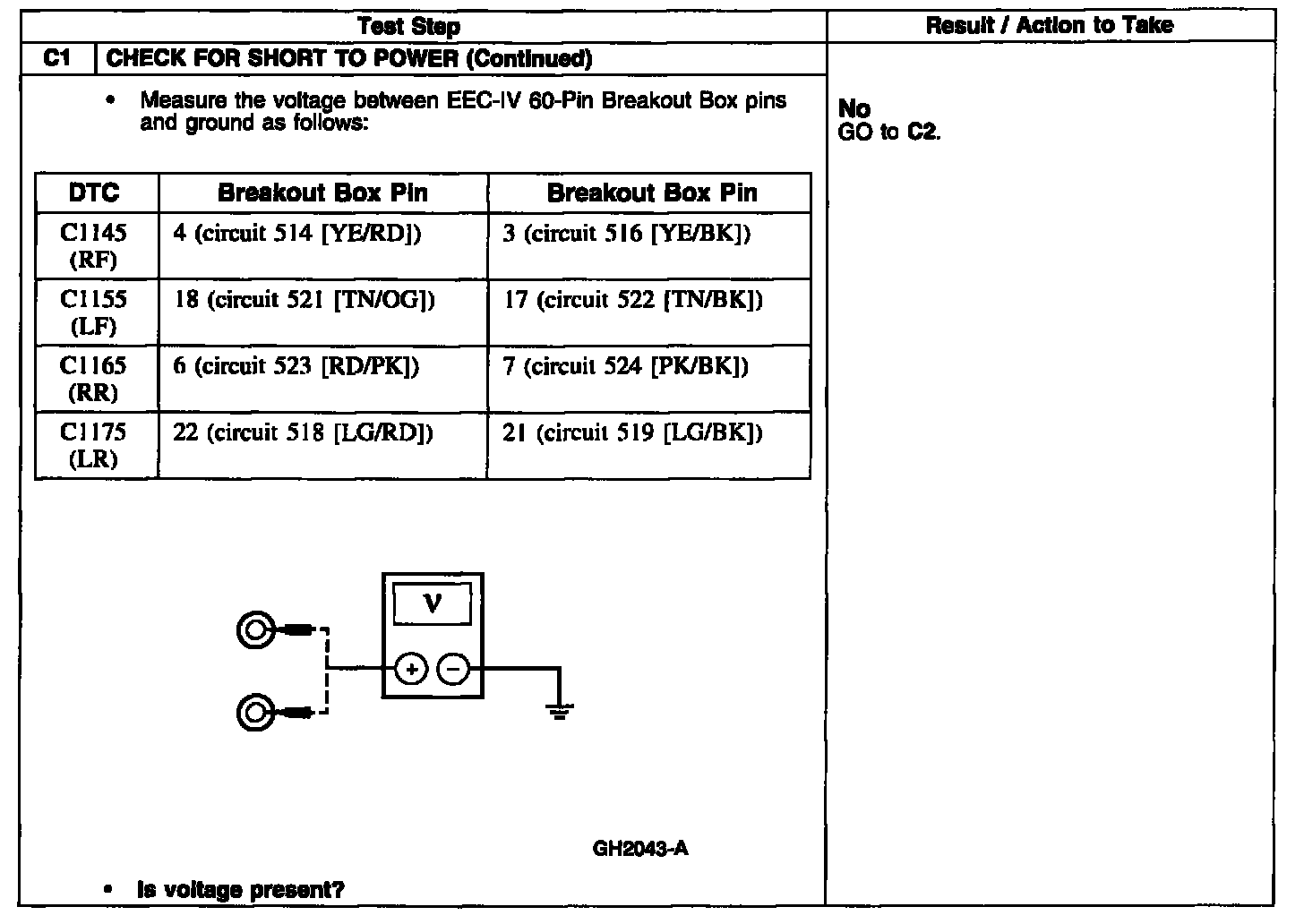

Test C1 Continued:

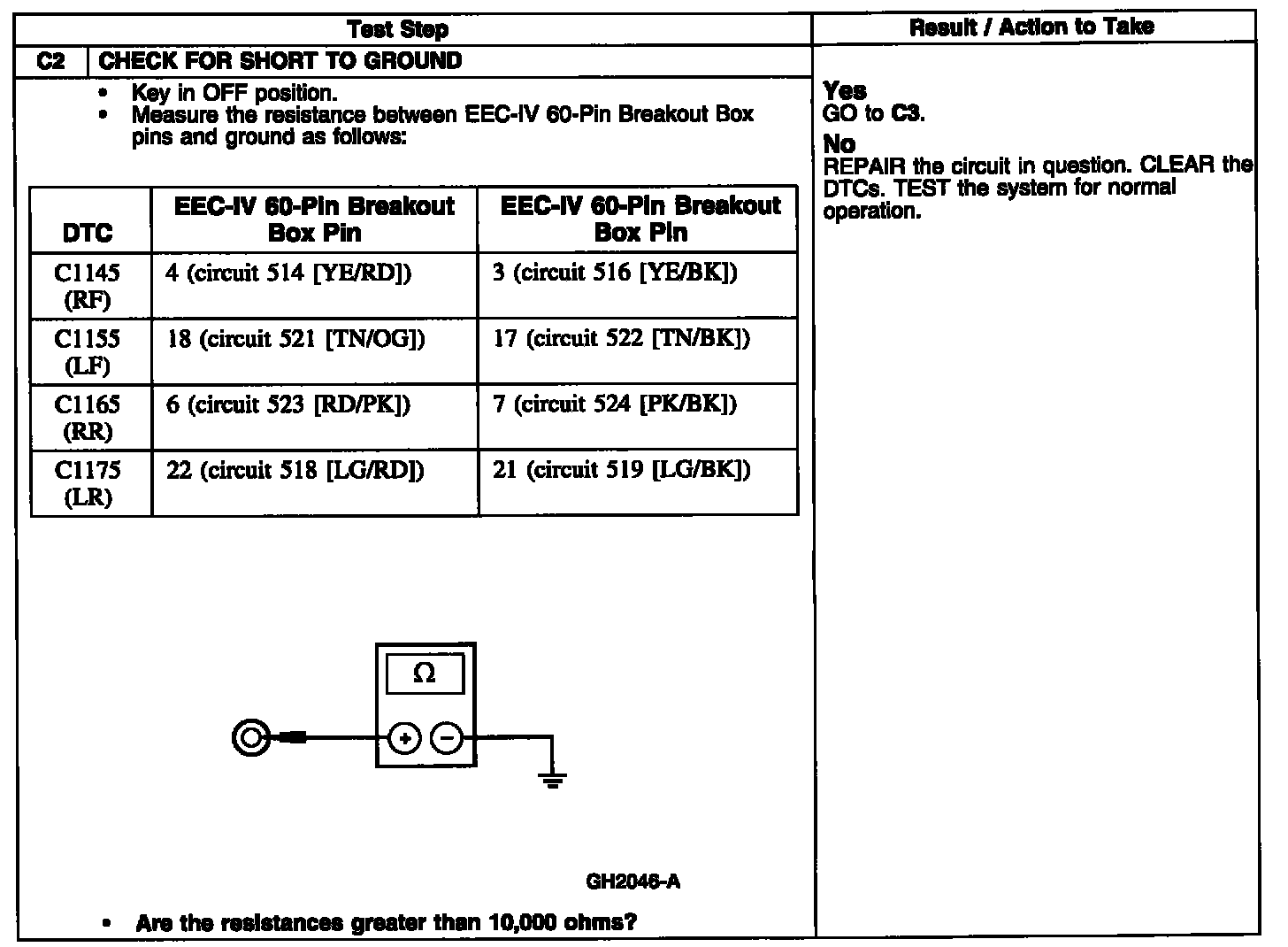

Test C2:

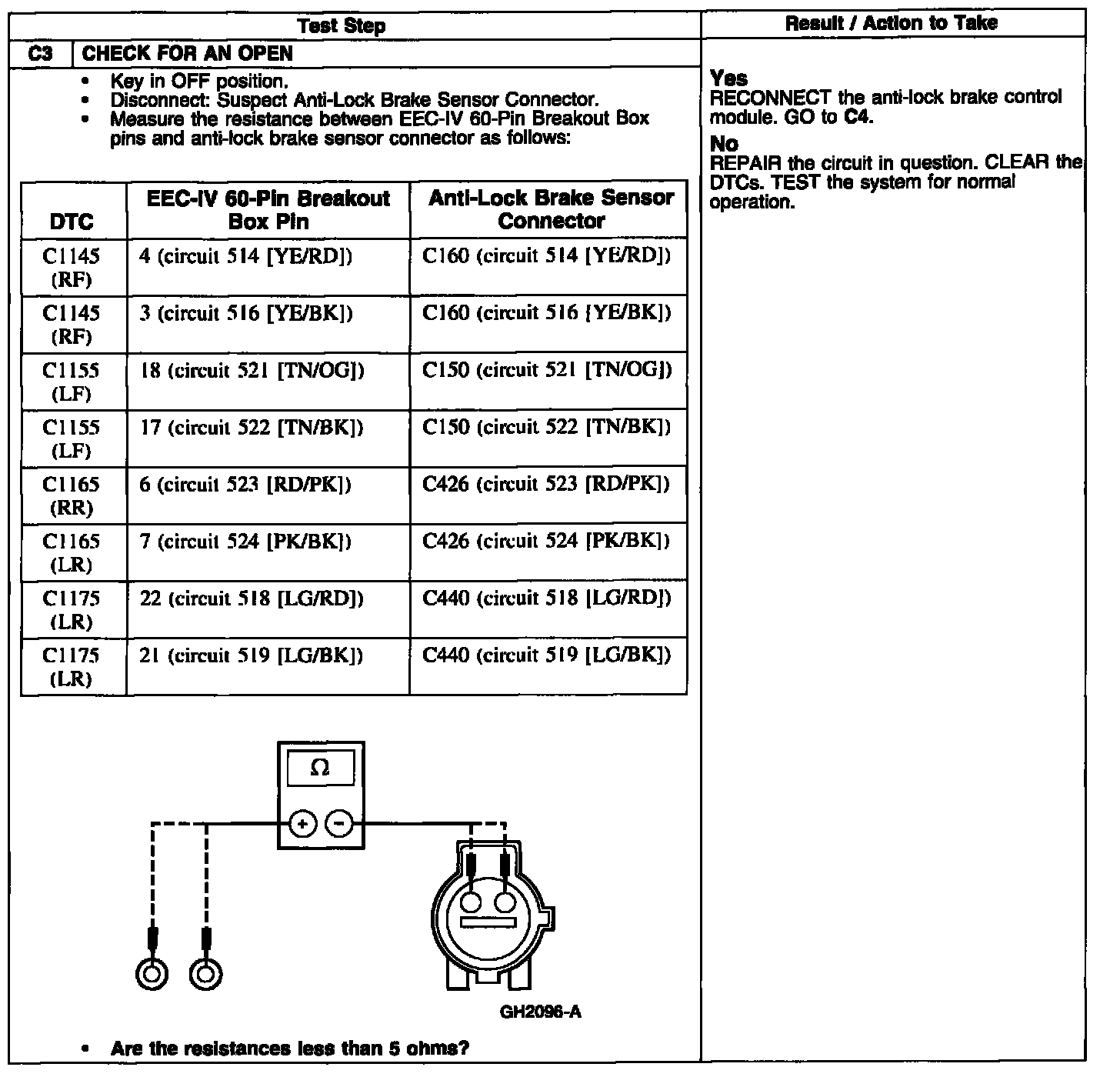

Test C3:

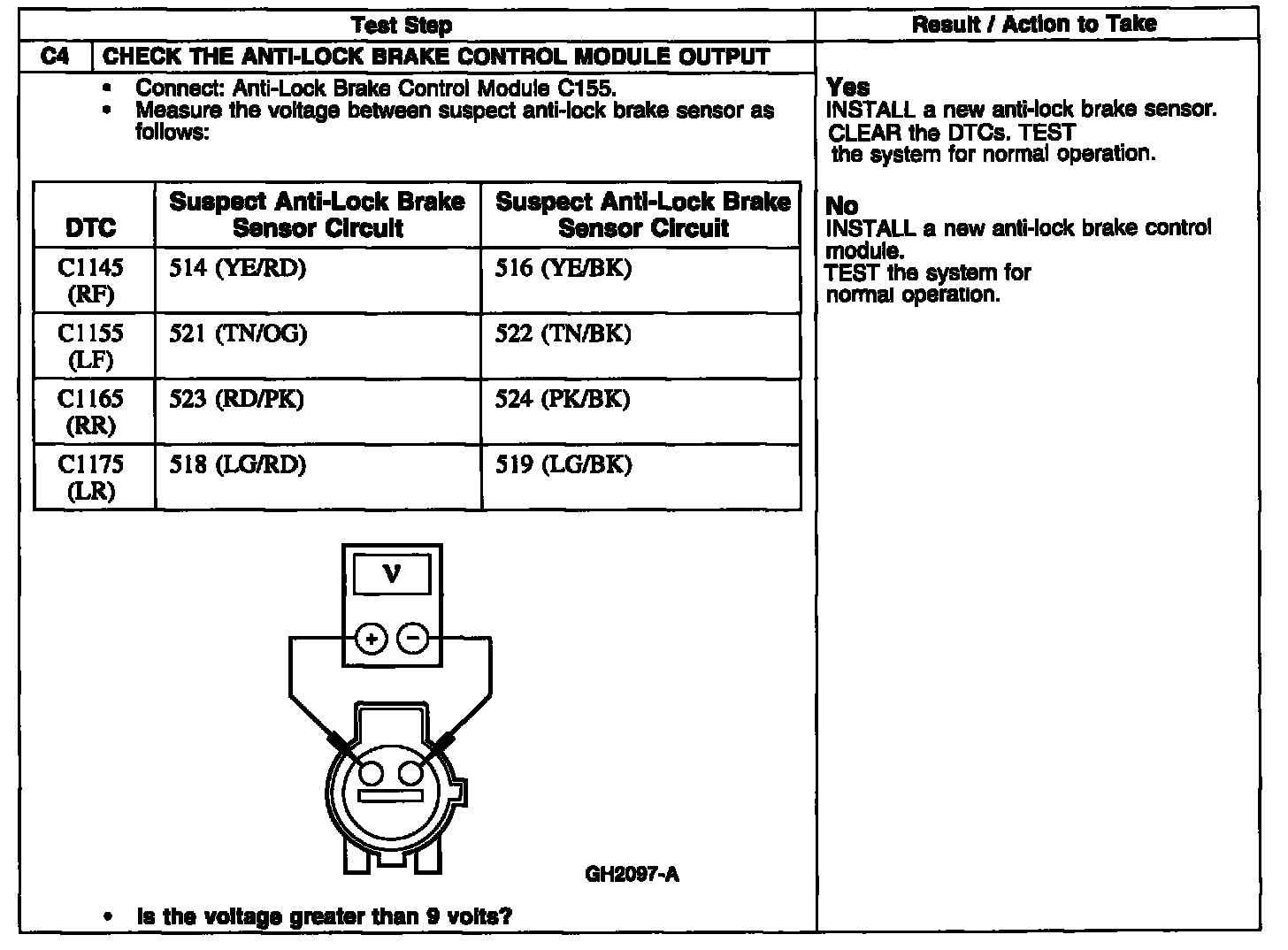

Test C4:
