Test A
Test A
PINPOINT TEST A: NO COMMUNICATION WITH THE MODULE - ANTI-LOCK BRAKE CONTROL

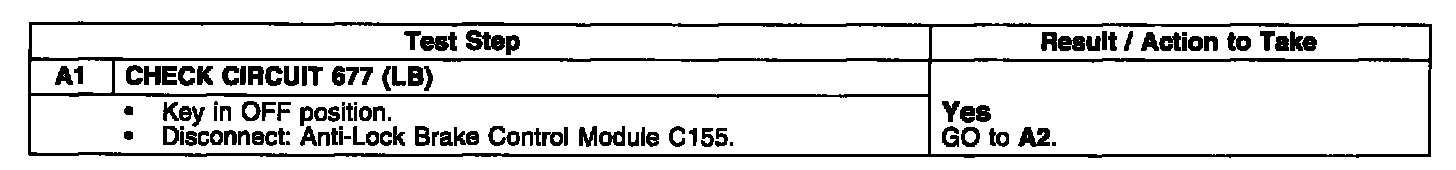

Test A1:

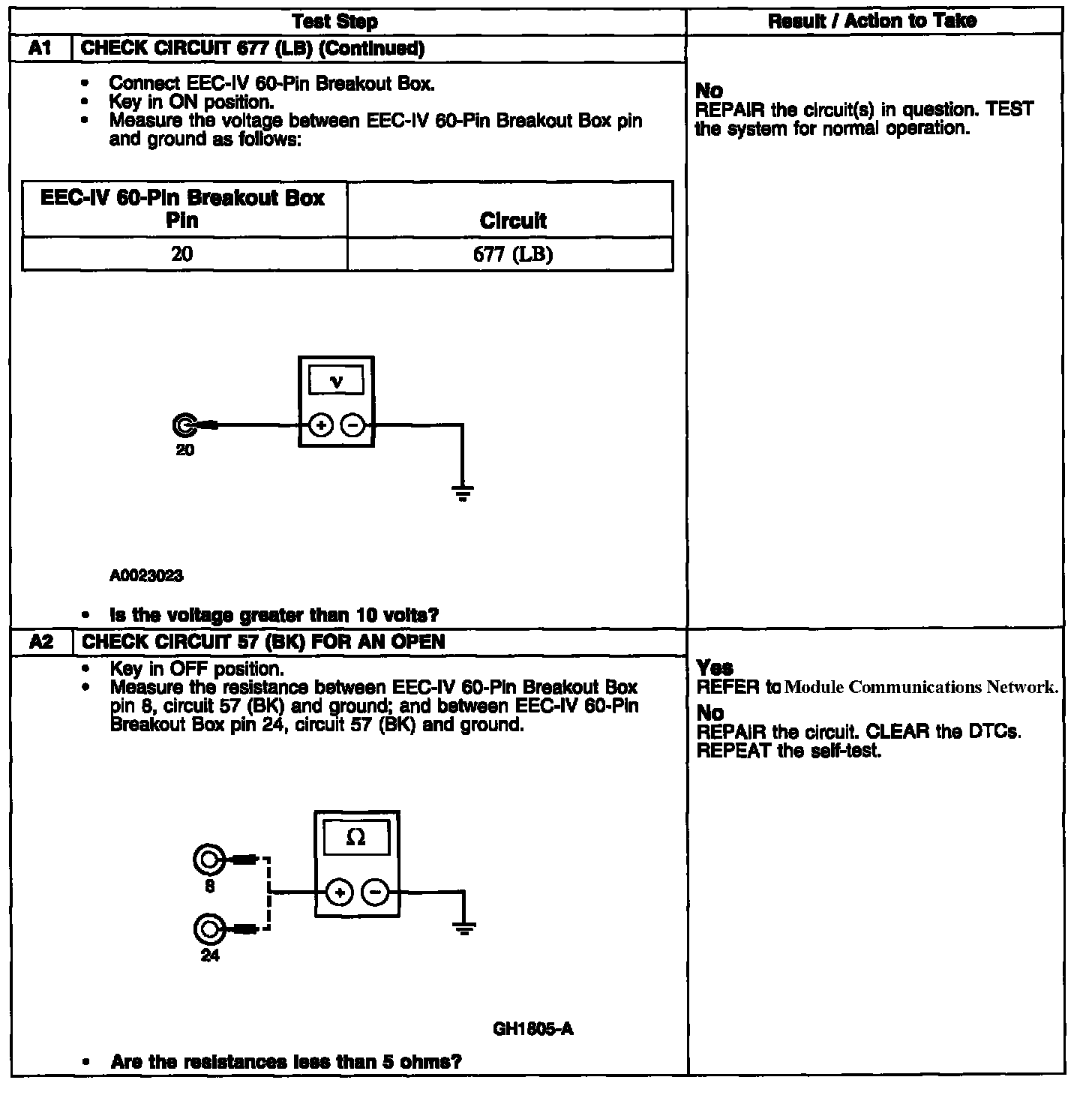

Test A1-A2:
