PINPOINT TEST C: THE HEATED SEAT IS INOPERATIVE
Test C1:

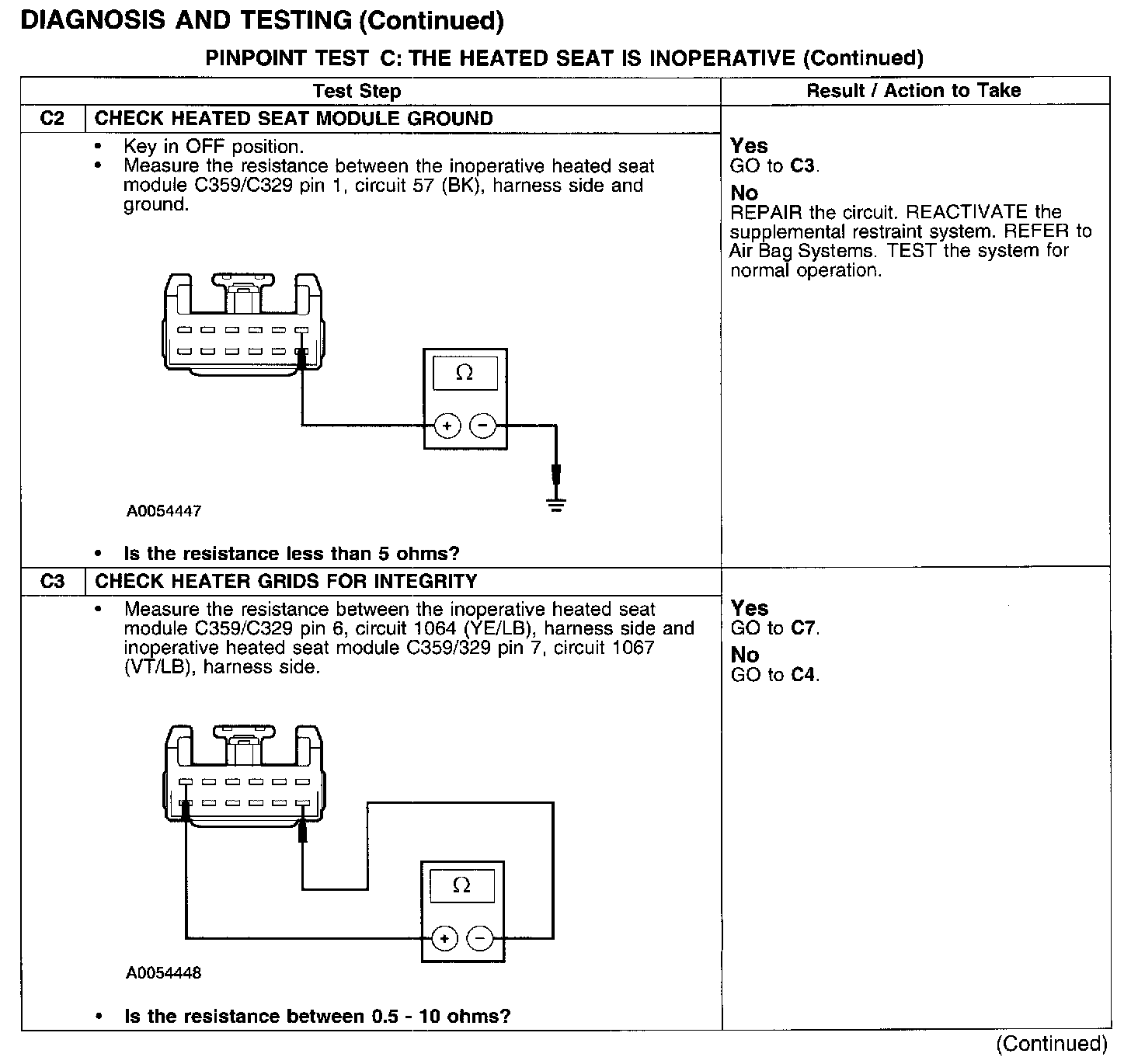

Test C2-C3:

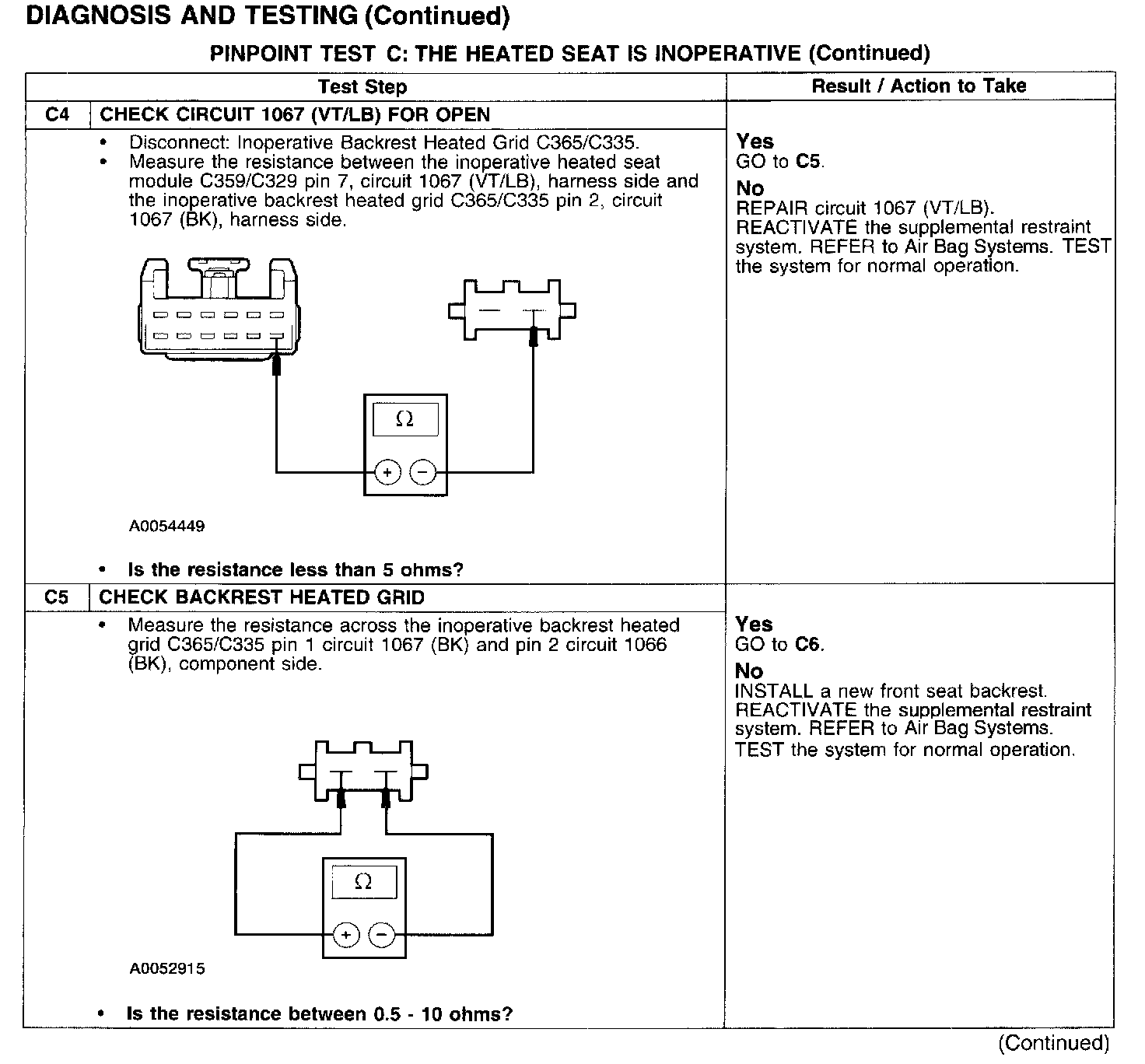

Test C4-C5:
Test C6-C7:

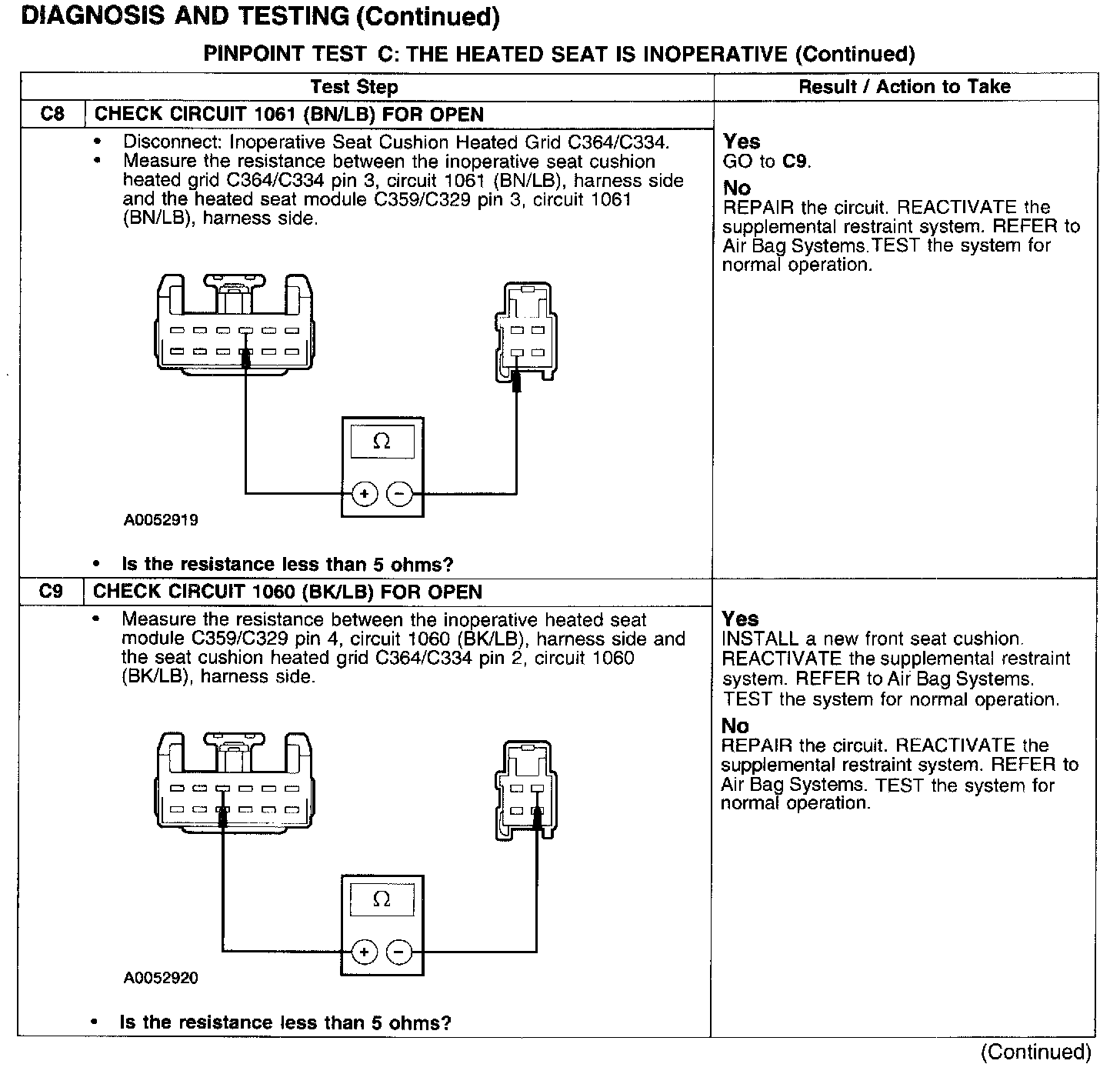

Test C8-C9:

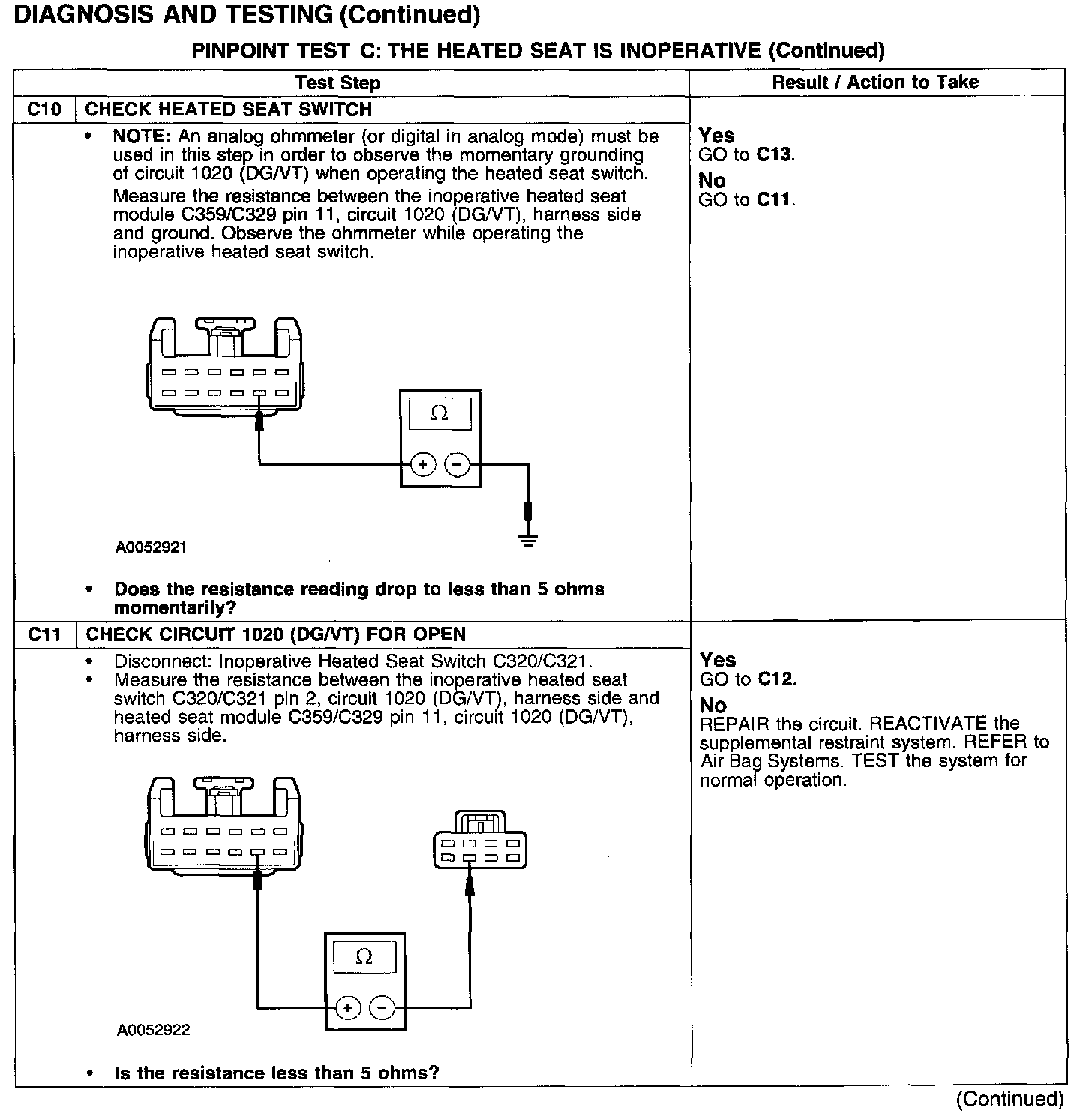

Test C10-C11:

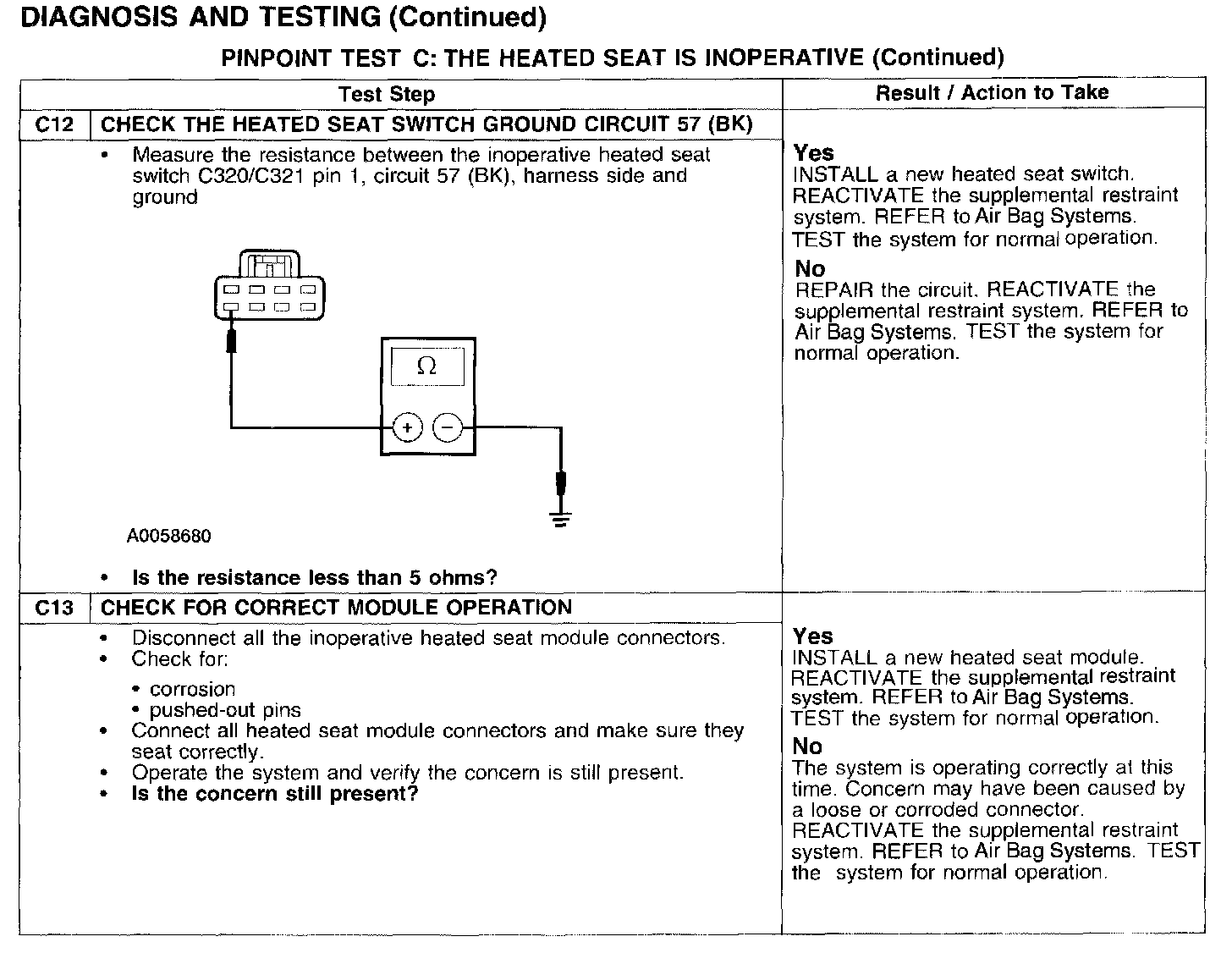

Test C12-C13:
