Split Bench

REAR SEAT BACKREST - SPLIT BENCH

REMOVAL

NOTE: The 40% rear seat backrest must be removed before the 60% rear seat backrest.

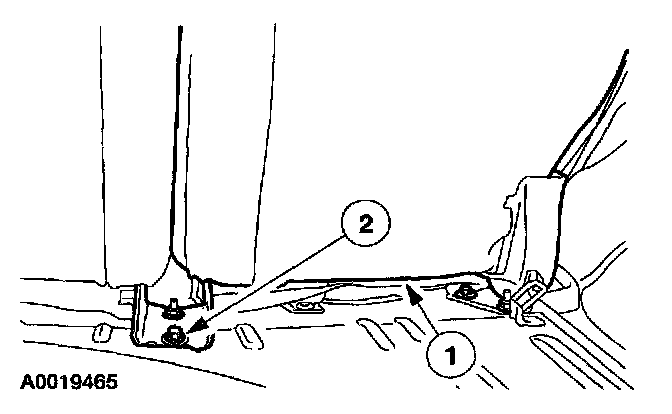

40% rear seat backrest







1. Remove the 40% rear seat backrest.
1 Remove the nuts and bolts.
2 Remove the backrest.

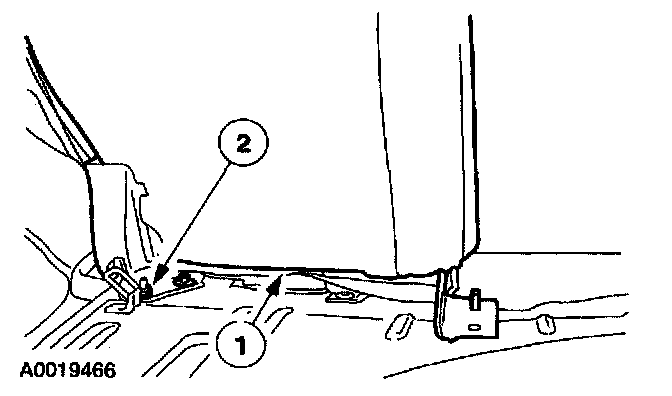

60% rear seat backrest







2. Remove the 60% rear seat backrest.
1 Remove the nut and bolt.
2 Remove the backrest.

INSTALLATION

NOTE: The 60% rear seat backrest must be installed before the 40% rear seat backrest.

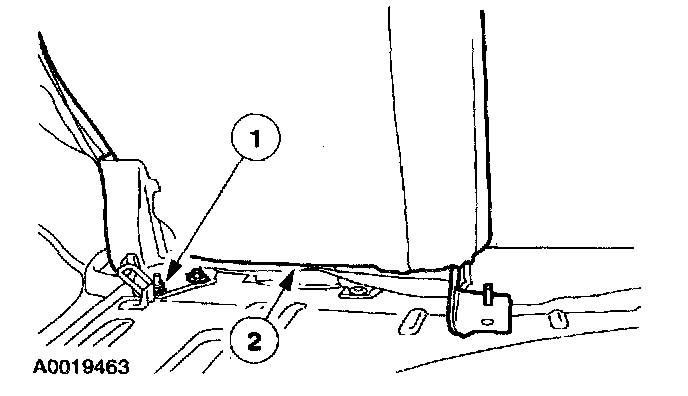

60% rear seat backrest







1. NOTE: Do not tighten the nut and bolt at this time.

Install the 60% rear seat backrest.
1 Install the rear seat backrest.
2 Install the nut and bolt.

40% rear seat backrest







2. NOTE: Do not tighten the nuts and bolts at this time.

Install the 40% rear seat backrest.
1 Install the rear seat backrest.
2 Install the nuts and bolts.

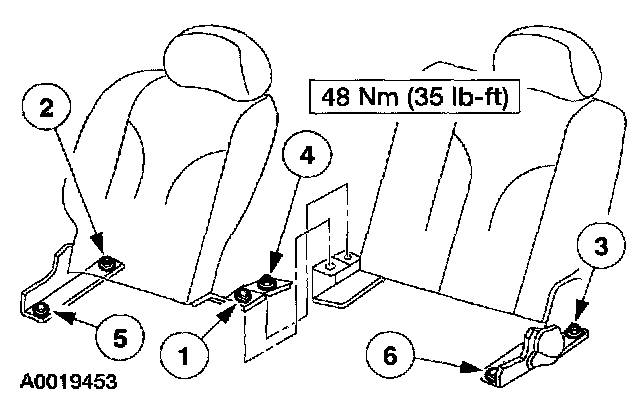

60/40% rear seat backrest







3. Tighten the 60/40% rear seat backrest nuts and bolts in the sequence shown.

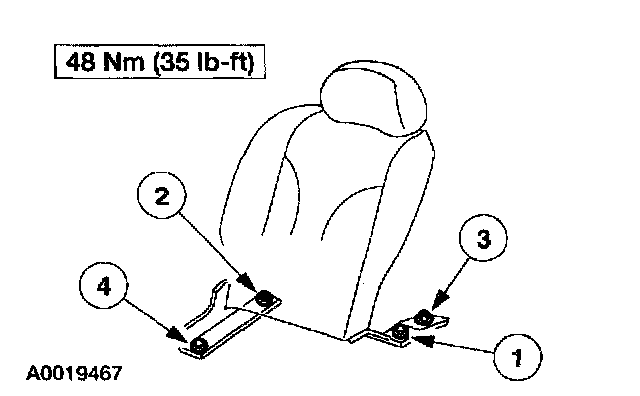

40% Rear Seat Backrest







4. Tighten the 40% rear seat backrest nuts and bolts in the sequence shown.
