Rear Seat Backrest
REAR SEAT BACKRESTDISASSEMBLY
NOTE: All rear seat backrests similar.
1. Remove the rear seat backrest.

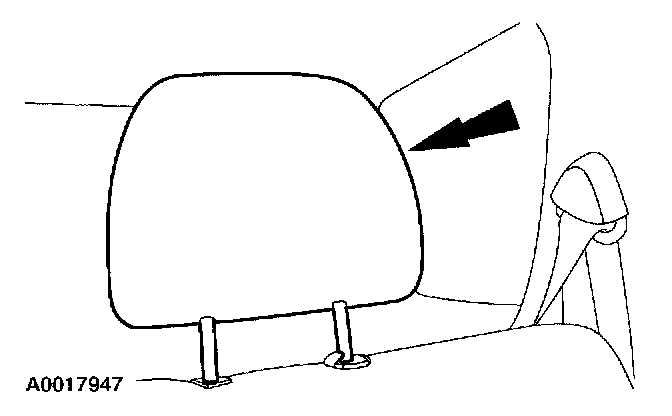

2. If equipped, remove the rear seat headrest(s).

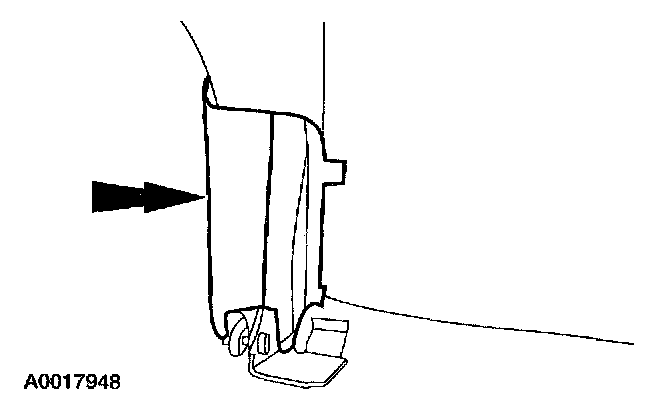

3. Remove the side trim panel(s).

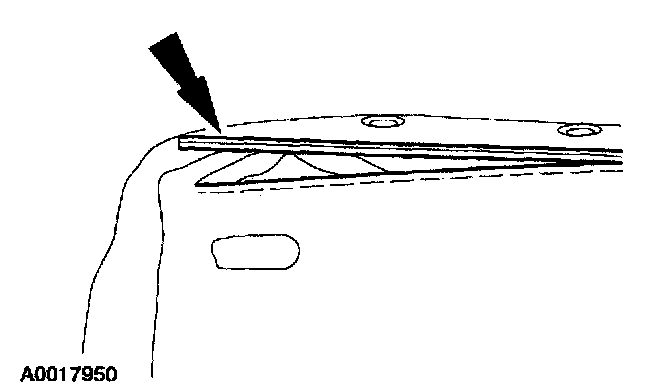

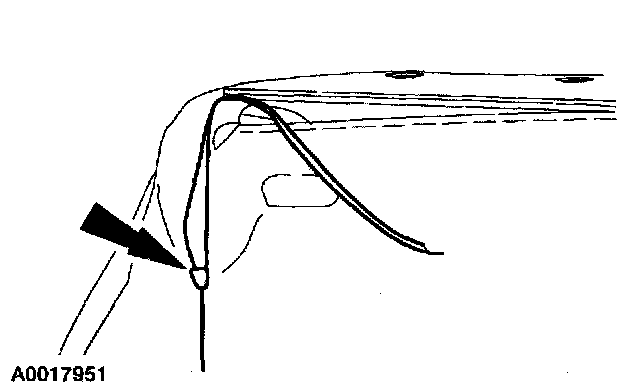

4. Unhook the seat backrest trim cover J-clip.
5. Remove the rear seat backrest latch(s).
1 Remove the bolt(s).
2 Remove the nut(s).
3 Remove the rear seat backrest latch(s).

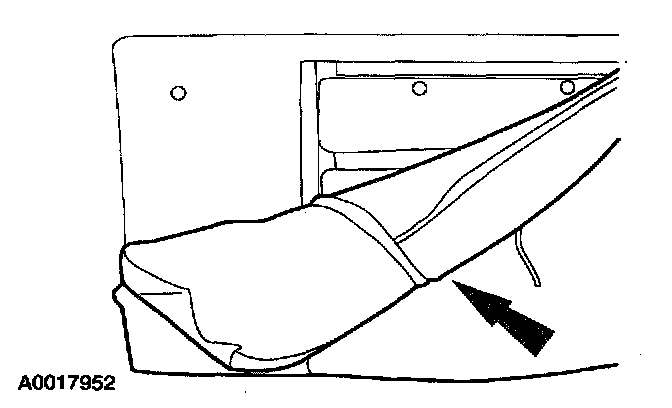

6. Unzip the rear seat backrest trim.

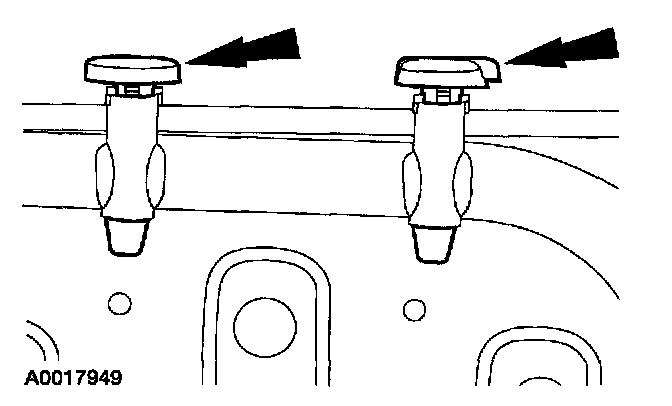

7. If equipped, remove the headrest guide posts.
8. Remove the seat backrest trim cover.
9. Remove the seat backrest frame from the seat backrest foam.
ASSEMBLY
1. To assemble, reverse the disassembly procedure.
