Seat Latch: Service and Repair

REAR SEAT BACKREST LATCH

REMOVAL
1. Remove the rear seat backrest.







2. Remove the rear seat backrest side trim panel.

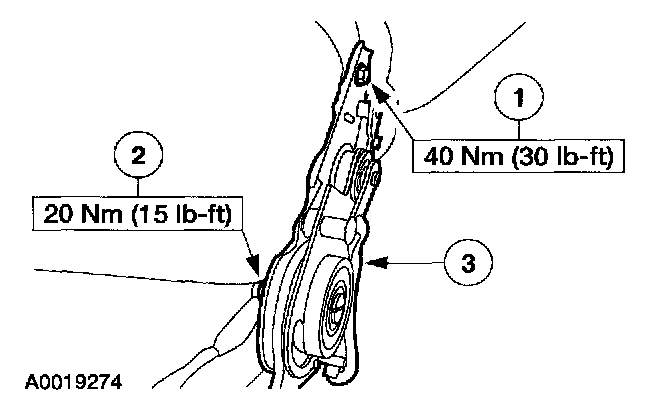

3. Remove the rear seat backrest latch.
1 Remove the bolt.
2 Remove the nut.
3 Remove the latch.

INSTALLATION
1. To install, reverse the removal procedure.
