Rear Seat

REAR SEAT CUSHION

DISASSEMBLY

NOTE: 60% split bench seat shown, 40% and bench seat similar.

1. Lift up the rear seat cushion.







2. Remove the rear seat cushion.

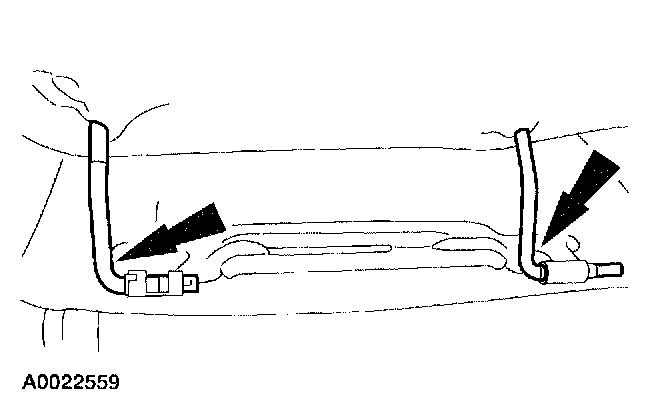

- Pull up on release lever and slide the seat out of the floor bracket.

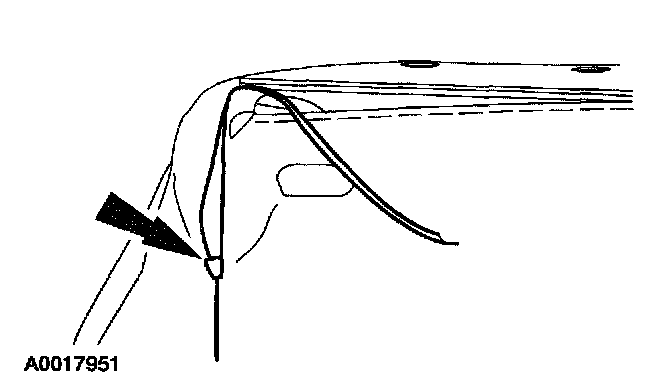

3. Release the J-retainer.







4. Unzip the rear seat cushion trim.







5. Remove the rear seat cushion trim from the rear seat cushion pad.

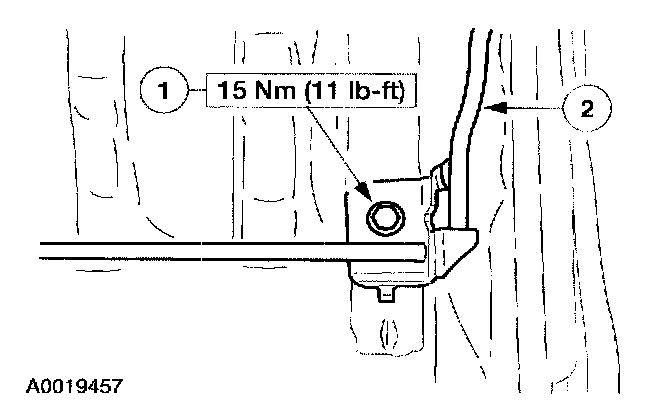

6. Remove the rear seat cushion bracket.
1 Remove the two bolts.
2 Remove the rear seat cushion bracket

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
