PINPOINT TEST E: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE

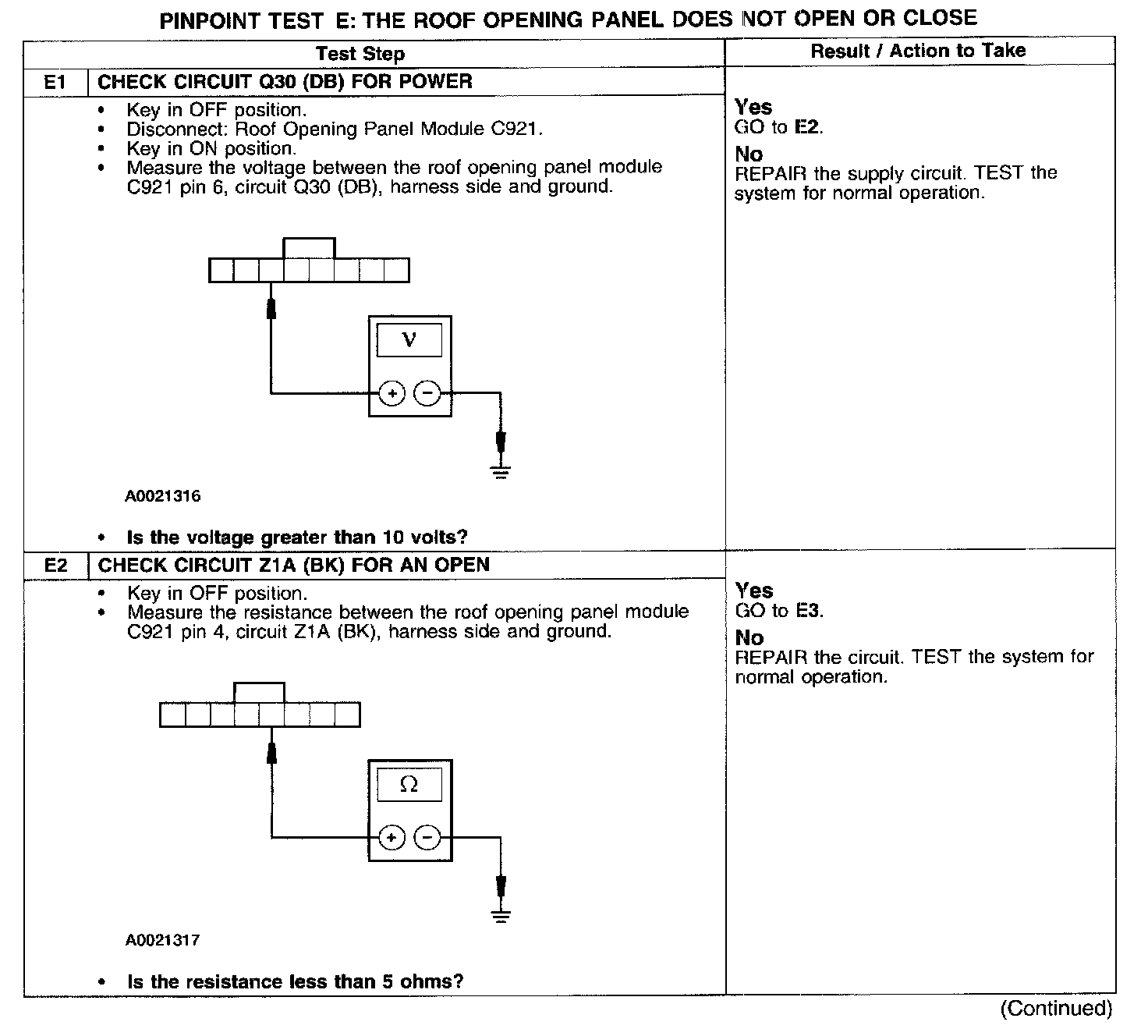

Test E1-E2:

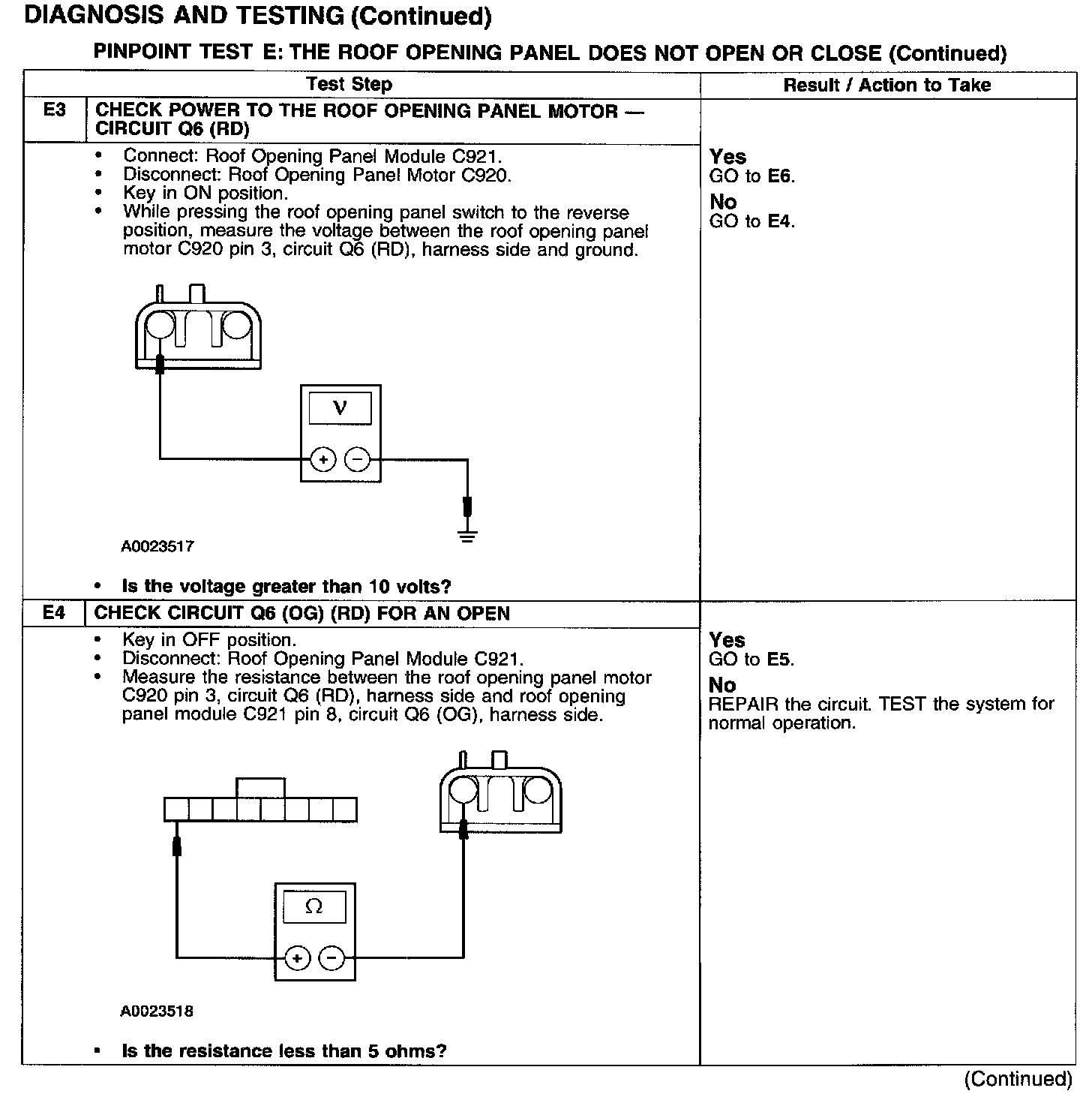

Test E3-E4:

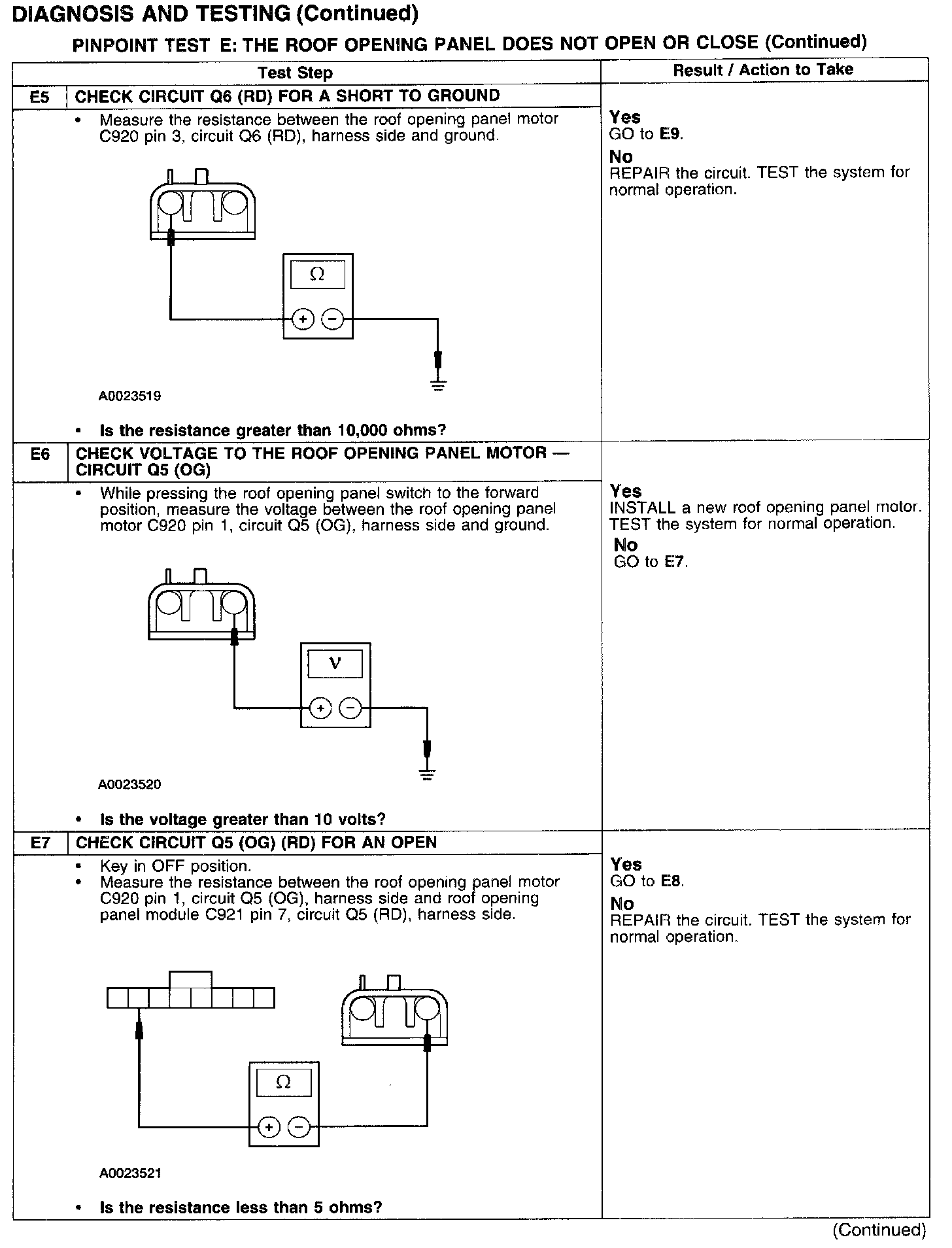

Test E5-E7:

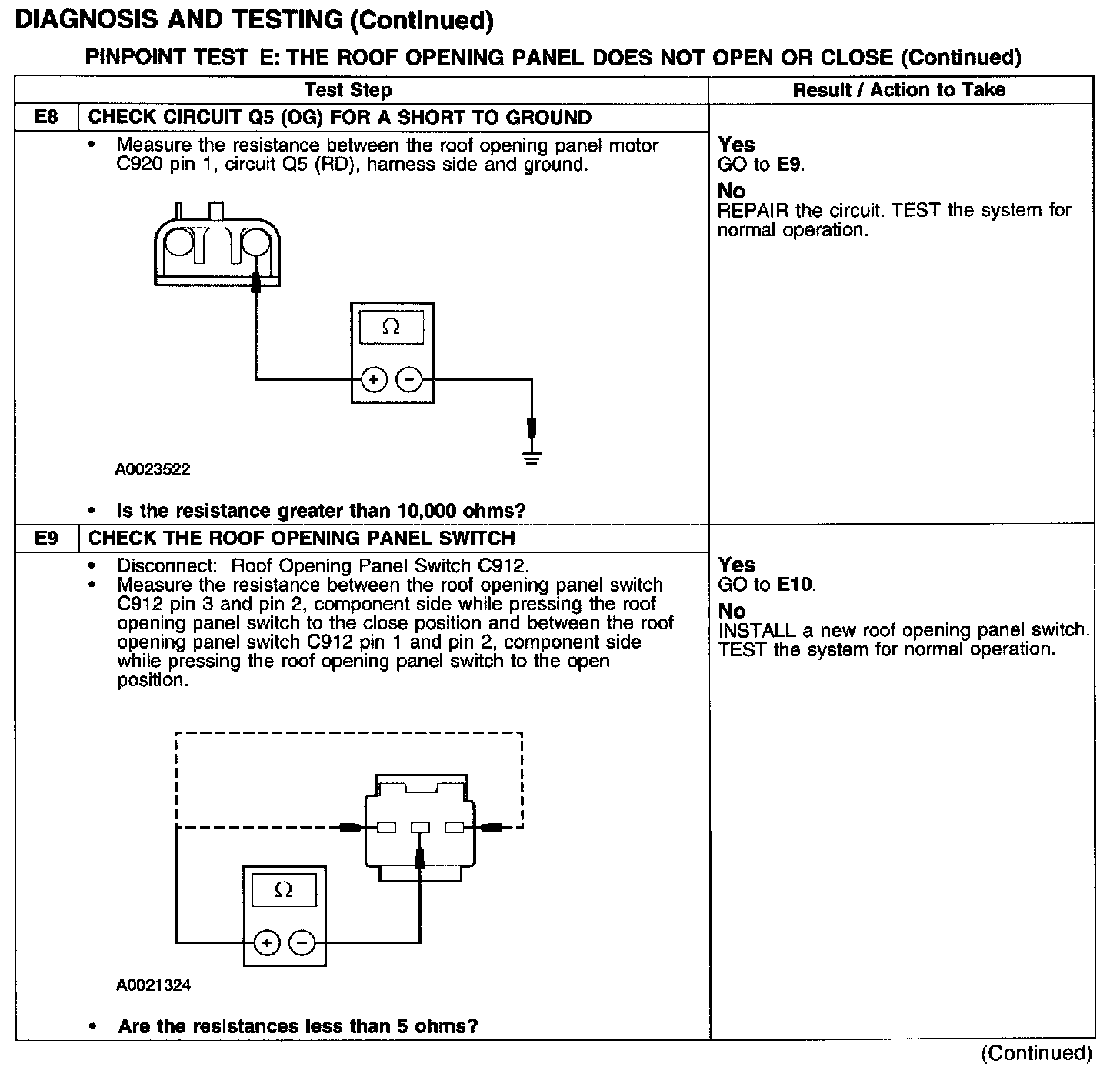

Test E8-E9:

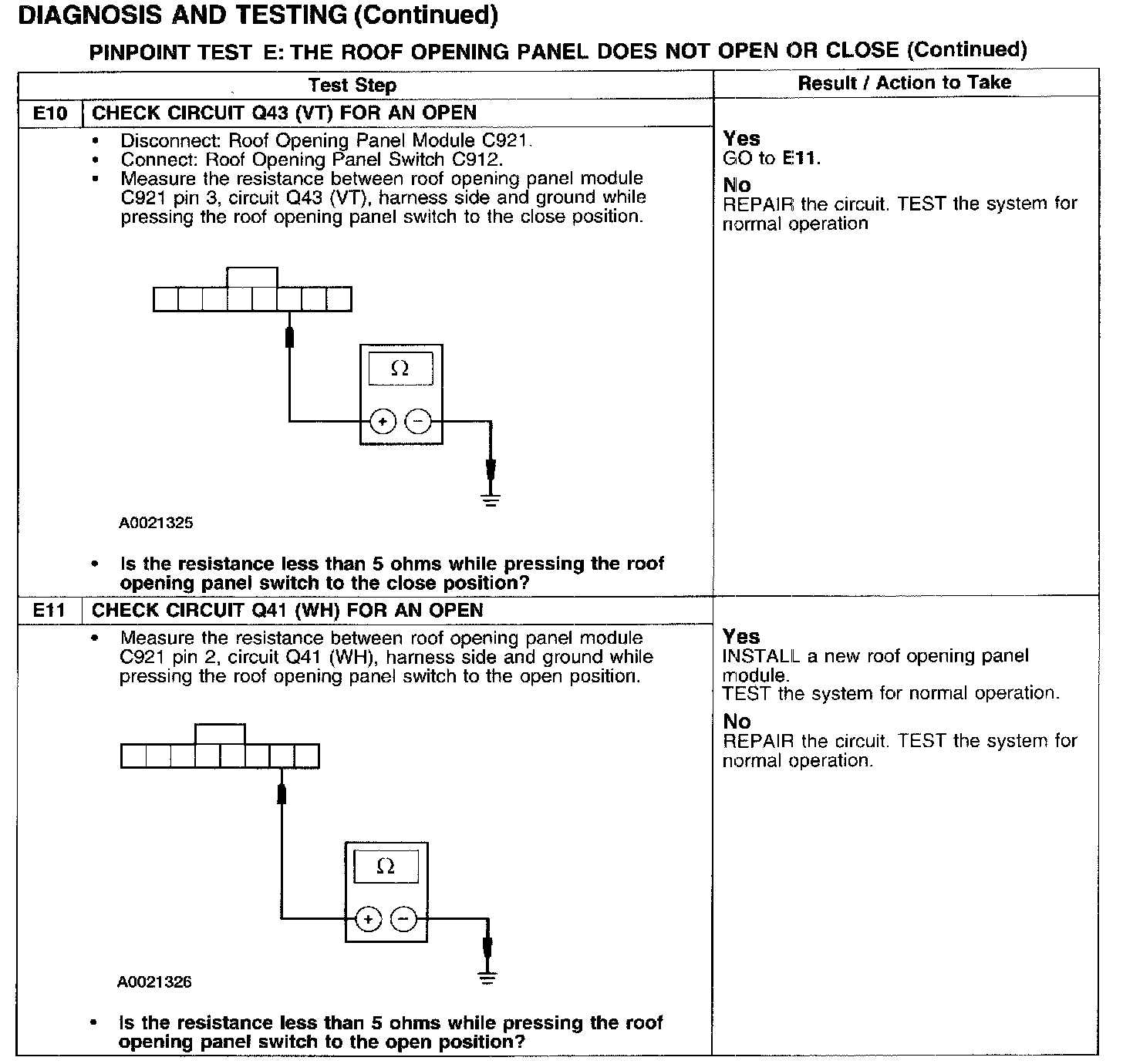

Test E10-E11:
