Sunroof / Moonroof Motor: Service and Repair

ROOF OPENING PANEL MOTOR

REMOVAL
1. Close the roof opening panel.
2. Remove the headliner.

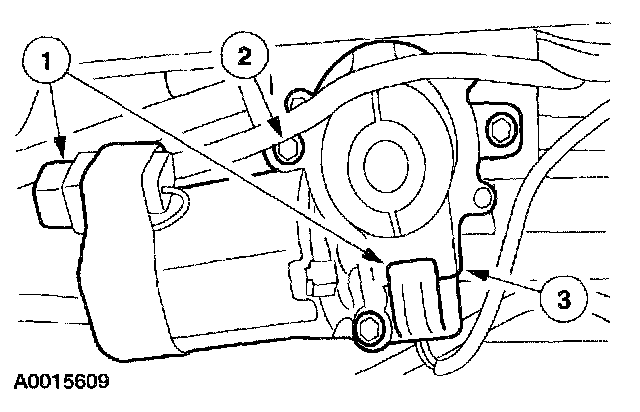

3. Remove the roof opening panel motor.
1 Disconnect the electrical connectors.
2 Remove the bolts.
3 Remove the roof opening panel motor.

INSTALLATION

1. NOTE: The roof opening panel should be in the closed position.

Connect the roof opening panel motor electrical connector.

2. With the motor still removed, bump the roof opening panel switch one time only towards the close or vent open position.

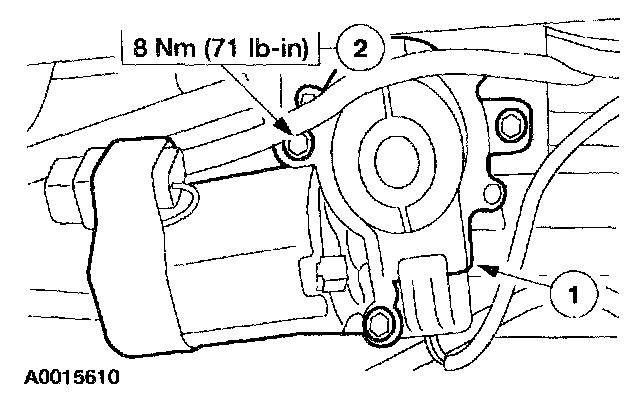

3. Install the roof opening panel motor.
1 Position the roof opening panel motor
2 Install the bolts.

4. Check for correct operation of the roof opening panel motor.
5. Install the headliner.
