ROOF OPENING PANEL FRAME

REMOVAL
1. Remove the headliner.

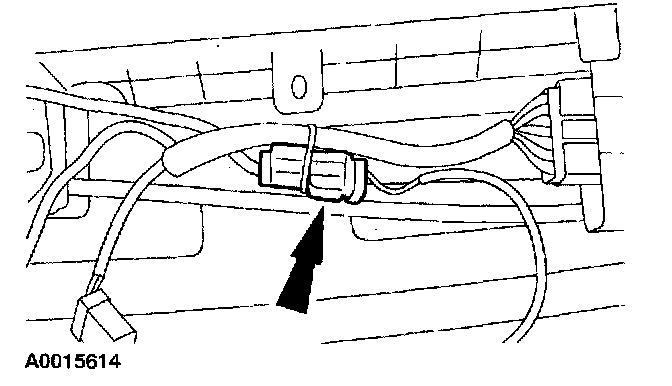

2. Disconnect the in-line electrical connector.

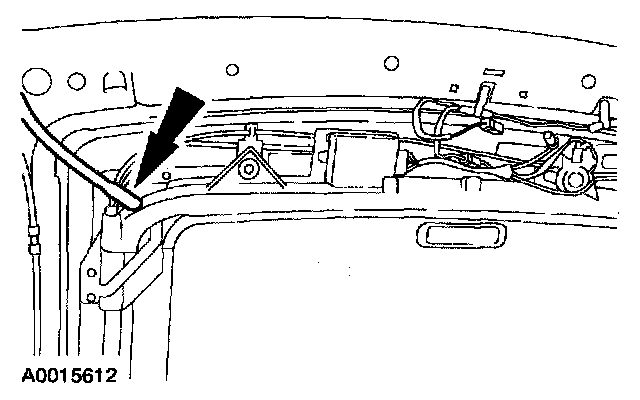

3. Disconnect the four roof opening panel drain hoses.

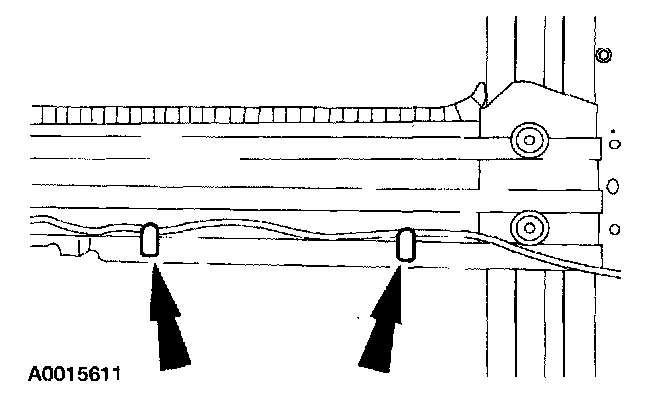

4. Release the wire harness locators.







5. Remove the roof opening panel frame.
1 Remove the eight roof opening panel frame bolts.
2 Remove the roof opening panel frame.

INSTALLATION
1. To install, reverse the removal procedure.
