Roof Opening Panel Rear Drain Hose

ROOF OPENING PANEL REAR DRAIN HOSE

REMOVAL
1. Remove the headliner.

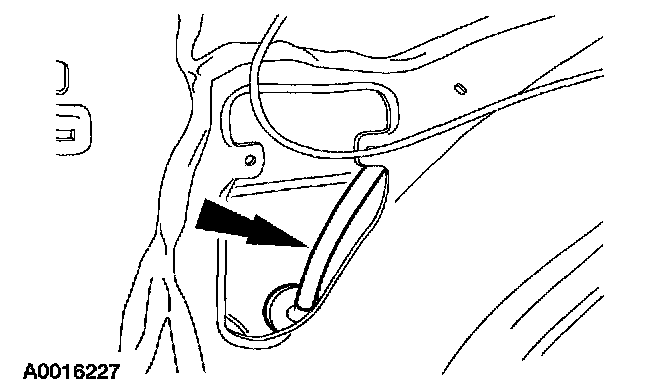

2. Disconnect the roof opening panel rear drain hose.

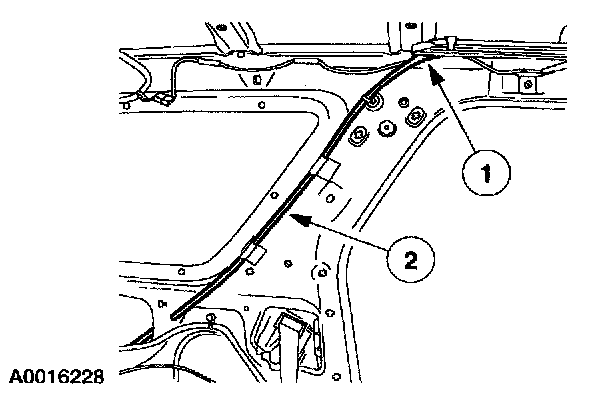

3. Remove the roof opening panel rear drain hose.
1 Disconnect the roof opening panel rear drain hose from the roof opening panel frame.
2 Remove the roof opening panel rear drain hose.
- Remove the tape securing the roof opening panel drain hose.

INSTALLATION
1. To install, reverse the removal procedure.
