Roof Opening Panel Front Drain Hose

ROOF OPENING PANEL FRONT DRAIN HOSE

REMOVAL

Passenger side
1. Remove the instrument panel.

All
2. Remove the headliner.







3. Disconnect the roof opening panel front drain hose at the front body pillar.







4. Remove the roof opening panel front drain hose.

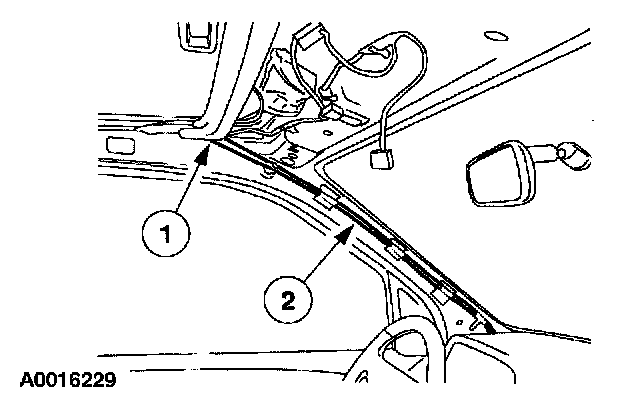

1 Disconnect the roof opening panel front drain hose from the roof opening panel frame.
2 Remove the roof opening panel front drain hose.
- Remove the tape securing the roof opening panel front drain hose.

INSTALLATION
1. To install, reverse the removal procedure.
