Roof Opening Panel

ROOF OPENING PANEL

REMOVAL

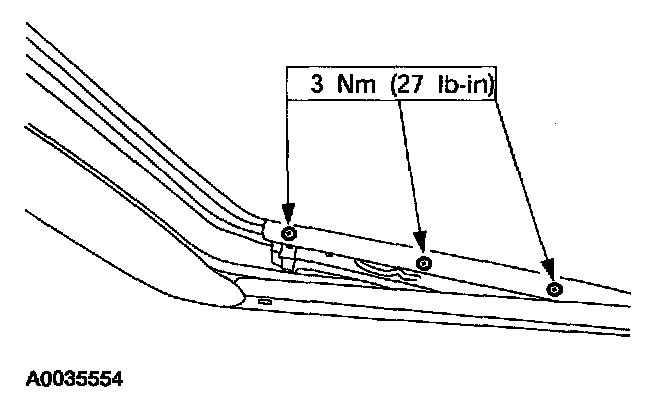

1. Open the roof opening panel to the vent position.

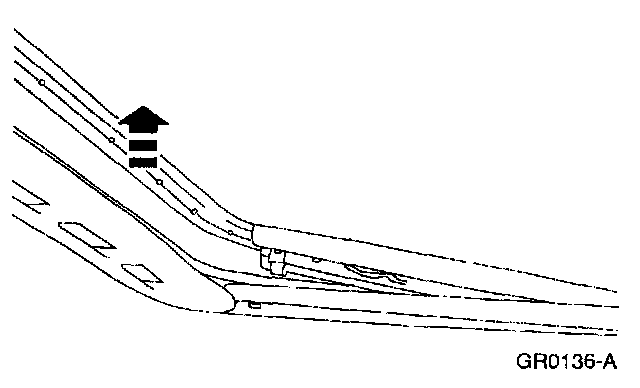

2. Remove the six roof opening panel bolts.

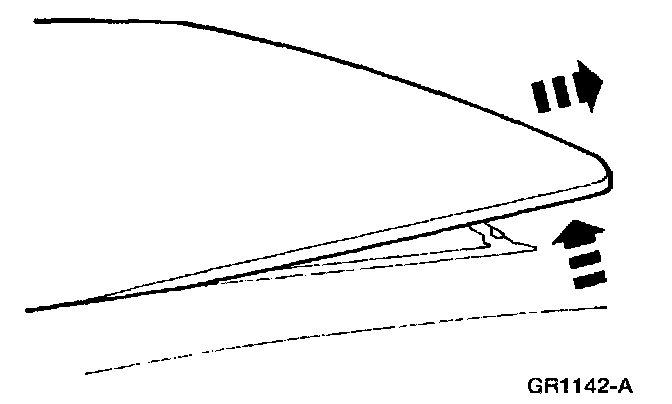

3. From outside the vehicle, remove the roof opening panel.

INSTALLATION
1. To install, reverse the removal procedure.
- Check for correct alignment of the roof opening panel.
