Sunroof / Moonroof: Adjustments

ROOF OPENING PANEL ALIGNMENT

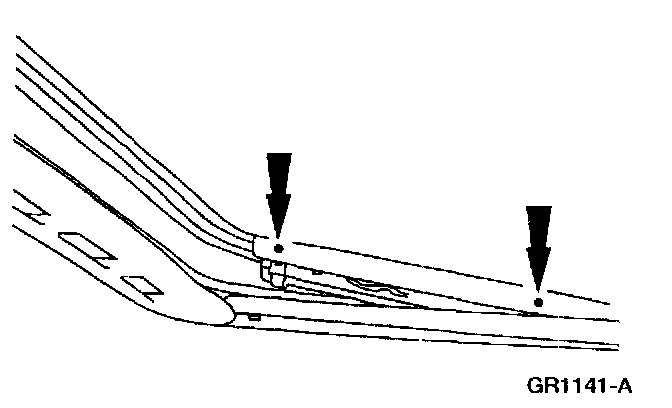

1. Loosen the four roof opening panel bolts.
2. Close the roof opening panel.

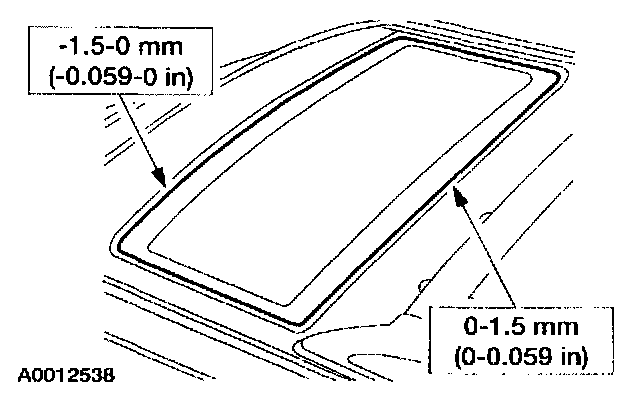

3. NOTE: The correct position of the roof opening panel to the roof panel should be 0 to 1.5 mm (0.059 in) above the roof panel at the rear edge and -1.5 mm (-0.059 in) to 0 below the roof panel at the front edge of the panel.

Adjust the roof opening panel.

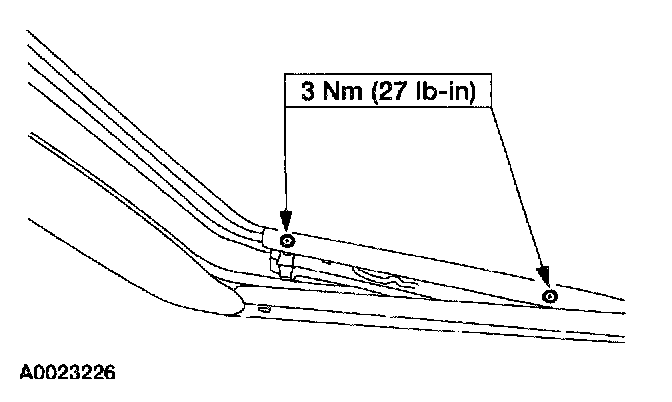

4. Tighten the roof opening panel bolts.
