Interior Rear View Mirror

INTERIOR REAR VIEW MIRROR

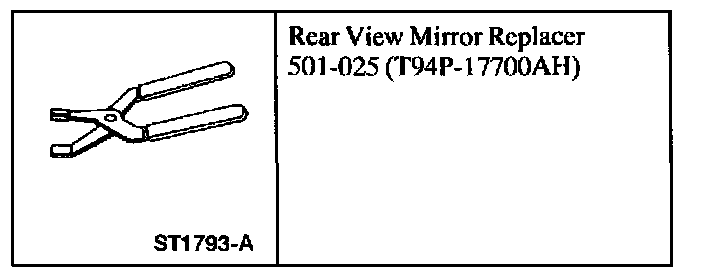

Rear View Mirror Replacer:

SPECIAL TOOL(S)

REMOVAL

Vehicles with auto-dimming interior rear view mirror







1. Disconnect the electrical connector.

All vehicles

2. CAUTION: The interior rear view mirror is of the breakaway design. Excessive force in any direction may cause damage to the mirror or windshield.

Remove the interior rear view mirror.
- Position the mirror in the full up position. Insert a suitable tool between the bottom of the mirror mount and bracket. Push upward on the tool until the mirror mount is released from the bracket.

INSTALLATION

All vehicles

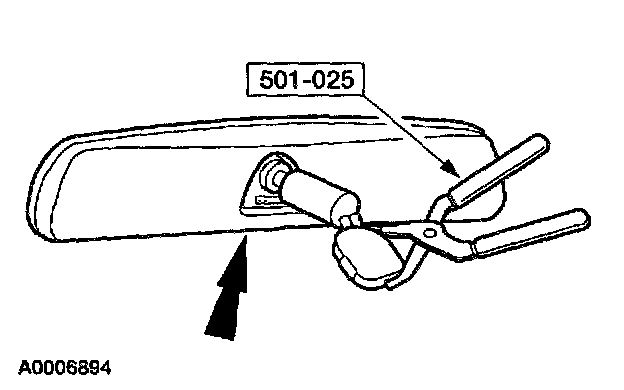

1. Install the interior rear view mirror.
- Position the mirror on the windshield bracket, while using the special tool to fully seat the mirror.

Vehicles with auto-dimming interior rear view mirror







2. Connect the electrical connector.
