Exterior Mirror

EXTERIOR MIRROR

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the front door trim panel.

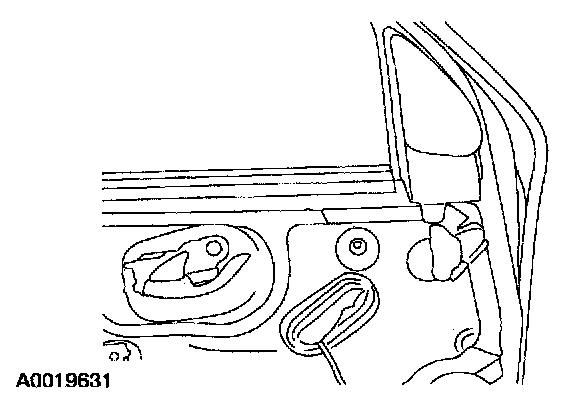

3. Remove the front door sail panel.
- If equipped, disconnect the speaker electrical connector.

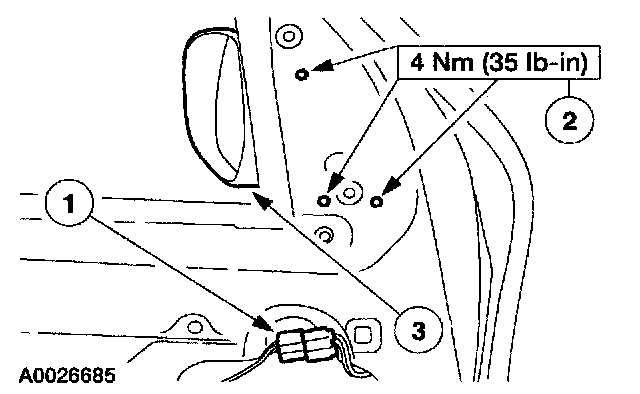

4. Remove the exterior rear view mirror.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Pull the exterior rear view mirror away from the door.
- Feed the power mirror wiring through the opening in the front door.

INSTALLATION
1. To install, reverse the removal procedure.
