PINPOINT TEST I: THE PANIC FEATURE DOES NOT OPERATE CORRECTLY - UNLOCK AND LOCK OPERATE CORRECTLY

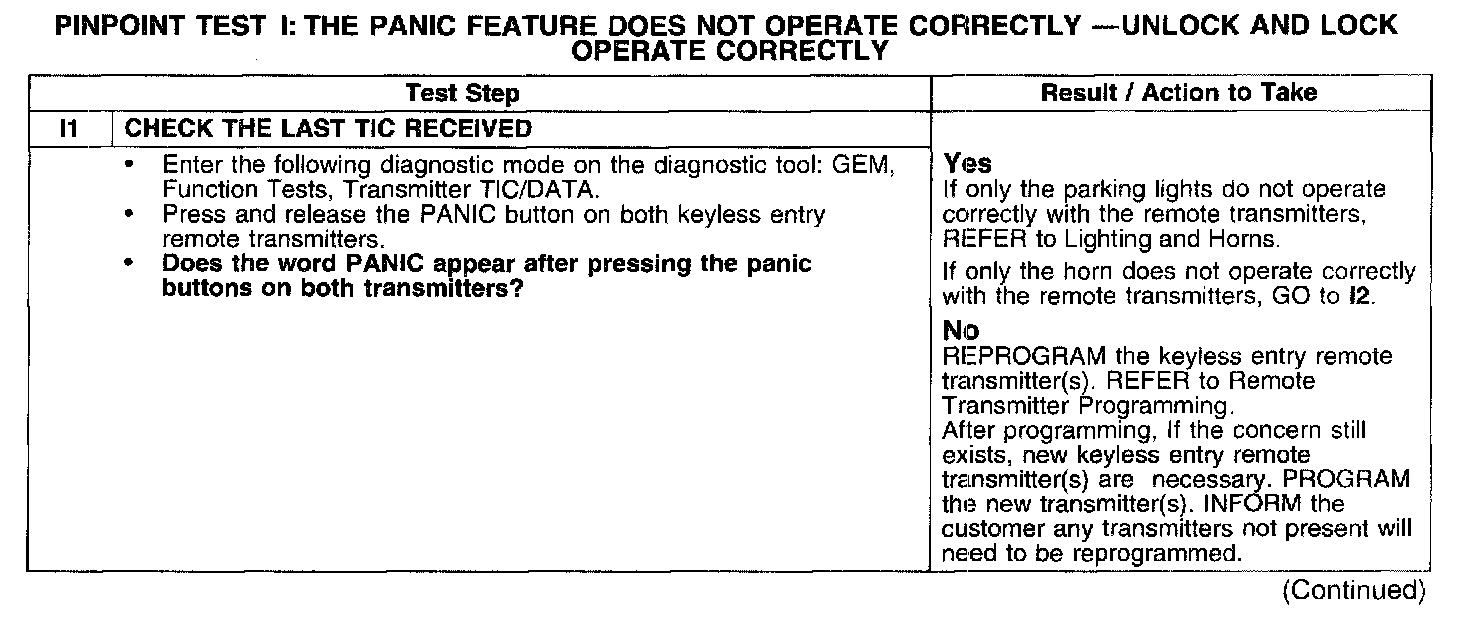

Test I1:

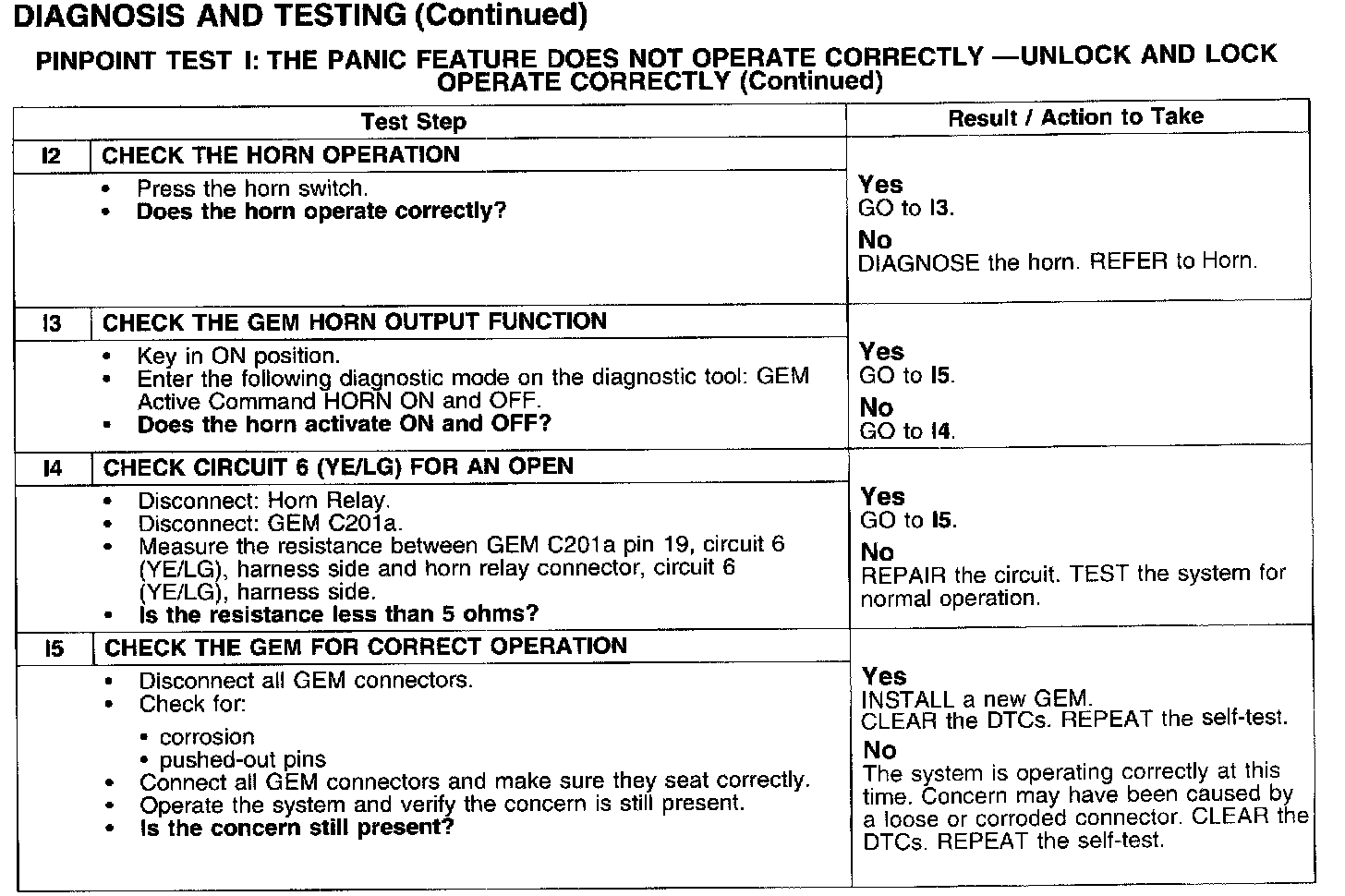

Test I2-I5:
