PINPOINT TEST G: THE DOORS DO NOT LOCK/UNLOCK USING THE KEYLESS ENTRY REMOTE TRANSMITTER

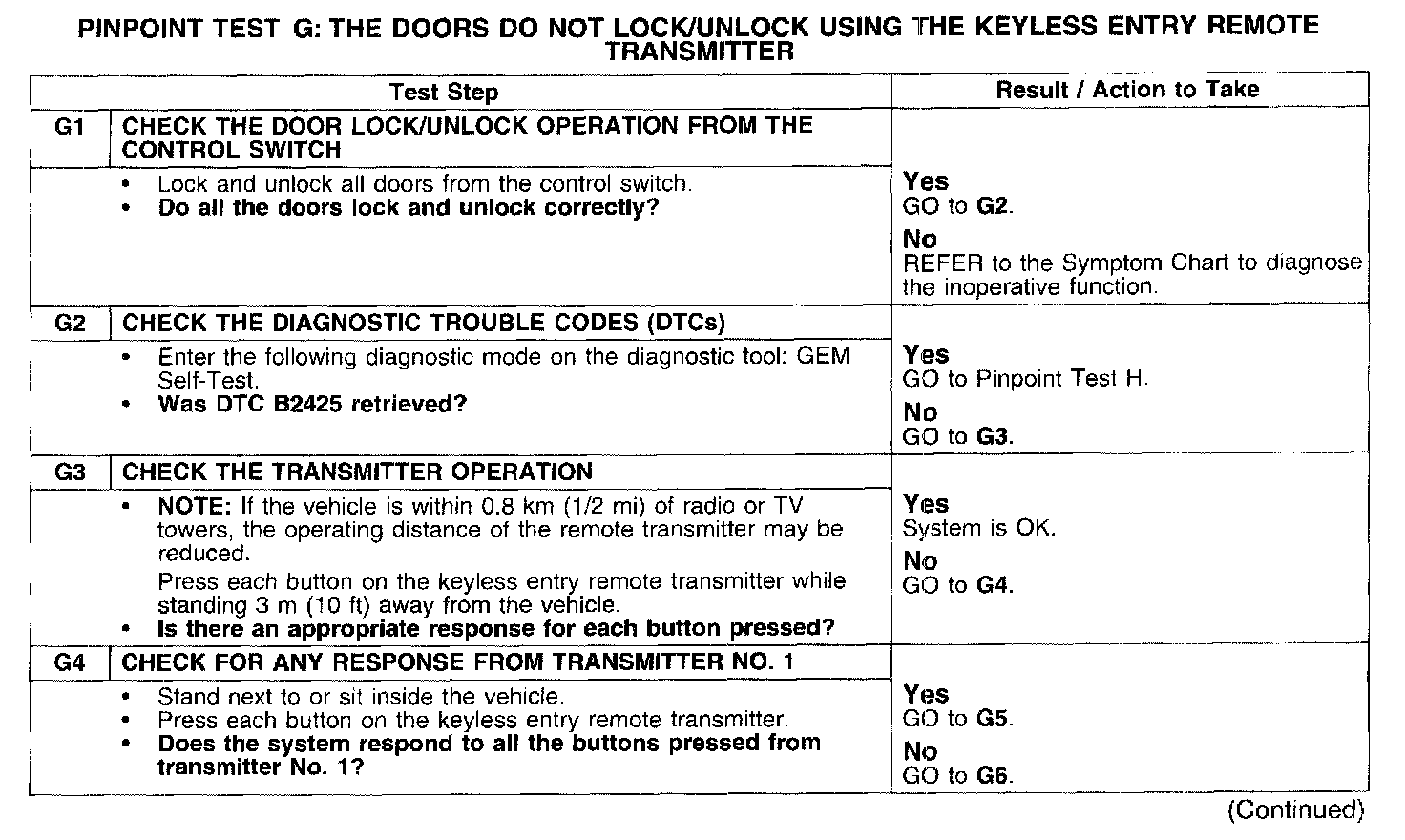

Test G1-G4:

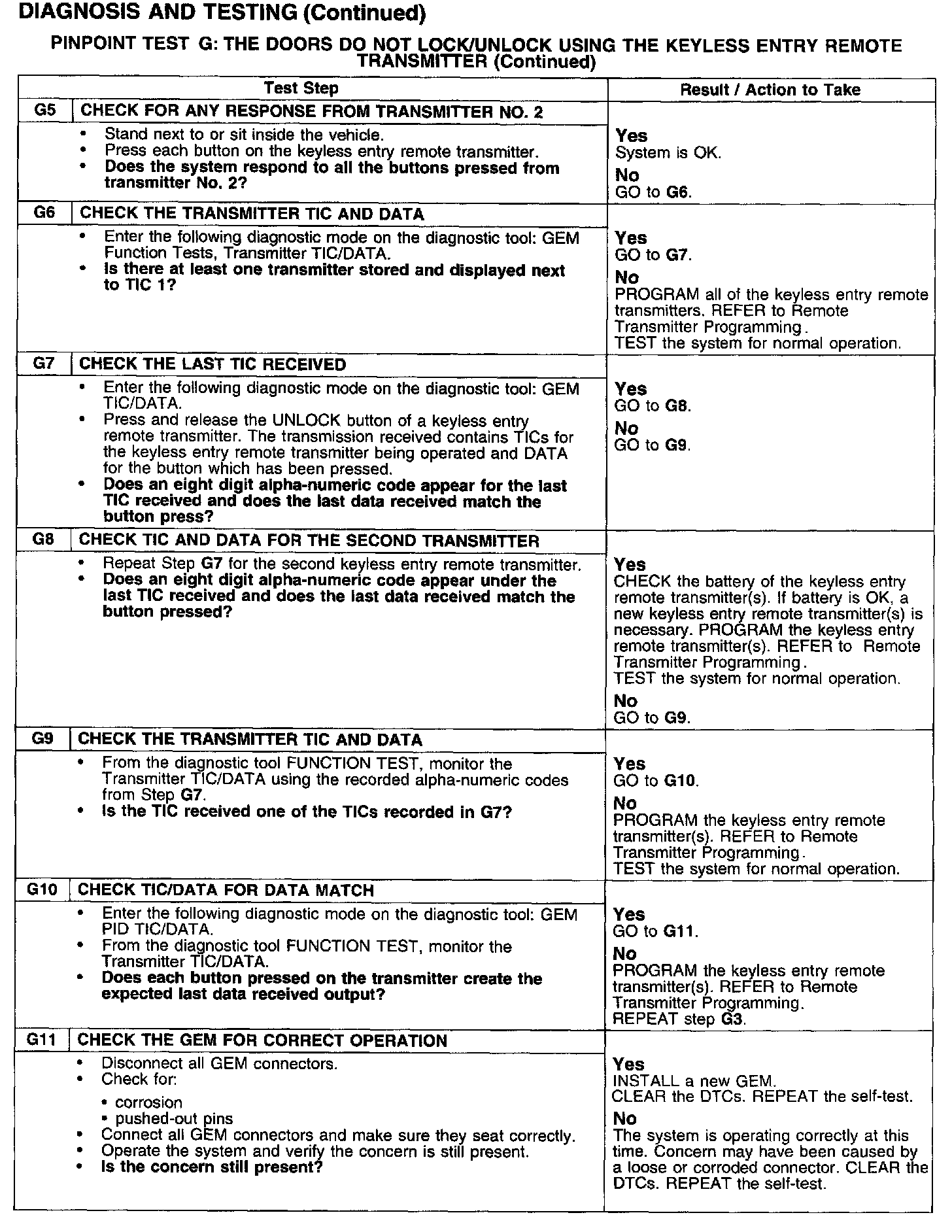

Test G5-G11:
