PINPOINT TEST C: ALL DOOR LOCKS ARE INOPERATIVE FROM A SINGLE LOCK CYLINDER SWITCH

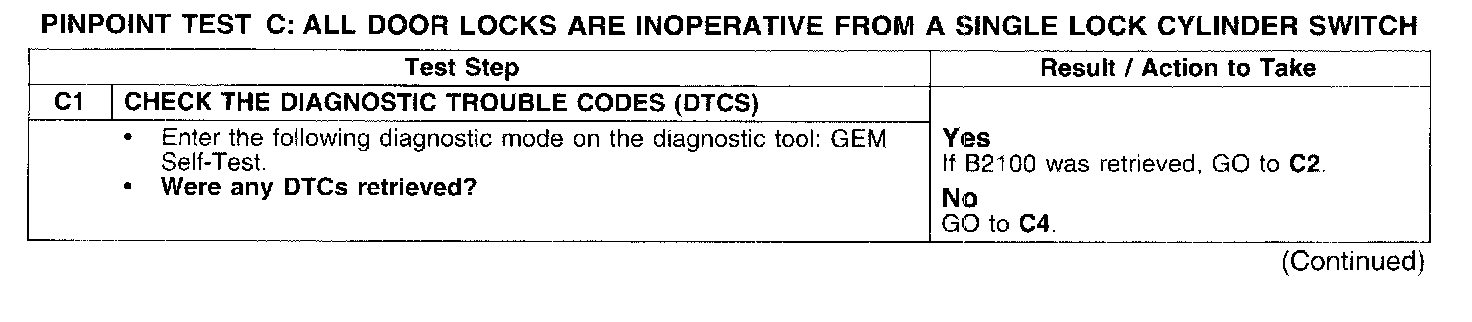

Test C1:

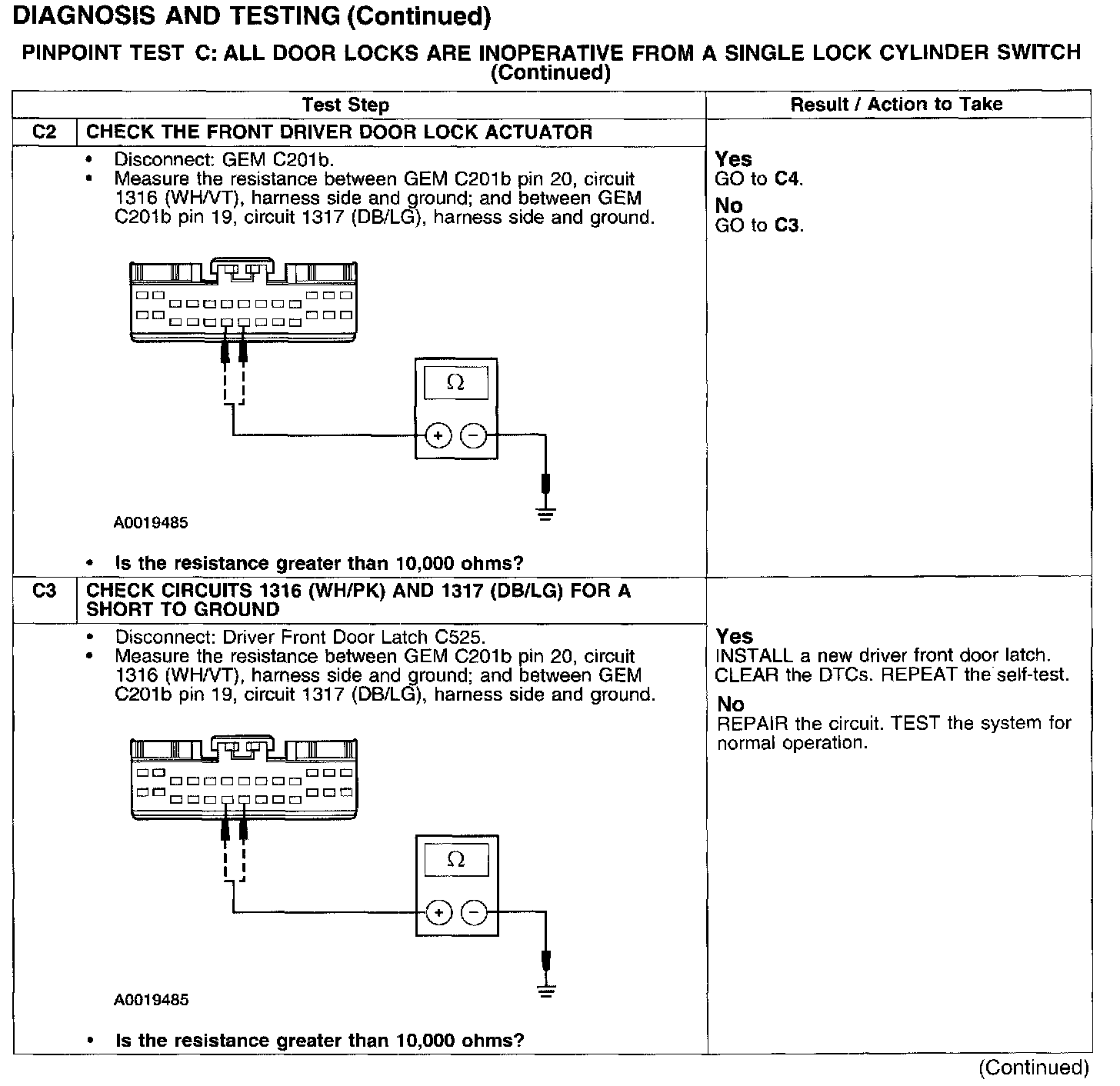

Test C2-C3:

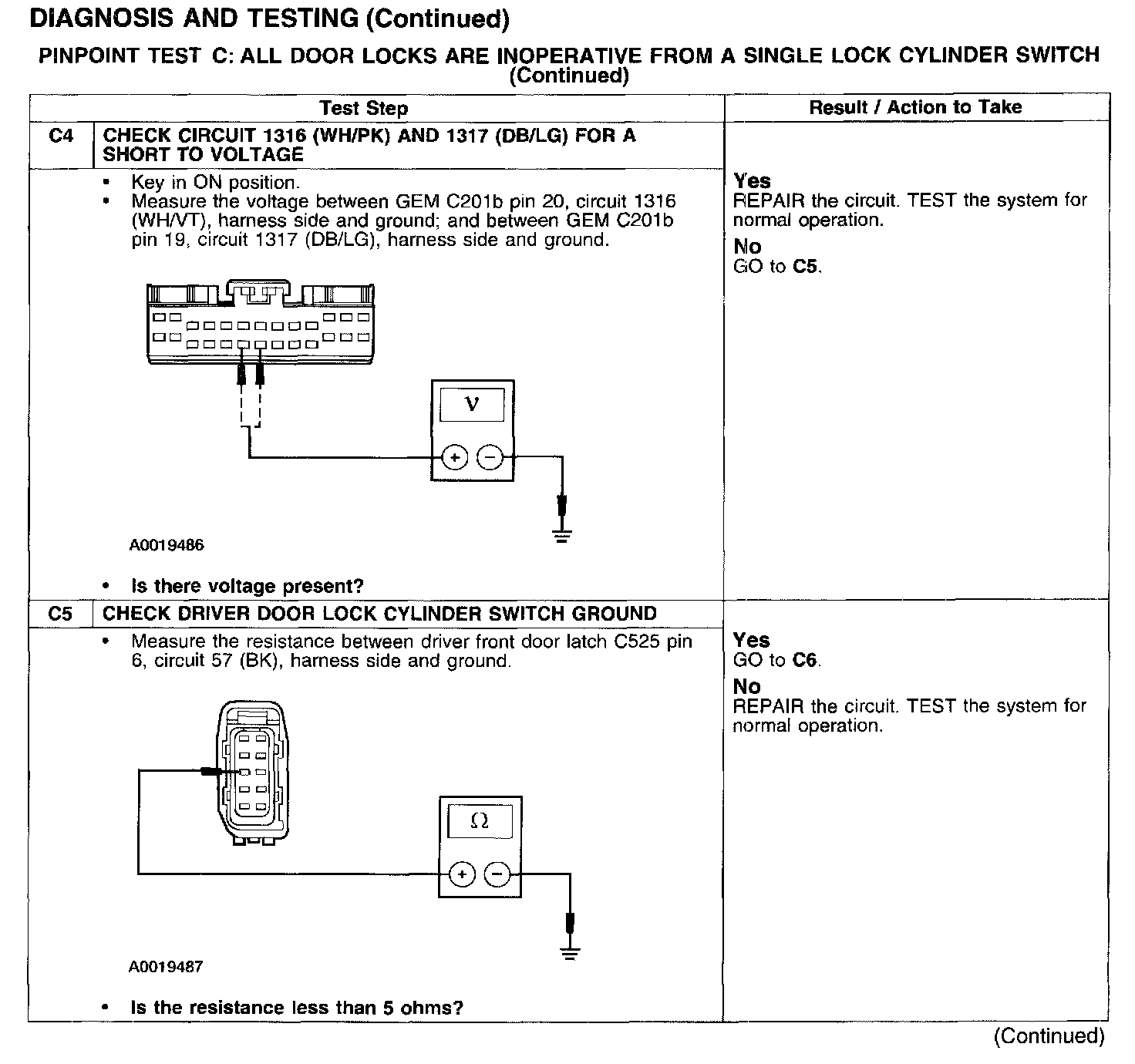

Test C4-C5:

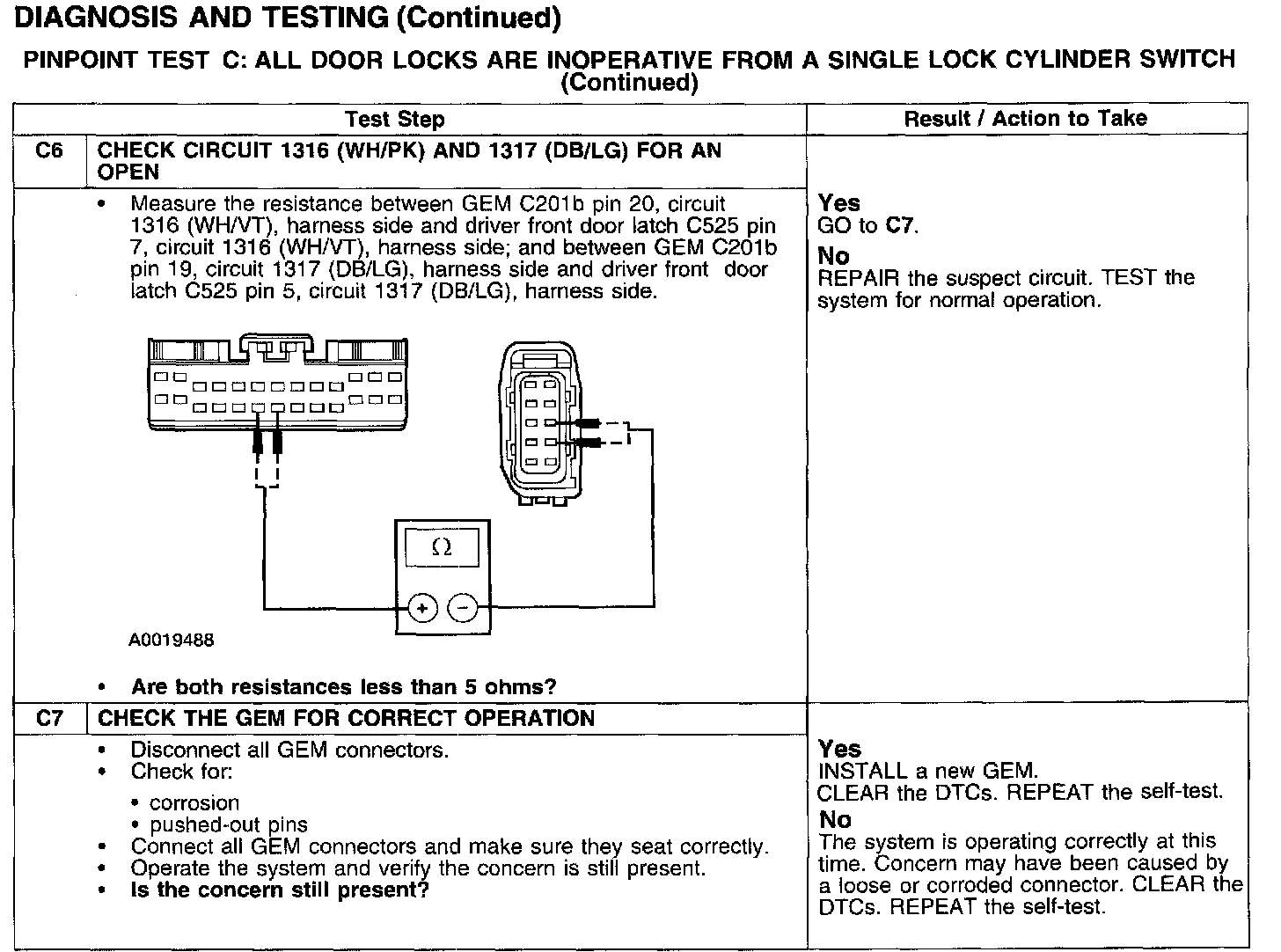

Test C6-C7:
