PINPOINT TEST B: ALL DOOR LOCKS ARE INOPERATIVE FROM ONE SWITCH

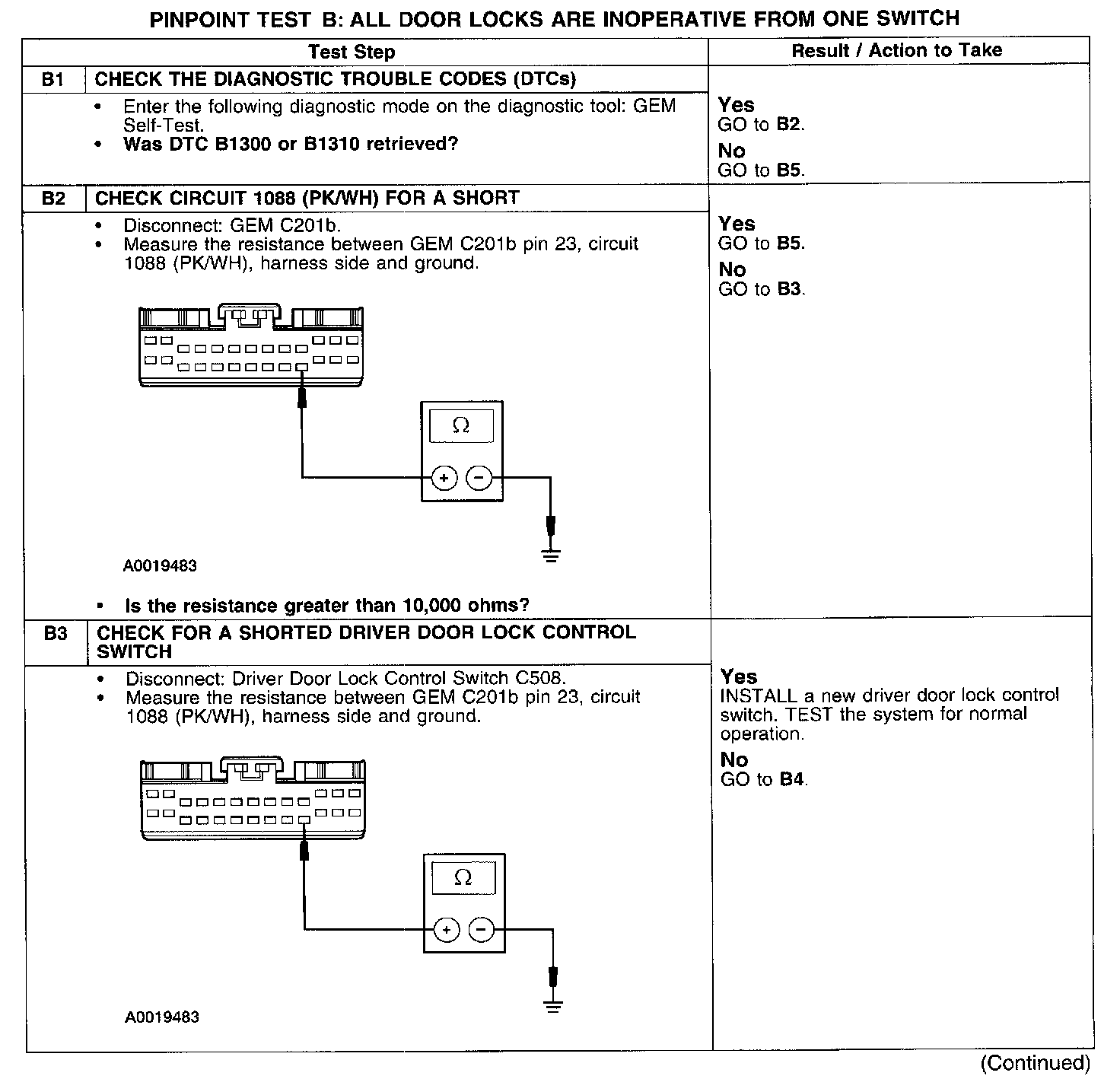

Test B1-B3:

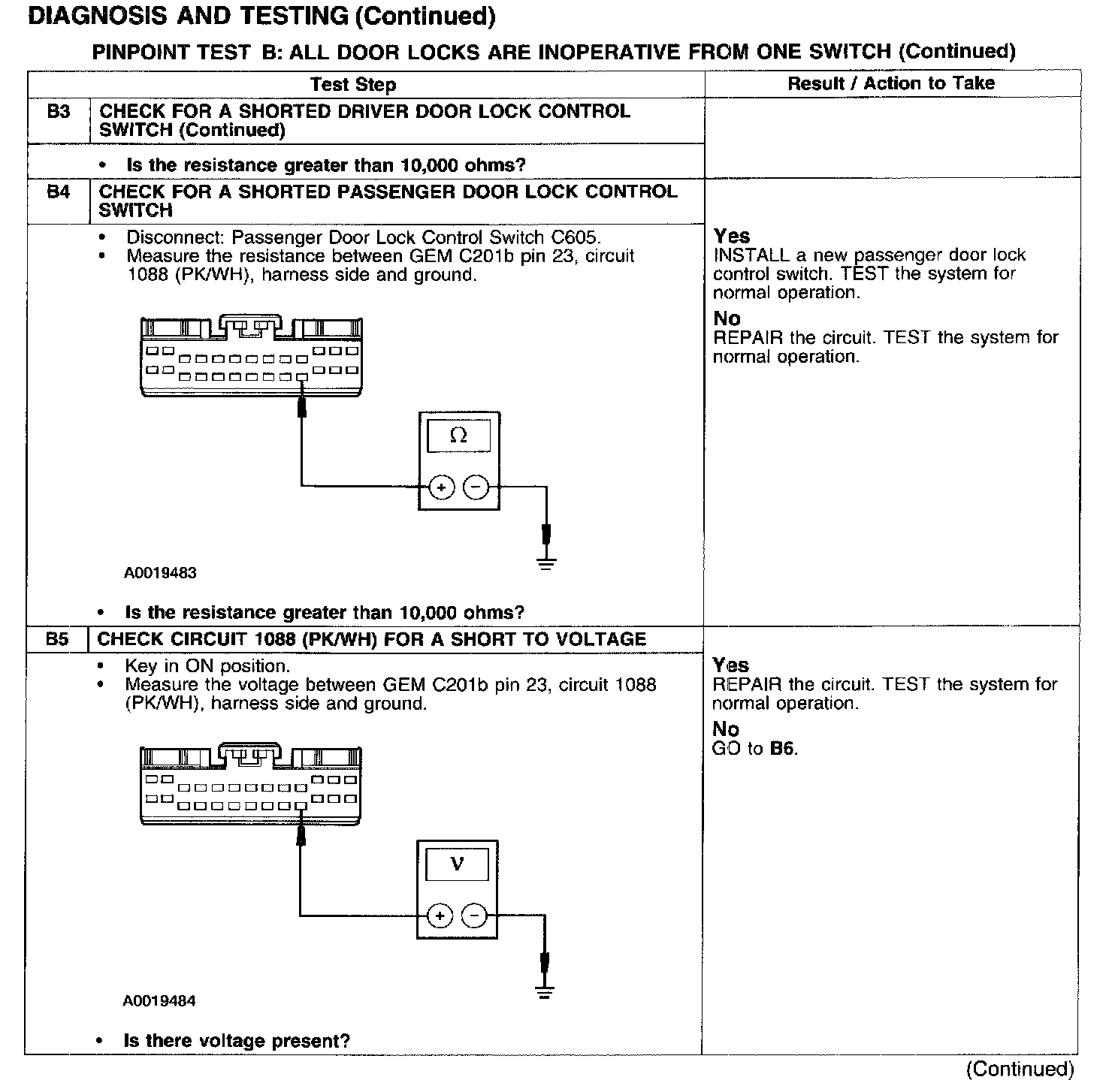

Test B3-B5:

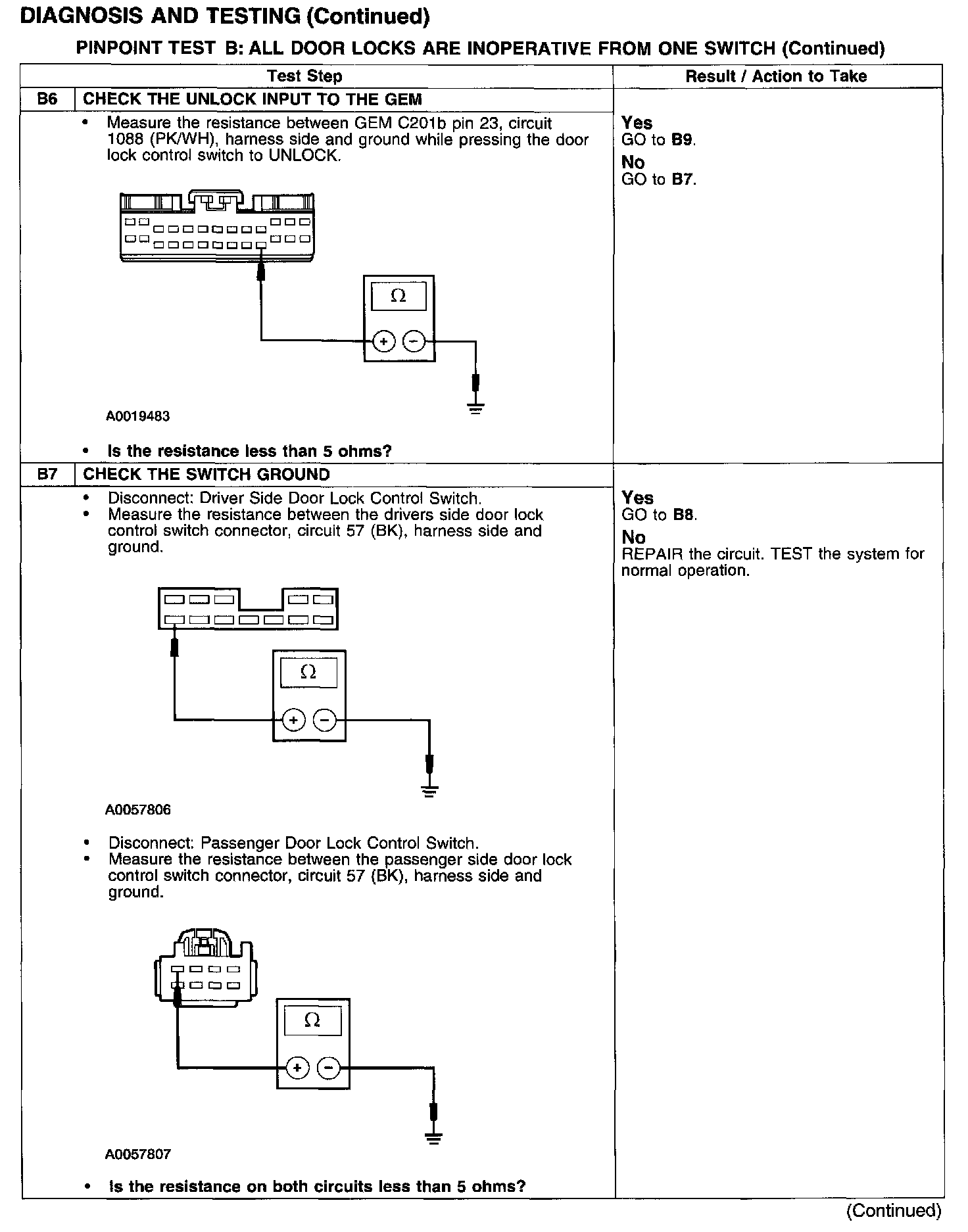

Test B6-B7:
Test B8-B9:
