C-Pillar Trim Panel

C-PILLAR TRIM PANEL

REMOVAL

LH side
1. If equipped with a power point on the LH quarter trim panel, disconnect the battery ground cable.

Both sides

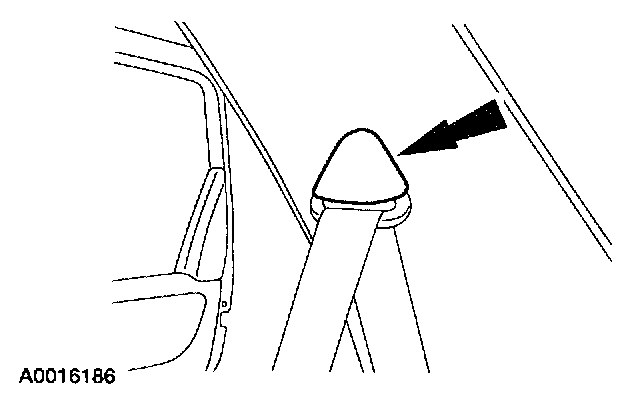

2. NOTE: Inspect the safety belt D-ring cover for damage. If the safety belt D-ring cover does not remain in place, install a new cover.

Remove the safety belt D-ring cover.

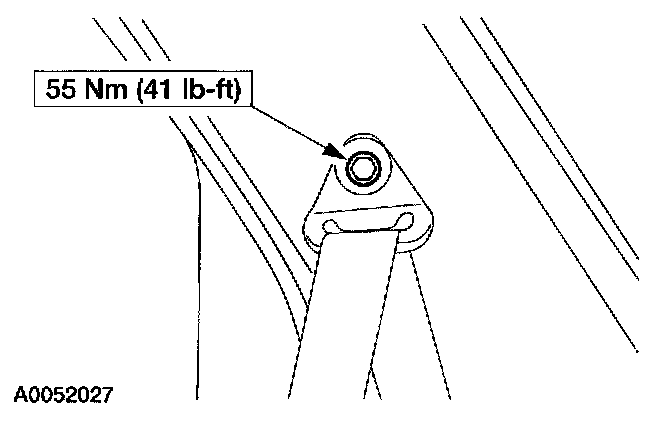

3. Remove the safety belt D-ring bolt.

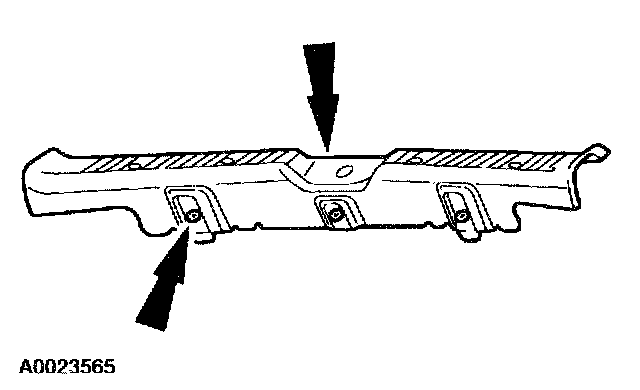

4. Remove the pin-type retainers and the liftgate scuff plate trim panel.
5. Position the liftgate weatherstrip aside.

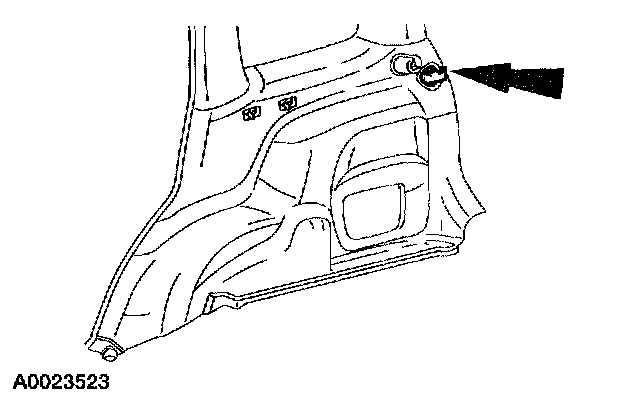

6. if equipped, remove the cargo net hold-down.

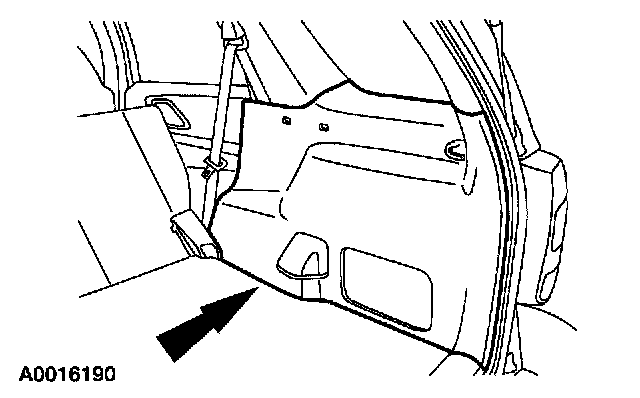

7. Remove the rear quarter trim panel.

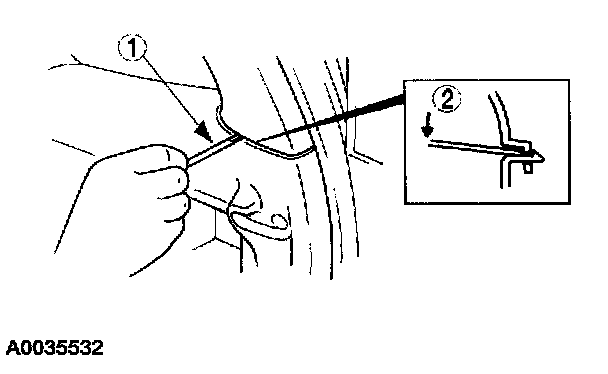

1 Insert a tape-wrapped screwdriver between the D-pillar trim panel and rear quarter trim panel.
2 Push the screwdriver in the direction of the arrow and remove the rear quarter trim panel.







8. If equipped, disconnect the accessory socket connector (left side).

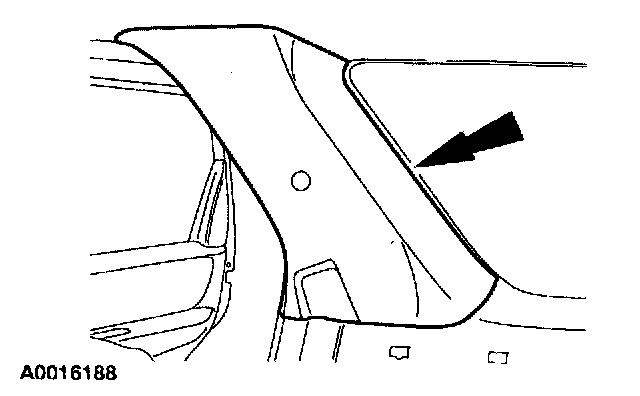

9. Remove the C-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
