B-Pillar Trim Panel

B-PILLAR TRIM PANEL

REMOVAL

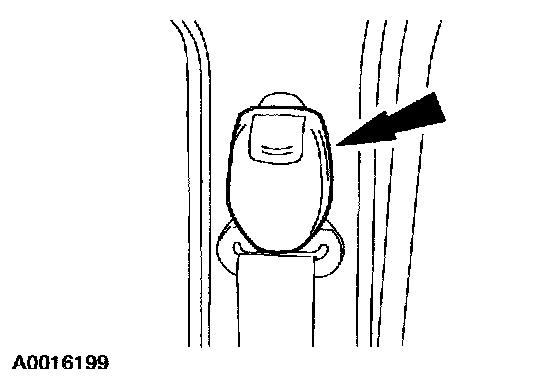

1. NOTE: Inspect the safety belt D-ring cover for damage. If the safety belt D-ring cover does not remain in place, install a new cover.

Remove the safety belt D-ring cover.

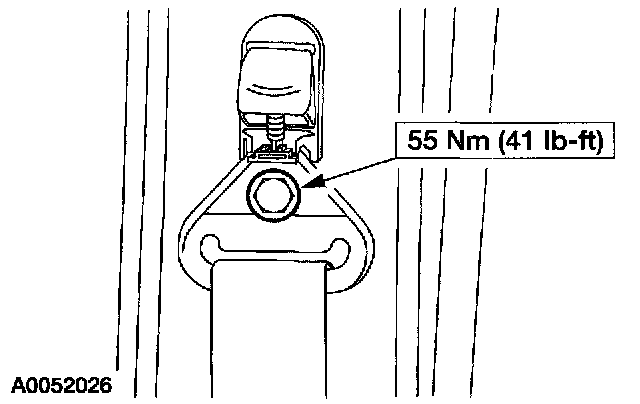

2. Remove the safety belt D-ring bolt.
3. Position the front and rear door weatherstrips aside.

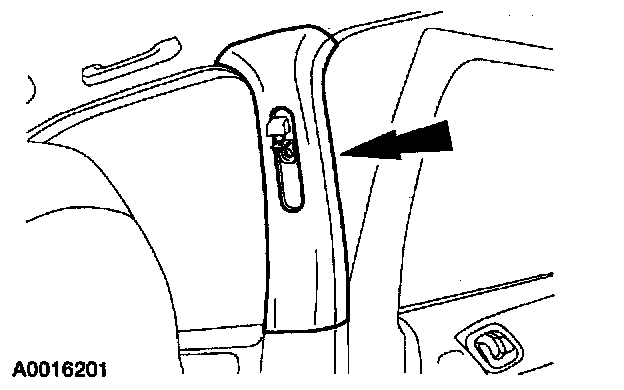

4. Remove the upper B-pillar trim panel.







5. Remove the front door scuff plate trim panel.
1 Remove the pin-type retainers.
2 Remove the front door scuff plate trim panel.







6. Remove the rear door scuff plate trim panel.
1 Remove the pin-type retainers.
2 Remove the rear door scuff plate trim panel.

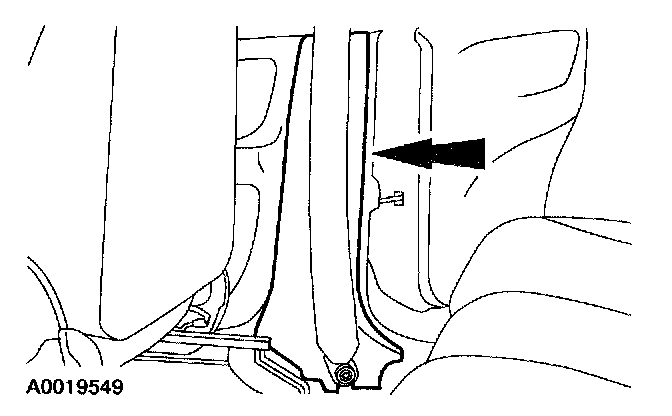

7. Remove the lower B-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
