Headliner: Service and Repair

HEADLINER

REMOVAL

Vehicles with overhead console

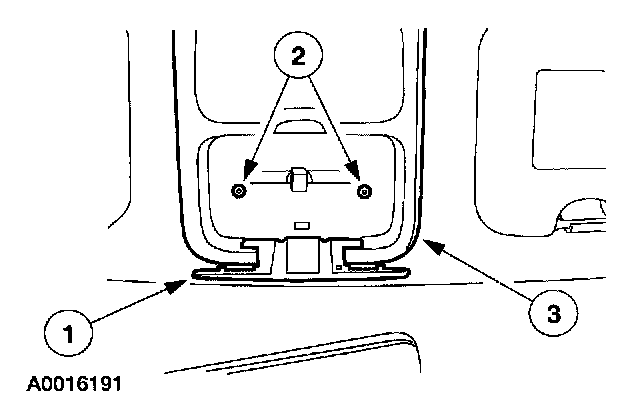

1. Remove the overhead console.
1 Open the front console door.
2 Remove the screws.
3 Remove the overhead console.
- If equipped, disconnect the electrical connector.

All vehicles







2. Remove the two sun visors and two clips.
1 Remove the six screws.
2 Remove the two sun visors and two clips.
- If equipped, disconnect the electrical connector.







3. Remove the eight passenger assist handle covers.







4. Remove the four passenger assist handles.
1 Remove the eight bolts.
2 Remove the four passenger assist handles.







5. Open the four A-pillar passenger assist handle covers.







6. Remove the two A-pillar passenger assist handles.
1 Remove the four bolts.
2 Remove the two A-pillar passenger assist handles.







7. Remove the two windshield side garnish mouldings.
8. If equipped, remove the roof opening panel moulding.







9. NOTE: Inspect the safety belt D-ring cover for damage. If the safety belt D-Ring cover does not remain in place, install a new cover.

Remove the two safety belt D-ring covers.







10. Remove the two safety belt D-ring bolts.
11. Position the front and rear door weatherstrips aside.







12. Remove the upper B-pillar trim panels.

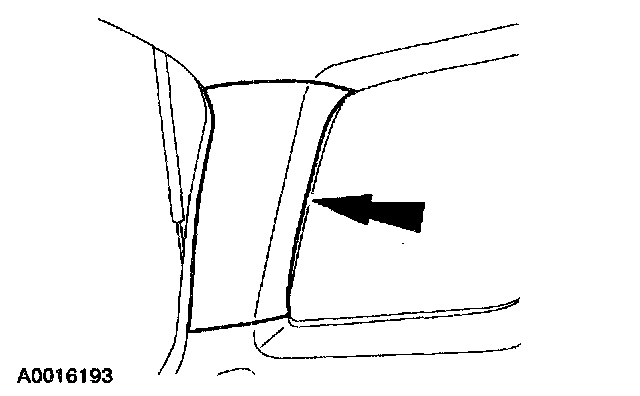

13. Remove the two C-pillar trim panels.







14. Remove the two D-pillar trim panels.







15. Remove the front interior lamp lens.







16. Remove the front interior lamp.
1 Remove the screws.
2 Remove the front interior lamp.
- Disconnect the electrical connector.

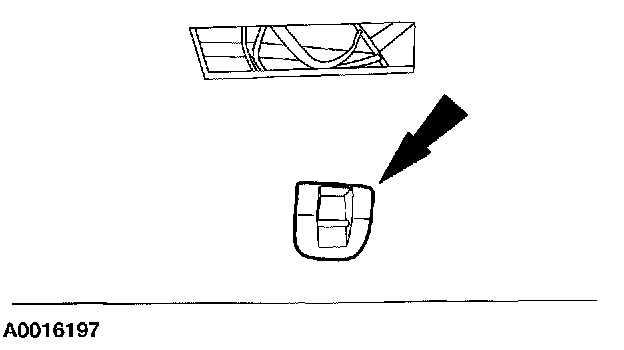

17. Remove the rear interior lamp.
- Disconnect the electrical connector.

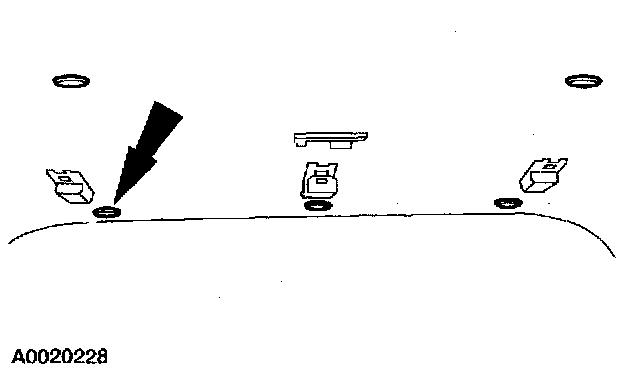

18. Remove the five pin-type retainers.







19. If equipped, remove the three child seat tether anchor covers.







20. If equipped, remove the three bolts and the child seat tether anchors.
21. Remove the headliner.

INSTALLATION
1. To install, reverse the removal procedure.
