Front Fender Liner: Service and Repair

FENDER SPLASH SHIELD

Removal and Installation
1. Remove the front wheel and tire assembly.







2. Remove the fender splash shield pin-type retainers.







3. Remove the fender splash shield screws.







4. Remove the fender splash shield.

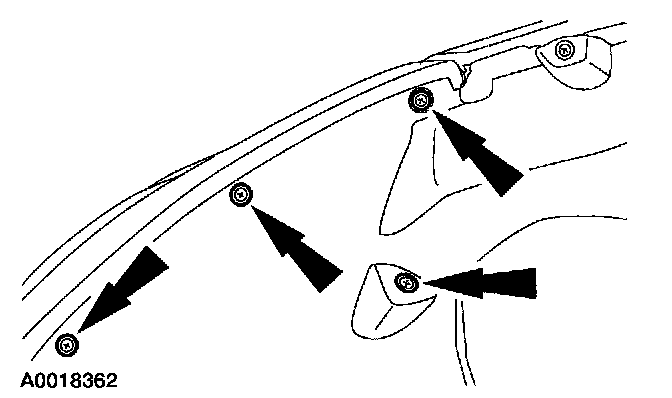

1 Remove the bolts.
2 Remove the fender splash shield.

5. To install, reverse the removal procedure.
