Trunk / Liftgate Solenoid: Service and Repair

LIFTGATE LATCH ACTUATOR

REMOVAL
1. Remove the liftgate latch remote control.

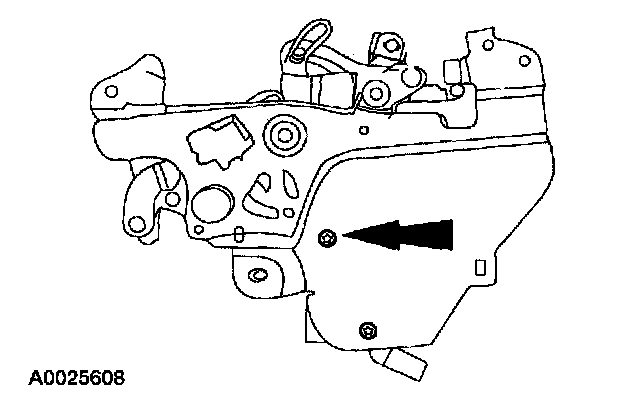

2. Remove the screws and the liftgate latch actuator.

INSTALLATION
1. To install, reverse the removal procedure.
